MBSS Site Summary for: LIBE-102-S-2003

Site Photos

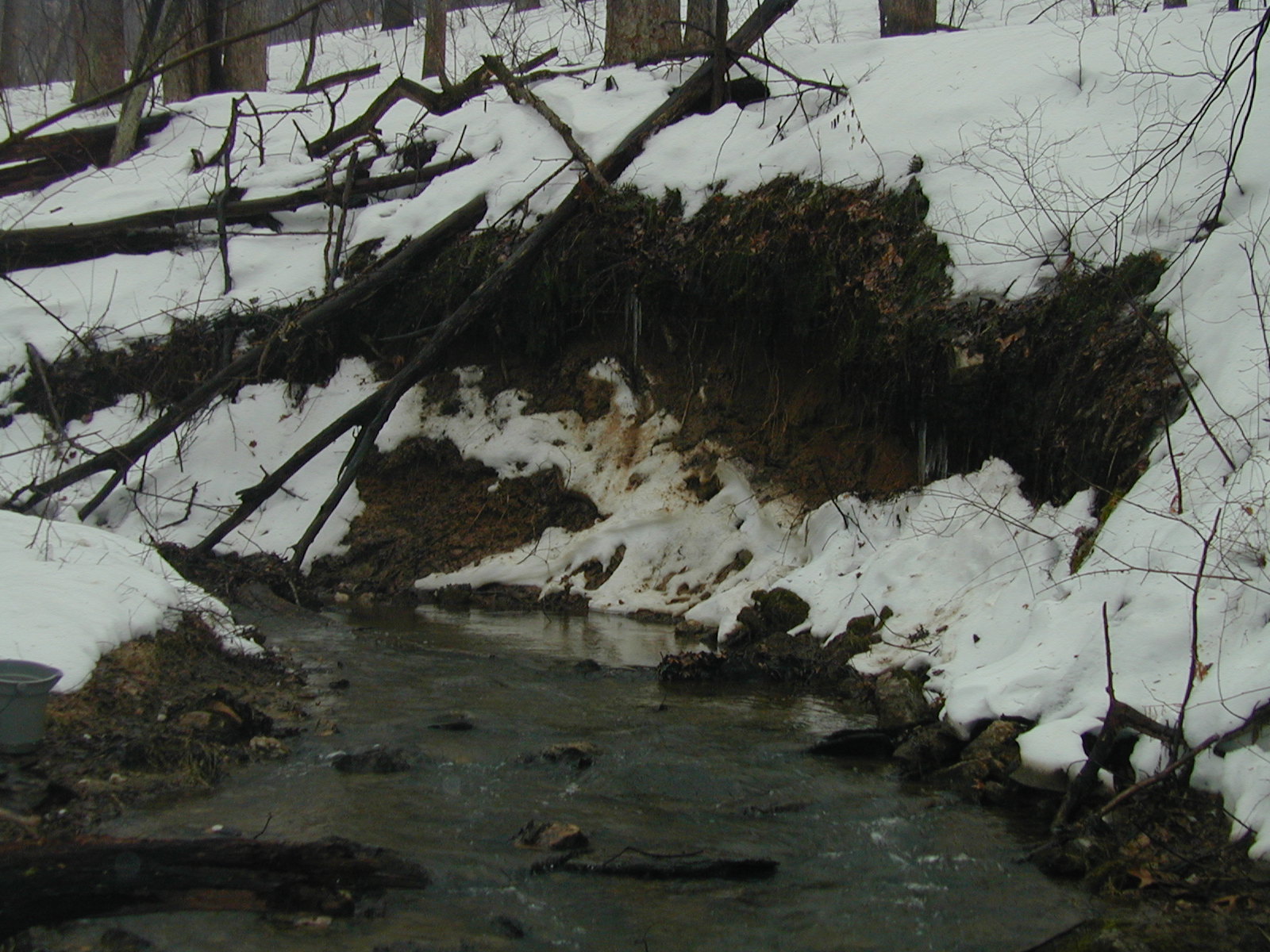

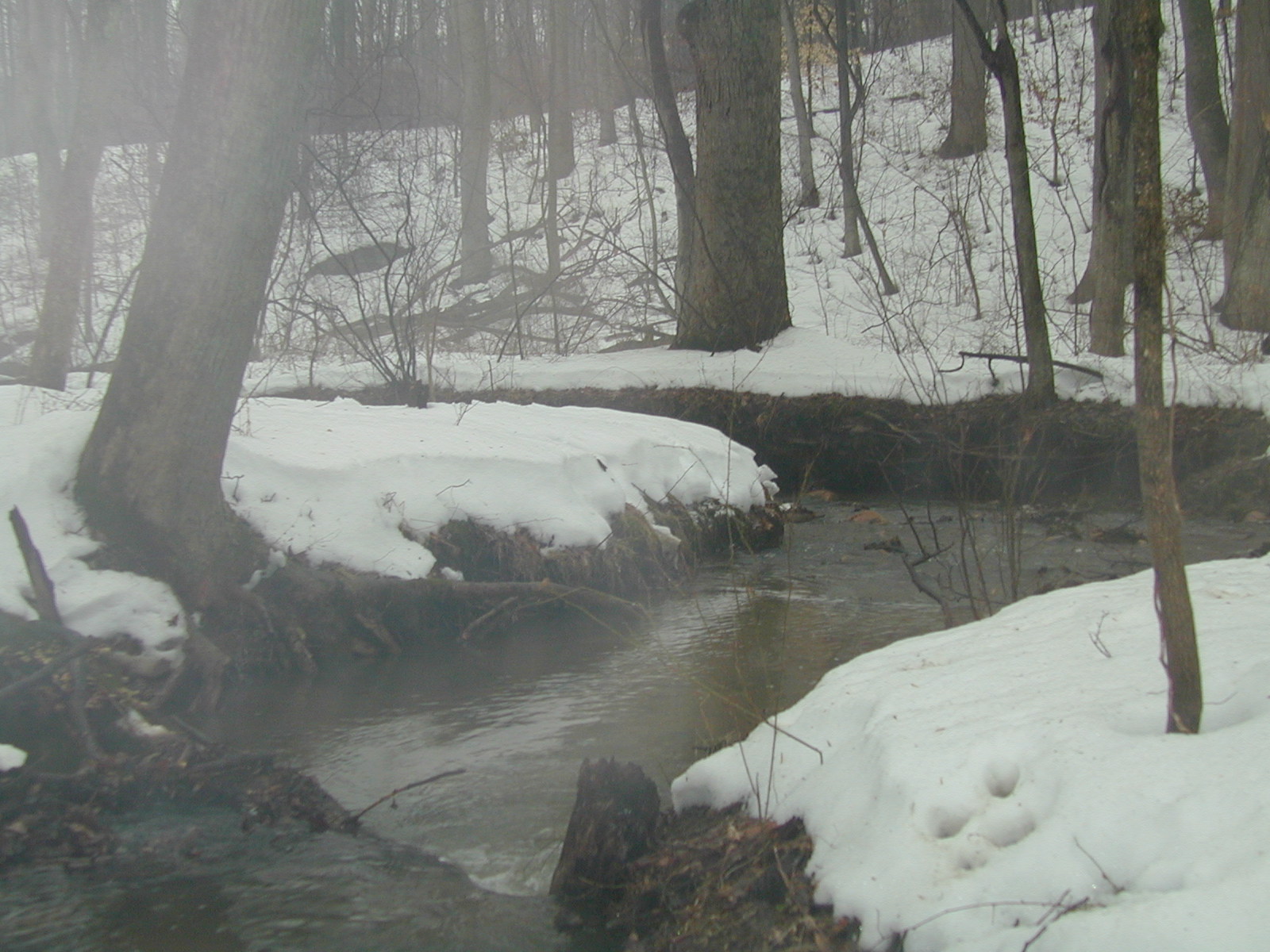

Field photo showing stream conditions at site LIBE-102-S-2003-641 (Opens in a new window) Field photo showing stream conditions at site LIBE-102-S-2003-642 (Opens in a new window) Field photo showing stream conditions at site LIBE-102-S-2003-870 (Opens in a new window) Field photo showing stream conditions at site LIBE-102-S-2003-871 (Opens in a new window)

Located on TIMBER RUN in the Liberty Reservoir watershed, 8-digit code: 02130907.
This stream was visited in the spring on 3/6/2003 and again in the summer on 7/7/2003.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Fair - 3.7 / 5.0
Benthic IBI Good - 4.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 590 acres A stream flowing through a densely forested area. An example of a forested stream.
Urban Land Use 0.9 %
Agricultural Land Use 28.5 %
Forested Land Use 70.3 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 17/20 (Optimal)
Epifaunal Substrate 16/20 (Optimal)
Velocity/Depth Diversity 10/20 (Marginal)
Pool Quality
Pool Extent = 28 meters 		10/20 (Marginal)
Riffle Quality
Riffle Extent = 64 meters 		15/20 (Suboptimal)
Shading 96 %
Embeddedness 20 %


Stream Water Quality:
Water temperature 16.5 ° C
Dissolved oxygen (DO) 9.4 mg/L
pH (lab) 6.55
Conductivity 101 µmho/cm
Alkalinity
(acid neutralizing capacity) 		191.6 µeq/L
Dissolved organic carbon (DOC) 2.4 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 4 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blue Ridge Sculpin 51
Blacknose Dace 35
Creek Chub 16
Rosyside Dace 8
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Eastern American Toad
Eastern Red-Backed Salamander
Northern Green Frog
Northern Ring-Necked Snake
Northern Two-Lined Salamander

Crayfish:
No crayfish noted.

Exotic Plants:
Japanese Honeysuckle
Japanese Stiltgrass
Mile-A-Minute
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Prosimulium Black Fly 28
Ephemerella Sulphur Mayfly 14
Sympotthastia Non-Biting Midges 13
Prostoia Spring Stonefly 6
Stenonema Flatheaded Mayfly 6
Neophylax Caddisfly 5
Parametriocnemus Non-Biting Midges 5
Nemouridae Nemourid Stonefly 3
Diplectrona Net-Spinning Caddisfly 3
Diamesa Bloodworm 3
Tipula Crane Fly 3
Stenacron Mayfly 2
Nigronia Megaloptera (Dark Fishfly) 2
Planariidae Flatworm 2
Rhyacophila Free-Living Caddisfly 2
Eukiefferiella Non-Biting Midges 2
Antocha Crane Fly 2
Polycentropus Tube Maker Caddisfly 1
Lumbriculidae Worm 1
Tanytarsus Non-Biting Midges 1
Leptophlebiidae Pronggilled Mayfly 1
Optioservus Riffle Beetle 1
Nanocladius Non-Biting Midges 1
Orthocladius Non-Biting Midges 1
Paraphaenocladius Non-Biting Midges 1
Corynoneura Non-Biting Midges 1
Lype Net Tube Caddisfly 1
Dicranota Hairy-Eyed Cranefly 1
Heleniella European Non-Biting Midge 1
Gomphidae Clubtail Dragonfly 1
Limonia 1
Enchytraeidae Aquatic Worm 1
Anchytarsus Beetle 1
Ceratopogon Biting Midge 1
Probezzia Biting Midges 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
