MBSS Site Summary for: LIBE-102-S-2014

Site Photos

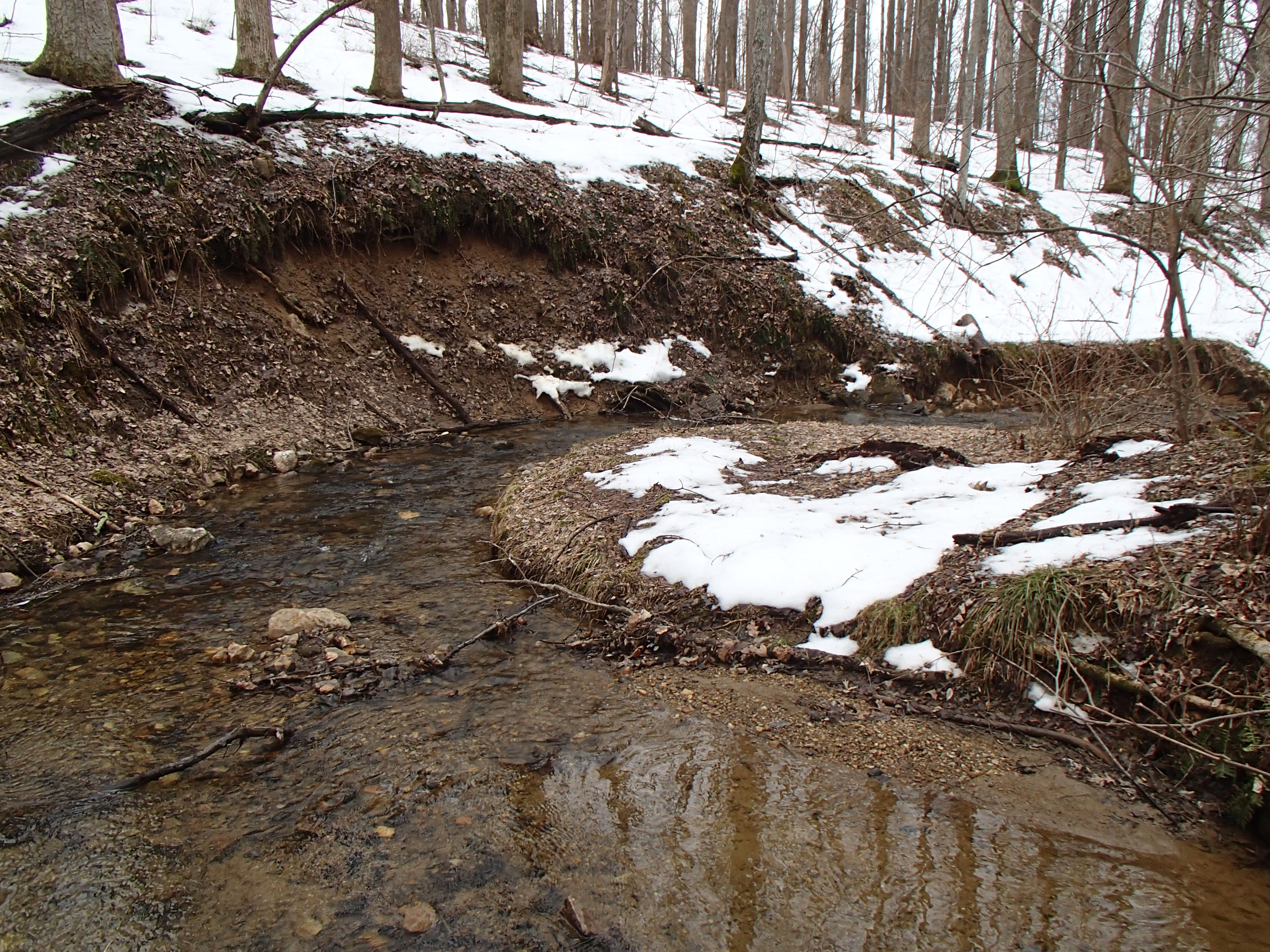

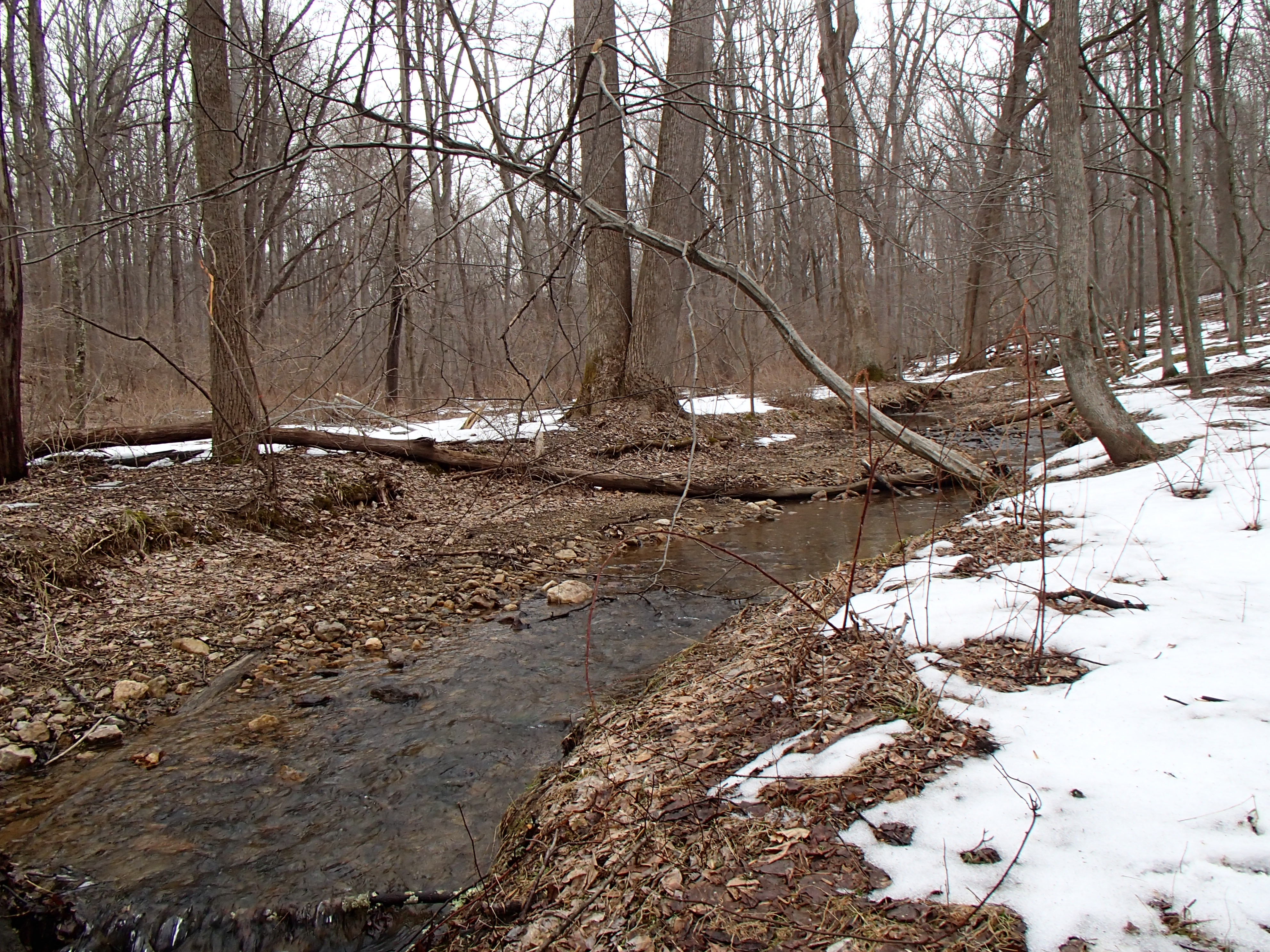

Field photo showing stream conditions at site LIBE-102-S-2014-1 (Opens in a new window) Field photo showing stream conditions at site LIBE-102-S-2014-2 (Opens in a new window)

Located on TIMBER RUN in the Liberty Reservoir watershed, 8-digit code: 02130907.
This stream was visited in the spring on 3/11/2014 and again in the summer on 6/3/2014.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 4.3 / 5.0
Benthic IBI Good - 4.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 584 acres A stream flowing through a densely forested area. An example of a forested stream.
Urban Land Use 7 %
Agricultural Land Use 10.8 %
Forested Land Use 77.1 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 16/20 (Optimal)
Epifaunal Substrate 17/20 (Optimal)
Velocity/Depth Diversity 11/20 (Suboptimal)
Pool Quality
Pool Extent = 35 meters 		16/20 (Optimal)
Riffle Quality
Riffle Extent = 49 meters 		14/20 (Suboptimal)
Shading 85 %
Embeddedness 30 %
Several measures of instream habitat were considered 'Optimal' at this location.


Stream Water Quality:
pH (lab) 6.99
Alkalinity
(acid neutralizing capacity) 		262.3 µeq/L
Dissolved organic carbon (DOC) 0.9414 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 4 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blue Ridge Sculpin 167
Rosyside Dace 120
Blacknose Dace 83
Creek Chub 26
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
No amphibians and reptiles noted.

Crayfish:
Cambarus bartonii bartonii
Orconectes virilis

Exotic Plants:
Burning Bush
Garlic Mustard
Japanese Barberry
Japanese Honeysuckle
Japanese Stiltgrass
Multiflora Rose
Oriental Bittersweet
Wavyleaf Basketgrass
Wineberry


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Prosimulium Black Fly 34
Ephemerella Sulphur Mayfly 24
Neophylax Caddisfly 23
Rheotanytarsus Non-Biting Midges 8
Cheumatopsyche Net-Spinning Caddisfly 6
Hydropsyche Net-Spinning Caddisfly 4
Eukiefferiella Non-Biting Midges 4
Thienemannimyia Group Non-Biting Midges 2
Optioservus Riffle Beetle 2
Prostoia Spring Stonefly 2
Ectopria Water Penny Beetle 1
Oulimnius Riffle Beetle 1
Perlodidae Perlodid Stonefly 1
Micropsectra Non-Biting Midges 1
Orthocladius Non-Biting Midges 1
Parametriocnemus Non-Biting Midges 1
Perlidae Common Stonefly 1
Hexatoma Crane Fly 1
Tipula Crane Fly 1
Maccaffertium March Brown And Cahill Mayfly 1
Nigronia Megaloptera (Dark Fishfly) 1
Orthocladiinae Midge 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
