MBSS Site Summary for: LIBE-102-S-2016

Site Photos

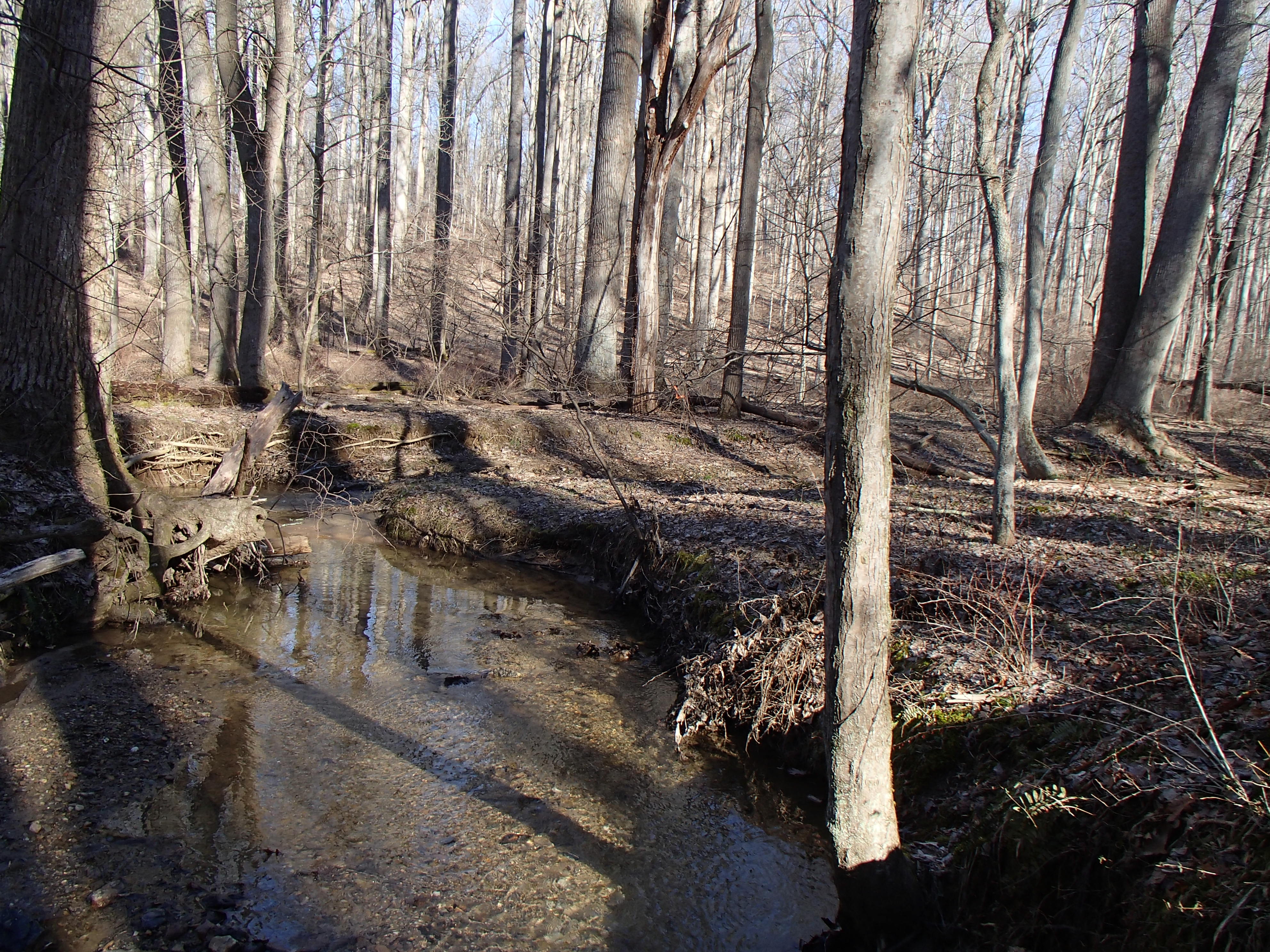

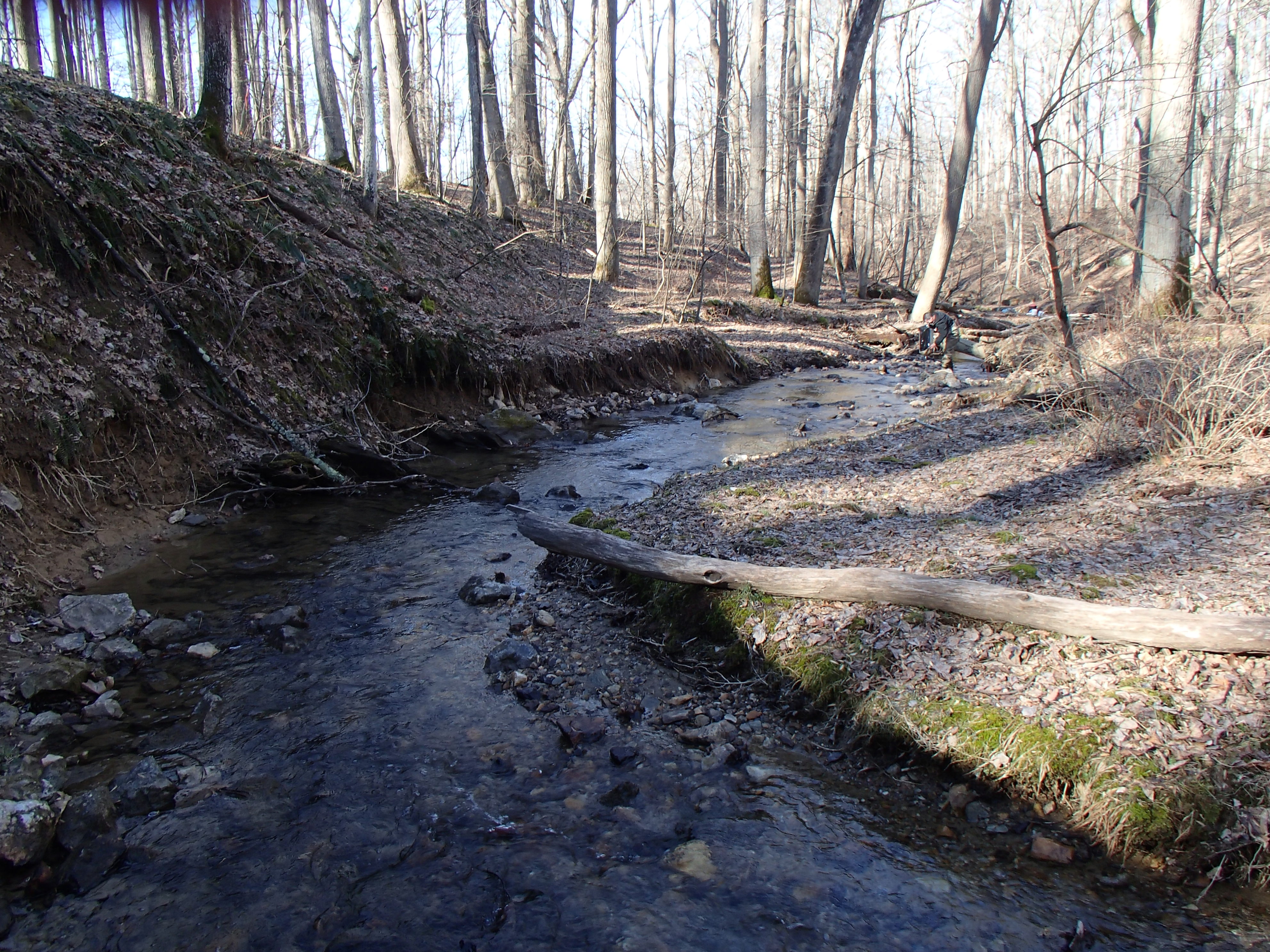

Field photo showing stream conditions at site LIBE-102-S-2016_Midpoint looking downstream (Opens in a new window) Field photo showing stream conditions at site LIBE-102-S-2016_Midpoint looking upstream (Opens in a new window)

Located on Timber Run in the Liberty Reservoir watershed, 8-digit code: 02130907.
This stream was visited in the spring on 3/1/2016 and again in the summer on 6/6/2016.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 4.3 / 5.0
Benthic IBI Good - 4.3 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 584 acres A stream flowing through a densely forested area. An example of a forested stream.
Urban Land Use 7 %
Agricultural Land Use 10.8 %
Forested Land Use 77.1 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 17/20 (Optimal)
Epifaunal Substrate 18/20 (Optimal)
Velocity/Depth Diversity 14/20 (Suboptimal)
Pool Quality
Pool Extent = 34 meters 		12/20 (Suboptimal)
Riffle Quality
Riffle Extent = 60 meters 		15/20 (Suboptimal)
Shading 80 %
Embeddedness 25 %


Stream Water Quality:
pH (lab) 6.85
Alkalinity
(acid neutralizing capacity) 		275.4 µeq/L
Dissolved organic carbon (DOC) 0.819 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 4 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blue Ridge Sculpin 147
Blacknose Dace 46
Rosyside Dace 39
Creek Chub 8
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
No amphibians and reptiles noted.

Crayfish:
No crayfish noted.

Exotic Plants:
Burning Bush
Garlic Mustard
Japanese Barberry
Japanese Stiltgrass
Mile-A-Minute
Multiflora Rose
Oriental Bittersweet
Wavyleaf Basketgrass
Wineberry


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Ephemerella Sulphur Mayfly 31
Cheumatopsyche Net-Spinning Caddisfly 10
Amphinemura Spring Stonefly 10
Micropsectra Non-Biting Midges 9
Orthocladius Non-Biting Midges 7
Neophylax Caddisfly 7
Parametriocnemus Non-Biting Midges 5
Hydropsyche Net-Spinning Caddisfly 5
Brillia Non-Biting Midges 5
Baetis Blue-Winged Olive Mayfly 5
Chloroperlidae Green Stonefly 4
Neoplasta 3
Rheotanytarsus Non-Biting Midges 3
Thienemannimyia Group Non-Biting Midges 2
Optioservus Riffle Beetle 2
Tipula Crane Fly 2
Acroneuria Golden Stoneflies 2
Dicranota Hairy-Eyed Cranefly 2
Anchytarsus Beetle 2
Helichus Beetle 2
Prosimulium Black Fly 2
Simulium Black Fly 1
Perlidae Common Stonefly 1
Antocha Crane Fly 1
Hexatoma Crane Fly 1
Maccaffertium March Brown And Cahill Mayfly 1
Diphetor Mayfly 1
Dolophilodes Medium Evening Sedge Caddisfly 1
Nigronia Megaloptera (Dark Fishfly) 1
Stygobromus Amphipod 1
Oulimnius Riffle Beetle 1
Baetidae Small Minnow Mayfly 1
Perlodidae Perlodid Stonefly 1
Thienemanniella Non-Biting Midges 1
Diplectrona Net-Spinning Caddisfly 1
Paraphaenocladius Non-Biting Midges 1
Microtendipes Non-Biting Midges 1
Acerpenna Tiny Blue-Winged Olive Mayflies 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
