MBSS Site Summary for: LIBE-102-S-2017

Site Photos

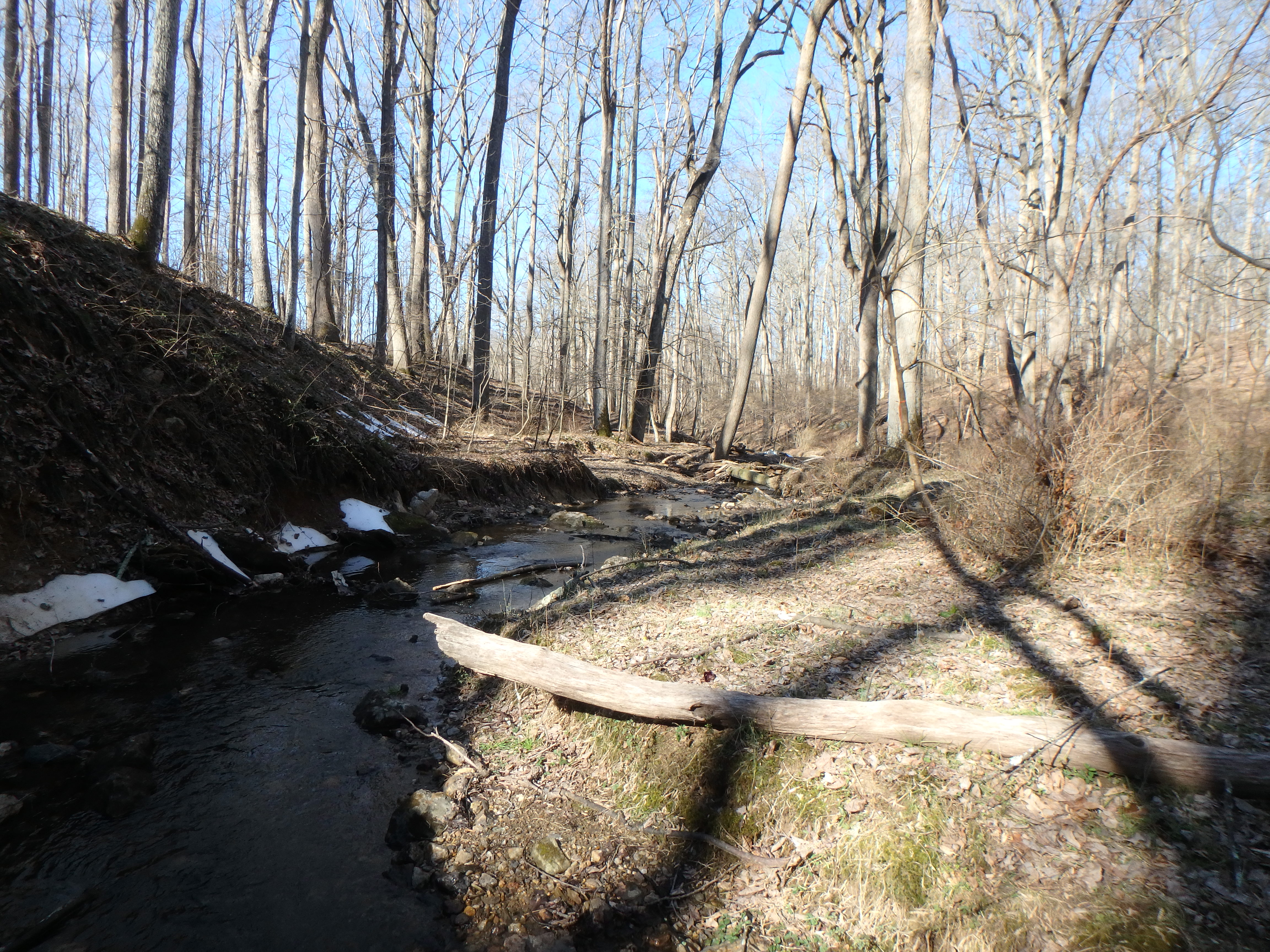

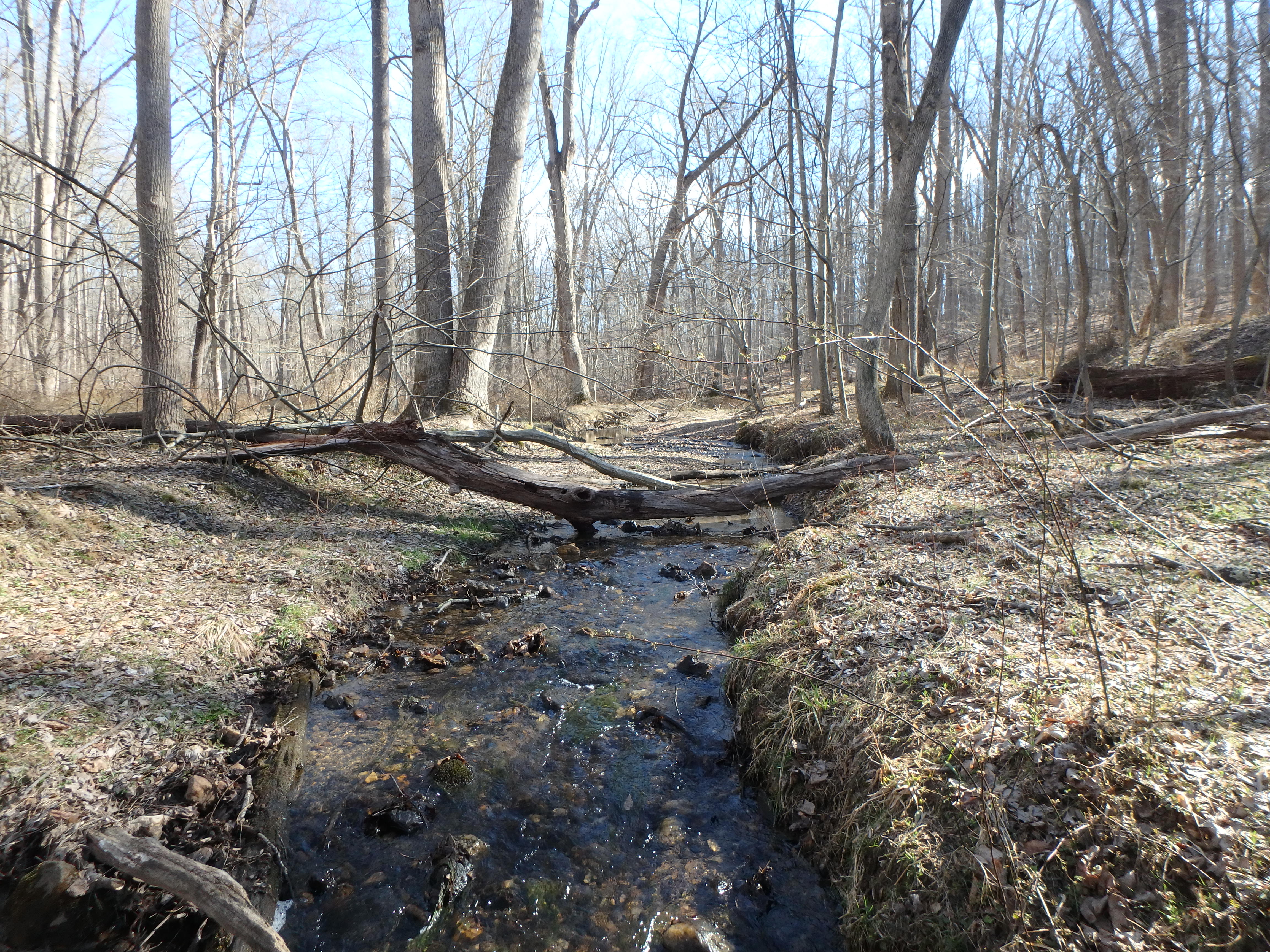

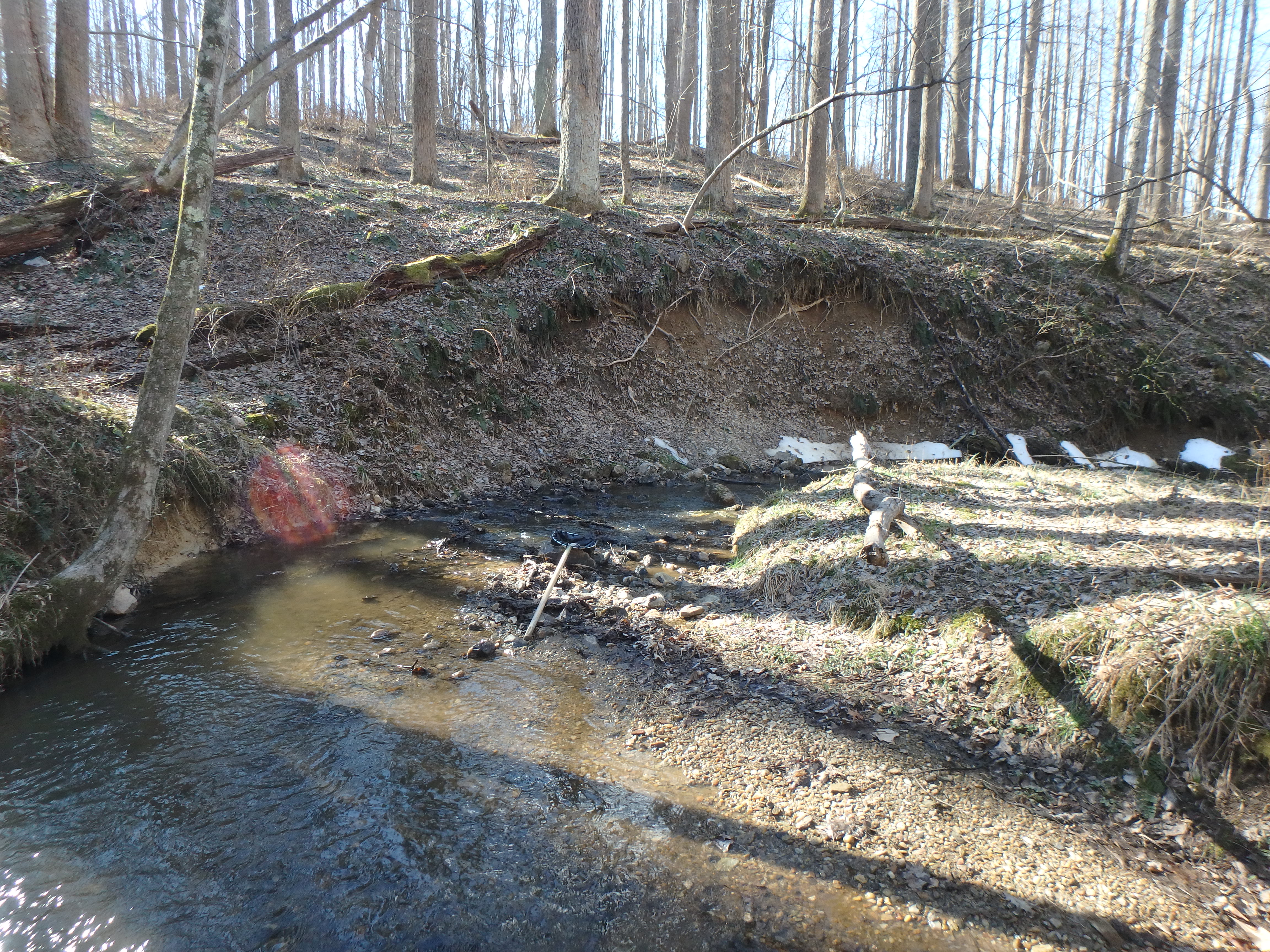

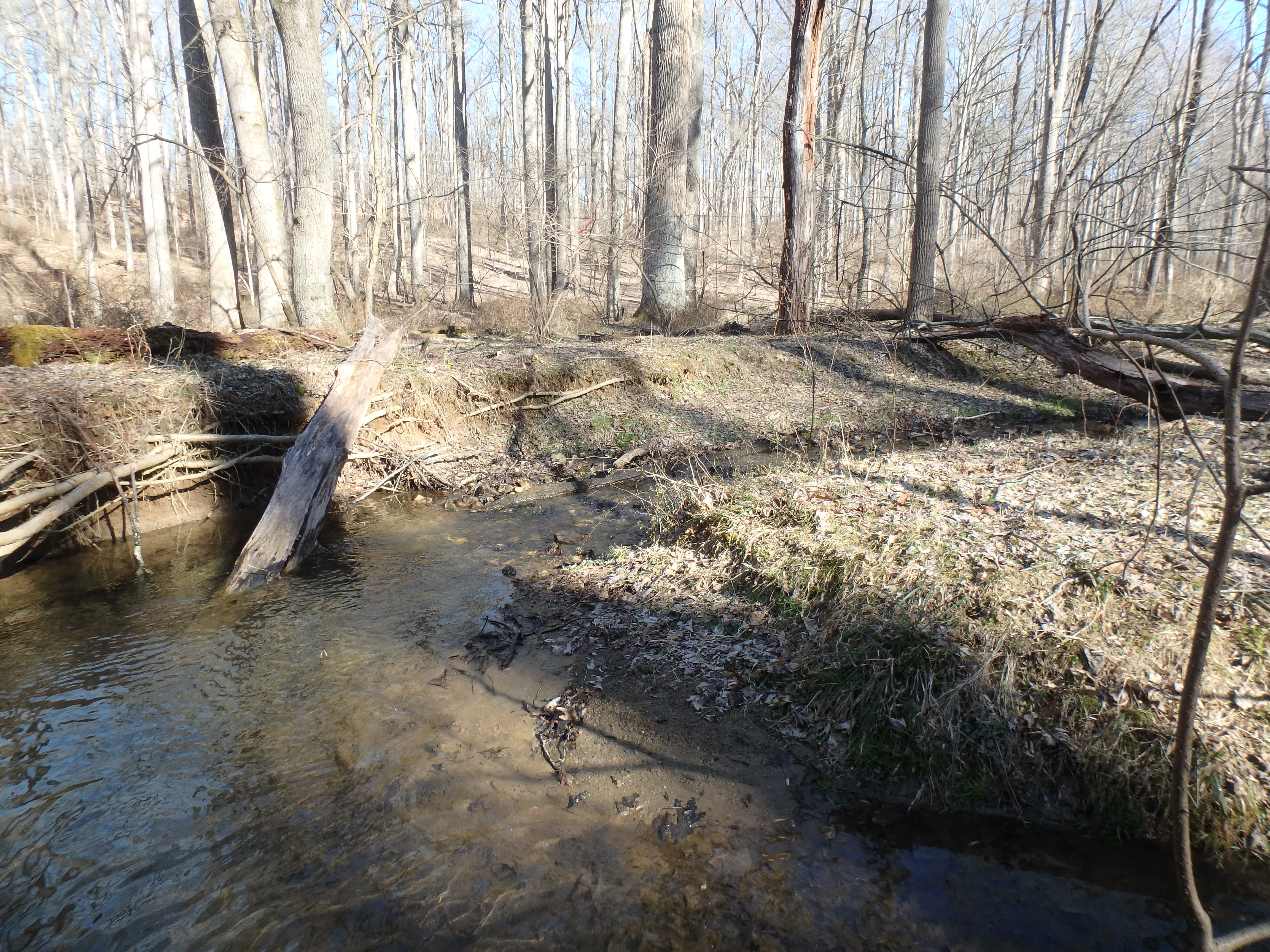

Field photo showing stream conditions at site LIBE-102-S-2017-MidpointLookingDownstream (Opens in a new window) Field photo showing stream conditions at site LIBE-102-S-2017-MidpointLookingUpstream (Opens in a new window) Field photo showing stream conditions at site LIBE-102-S-2017-OutOfMidpointBendLookingDownstream (Opens in a new window) Field photo showing stream conditions at site LIBE-102-S-2017-OutOfMidpointBendLookingUpstream (Opens in a new window)

Located on Timber Run in the Liberty Reservoir watershed, 8-digit code: 02130907.
This stream was visited in the spring on 3/22/2017 and again in the summer on 7/24/2017.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 4.7 / 5.0
Benthic IBI Good - 5.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 584 acres A stream flowing through a densely forested area. An example of a forested stream.
Urban Land Use 7 %
Agricultural Land Use 10.8 %
Forested Land Use 77.1 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 15/20 (Suboptimal)
Epifaunal Substrate 16/20 (Optimal)
Velocity/Depth Diversity 14/20 (Suboptimal)
Pool Quality
Pool Extent = 15 meters 		11/20 (Suboptimal)
Riffle Quality
Riffle Extent = 60 meters 		14/20 (Suboptimal)
Shading 90 %
Embeddedness 20 %


Stream Water Quality:
pH (lab) 7.02
Alkalinity
(acid neutralizing capacity) 		284.4 µeq/L
Dissolved organic carbon (DOC) 1.2048 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 4 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blue Ridge Sculpin 142
Blacknose Dace 101
Rosyside Dace 38
Creek Chub 26
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
American Toad
Northern Green Frog

Crayfish:
Cambarus bartonii bartonii
Orconectes virilis

Exotic Plants:
Garlic Mustard
Japanese Honeysuckle
Japanese Hops
Japanese Stiltgrass
Multiflora Rose
Oriental Bittersweet
Wavyleaf Basketgrass


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
EPHEMERELLA Sulphur Mayfly 45
TELOGANOPSIS Mayfly 16
LEUCTRA  Rolled-Winged Stonefly 13
AMPHINEMURA Spring Stonefly 8
OPTIOSERVUS Riffle Beetle 7
CHEUMATOPSYCHE Net-Spinning Caddisfly 3
HYDROPSYCHE Net-Spinning Caddisfly 3
ISOPERLA Stripetail Stonefly 3
LEUCTRIDAE Rolledwinged Stonefly 3
HAPLOPERLA Green Stonefly 3
DIPHETOR Mayfly 2
NEMOURIDAE Nemourid Stonefly 2
CORYNONEURA Non-Biting Midges 2
EUKIEFFERIELLA Non-Biting Midges 2
MICROPSECTRA Non-Biting Midges 2
SYMPOTTHASTIA Non-Biting Midges 2
OULIMNIUS Riffle Beetle 2
THIENEMANNIMYIA GROUP Non-Biting Midges 2
TVETENIA Non-Biting Midges 1
TANYTARSINI Non-Biting Midges 1
CHAETOCLADIUS Non-Biting Midges 1
ACERPENNA Tiny Blue-Winged Olive Mayflies 1
POLYCENTROPUS Tube Maker Caddisfly 1
ORTHOCLADIUS Non-Biting Midges 1
DIXA 1
ORTHOCLADIINAE Midge 1
EPEORUS Mayfly 1
DICRANOTA Hairy-Eyed Cranefly 1
NAIDIDAE Aquatic Worm 1
NEOPHYLAX Caddisfly 1
HEXATOMA Crane Fly 1
PHILOPOTAMIDAE Fingernet Caddisfly 1
ACRONEURIA Golden Stoneflies 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
