MBSS Site Summary for: LIBE-102-S-2023

Site Photos

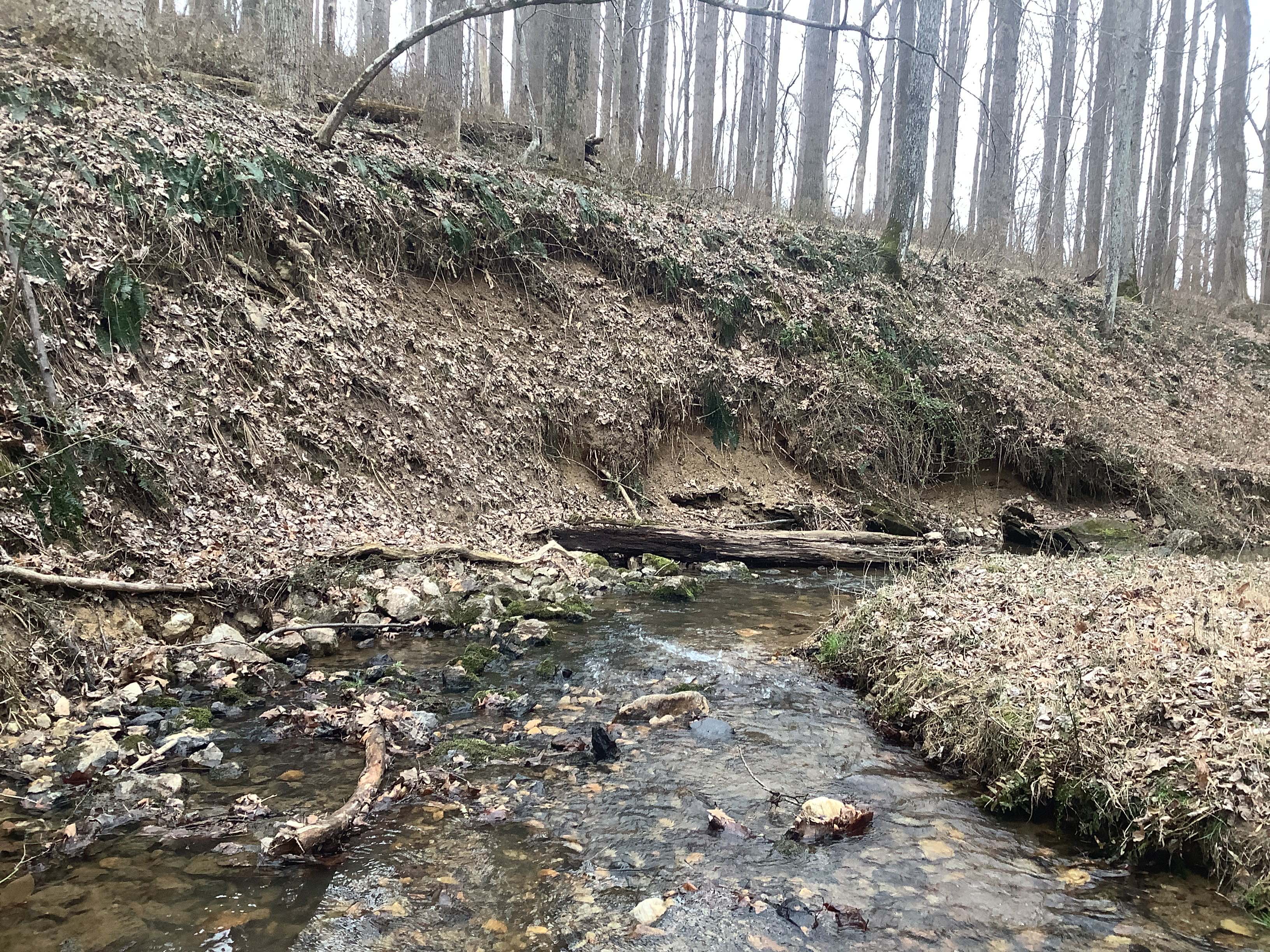

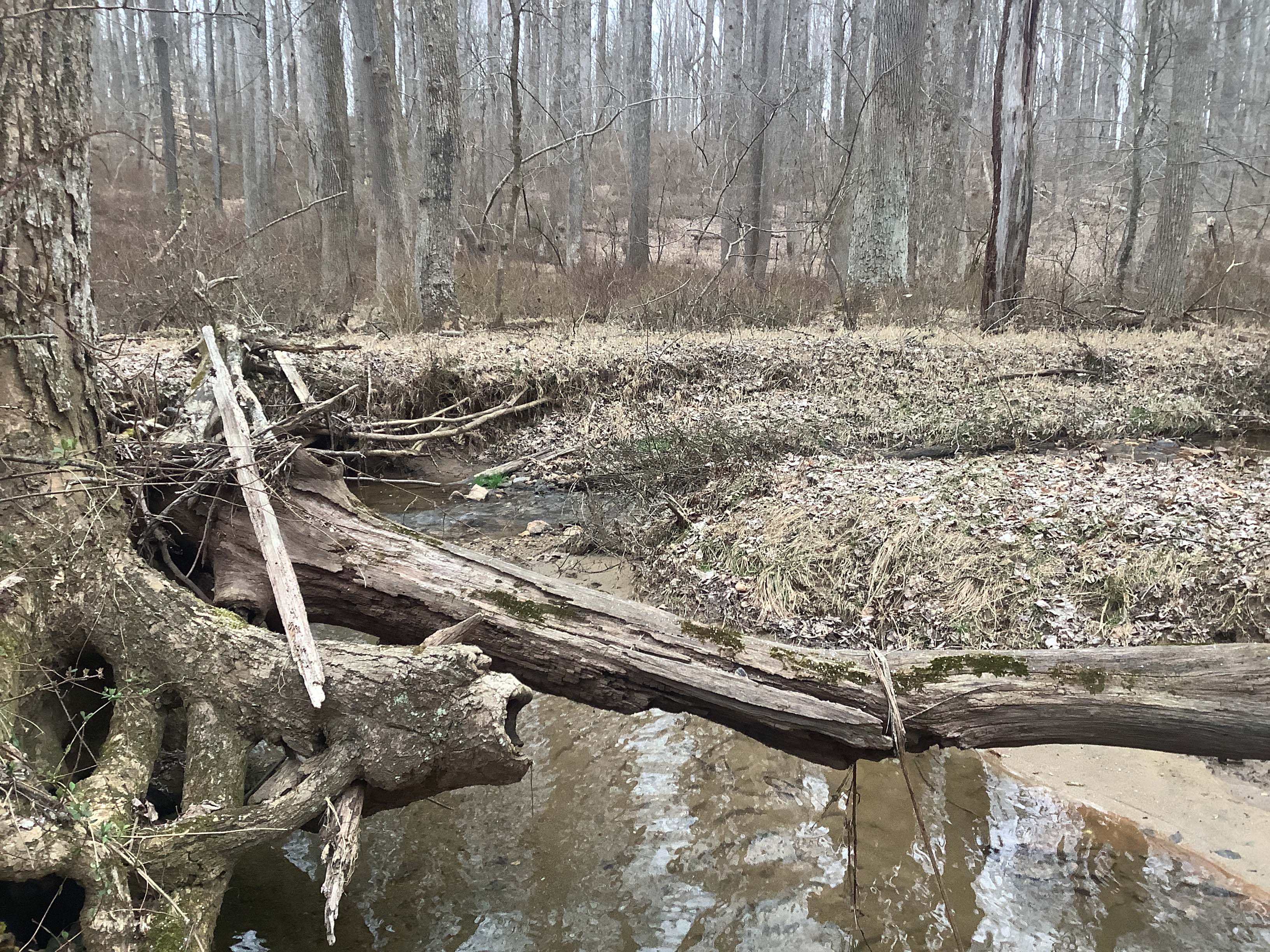

Field photo showing stream conditions at site LIBE-102-S-2023_Midpoint_facing_downstream (Opens in a new window) Field photo showing stream conditions at site LIBE-102-S-2023_Midpoint_facing_upstream (Opens in a new window)

Located on TIMBER RUN in the Liberty Reservoir watershed, 8-digit code: 02130907.
This stream was visited in the spring on 3/7/2023 and again in the summer on 7/5/2023.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 4.7 / 5.0
Benthic IBI Good - 5.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area No data available A stream flowing through a densely forested area. An example of a forested stream.
Urban Land Use 11.2 %
Agricultural Land Use 12.1 %
Forested Land Use 74.6 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 14/20 (Suboptimal)
Epifaunal Substrate 17/20 (Optimal)
Velocity/Depth Diversity 13/20 (Suboptimal)
Pool Quality
Pool Extent = 15 meters 		12/20 (Suboptimal)
Riffle Quality
Riffle Extent = 60 meters 		17/20 (Optimal)
Shading 70 %
Embeddedness 20 %


Stream Water Quality:
Water temperature 18.6 ° C
Dissolved oxygen (DO) 6.84 mg/L
pH (lab) 7.01
Alkalinity
(acid neutralizing capacity) 		302.8 µeq/L
Dissolved organic carbon (DOC) 0.765 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 4 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blue Ridge Sculpin 119
Blacknose Dace 91
Rosyside Dace 55
Creek Chub 20
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Two-Lined Salamander

Crayfish:
Cambarus bartonii
Faxonius virilis

Exotic Plants:
Japanese Barberry
Japanese Stiltgrass
Multiflora Rose
Wavyleaf Basketgrass


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
EPHEMERELLA Sulphur Mayfly 31
NEOPHYLAX Caddisfly 10
OPTIOSERVUS Riffle Beetle 7
AMPHINEMURA Spring Stonefly 7
ANCHYTARSUS Beetle 6
EUKIEFFERIELLA Non-Biting Midges 5
CHEUMATOPSYCHE Net-Spinning Caddisfly 4
HYDROPSYCHE Net-Spinning Caddisfly 4
ACRONEURIA Golden Stoneflies 3
PARAMETRIOCNEMUS Non-Biting Midges 3
ACERPENNA Tiny Blue-Winged Olive Mayflies 3
SIMULIUM Black Fly 3
POLYCENTROPUS Tube Maker Caddisfly 2
THIENEMANNIMYIA GROUP Non-Biting Midges 2
MICROPSECTRA Non-Biting Midges 2
HAPLOPERLA Green Stonefly 2
DIPHETOR Mayfly 2
TELOGANOPSIS Mayfly 2
DOLOPHILODES Medium Evening Sedge Caddisfly 1
NIGRONIA Megaloptera (Dark Fishfly) 1
DICRANOTA Hairy-Eyed Cranefly 1
HELICHUS Beetle 1
PROSIMULIUM Black Fly 1
DEMICRYPTOCHIRONOMUS 1
LEUCTRA  Rolled-Winged Stonefly 1
AMELETUS Combmouthed Minnow Mayfly 1
TIPULA Crane Fly 1
RHYACOPHILA Free-Living Caddisfly 1
ORTHOCLADIUS Non-Biting Midges 1
TRISSOPELOPIA Non-Biting Midges 1
ISOTOMIDAE Springtail 1
OULIMNIUS Riffle Beetle 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
