MBSS Site Summary for: LIBE-102-X-2002

Site Photos

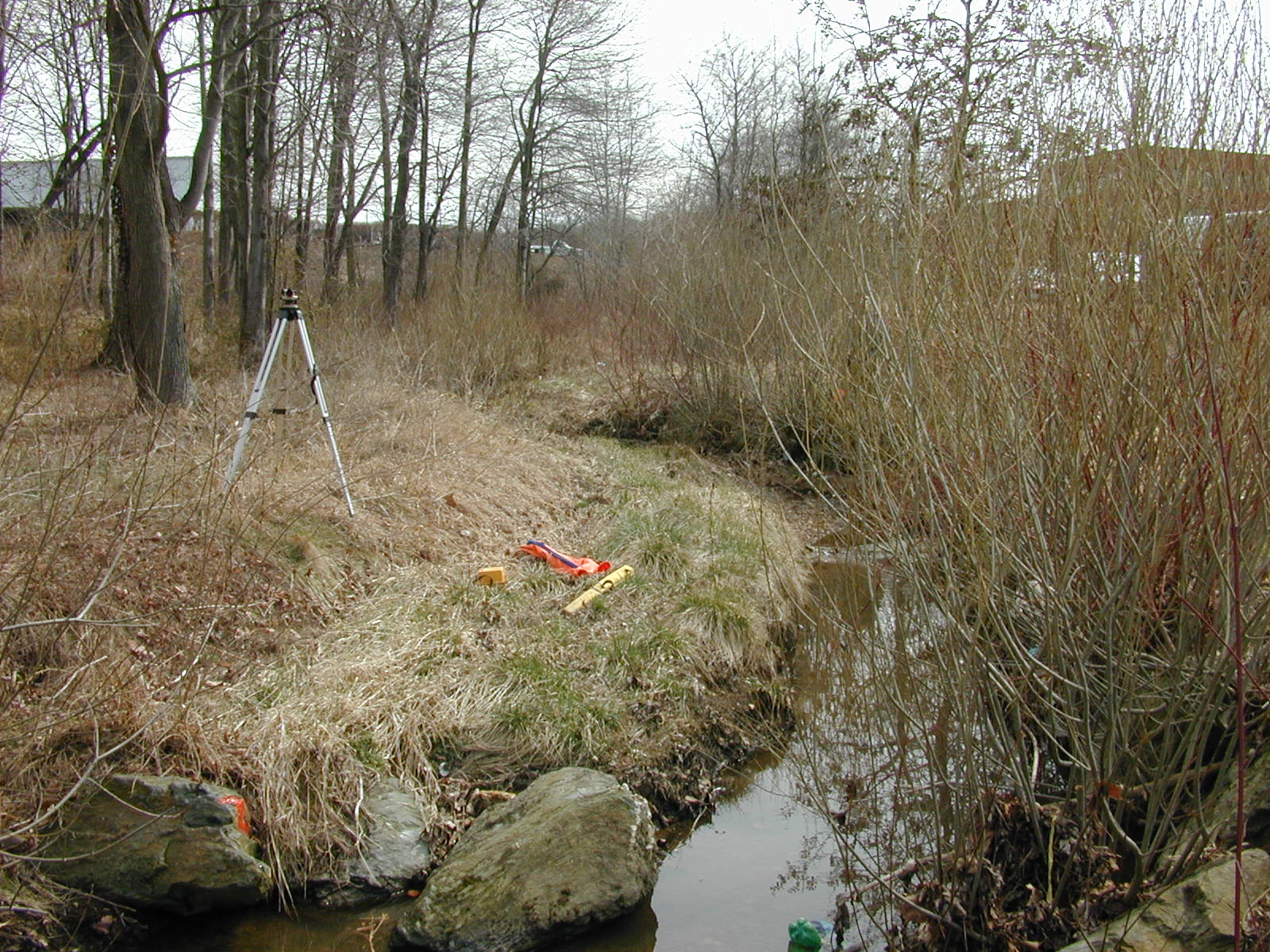

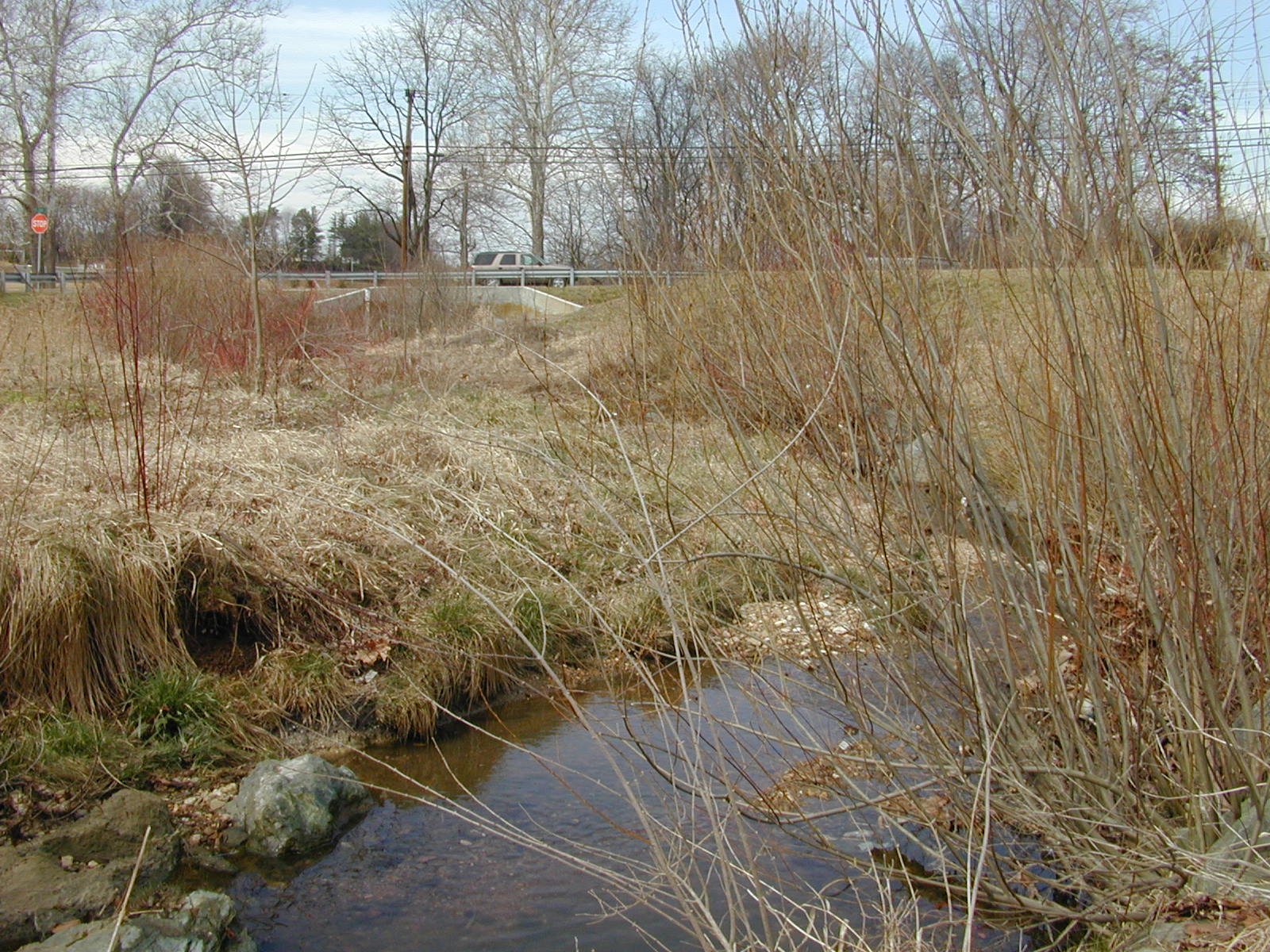

Field photo showing stream conditions at site LIBE-102-X-2002-1 (Opens in a new window) Field photo showing stream conditions at site LIBE-102-X-2002-2 (Opens in a new window)

Located on LONGWELL BR in the Liberty Reservoir watershed, 8-digit code: 02130907.
This stream was visited in the spring on 3/7/2002 and again in the summer on 6/13/2002.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 1.7 / 5.0
Benthic IBI Poor - 1.3 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area No data available Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use No data available
Agricultural Land Use No data available
Forested Land Use No data available


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 12/20 (Suboptimal)
Epifaunal Substrate 12/20 (Suboptimal)
Velocity/Depth Diversity 8/20 (Marginal)
Pool Quality
Pool Extent = 45 meters 		9/20 (Marginal)
Riffle Quality
Riffle Extent = 33 meters 		11/20 (Suboptimal)
Shading 75 %
Embeddedness 40 %


Stream Water Quality:
Water temperature 17.7 ° C
Dissolved oxygen (DO) 8.7 mg/L
pH (lab) 8.59
Conductivity 650 µmho/cm
Alkalinity
(acid neutralizing capacity) 		1838 µeq/L
Dissolved organic carbon (DOC) 0.8 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 4 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 103
Creek Chub 11
Longnose Dace 5
Central Stoneroller 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Two-Lined Salamander

Crayfish:
No crayfish noted.

Exotic Plants:
Canada Thistle
Japanese Honeysuckle
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Orthocladius Non-Biting Midges 27
Cheumatopsyche Net-Spinning Caddisfly 24
Diamesa Bloodworm 17
Brillia Non-Biting Midges 9
Conchapelopia Non-Biting Midges 6
Parametriocnemus Non-Biting Midges 5
Cricotopus Non-Biting Midges 4
Chaetocladius Non-Biting Midges 4
Orthocladiinae Midge 3
Hydropsyche Net-Spinning Caddisfly 3
Diplectrona Net-Spinning Caddisfly 2
Tipula Crane Fly 2
Caecidotea Isopod 1
Limonia 1
Limnophyes Non-Biting Midge 1
Paratanytarsus Non-Biting Midges 1
Rheocricotopus Non-Biting Midges 1
Sympotthastia Non-Biting Midges 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
