MBSS Site Summary for: LIBE-104-R-2000

Site Photos

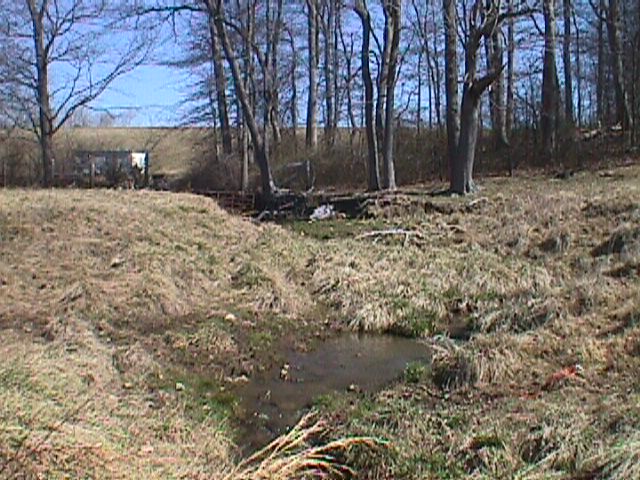

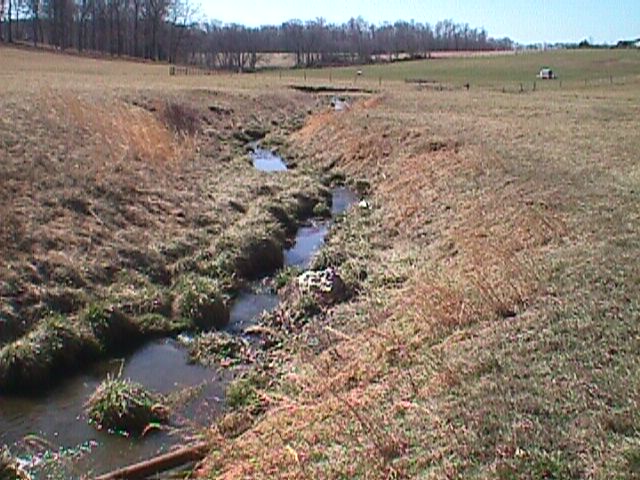

Field photo showing stream conditions at site LIBE-104-R-2000-03_02 (Opens in a new window) Field photo showing stream conditions at site LIBE-104-R-2000-03_03 (Opens in a new window)

Located on DEEP RUN UT1 in the Liberty Reservoir watershed, 8-digit code: 02130907.
This stream was visited in the spring on 3/6/2000 and again in the summer on 6/20/2000.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 4.0 / 5.0
Benthic IBI Poor - 2.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 161 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 11.7 %
Agricultural Land Use 83.1 %
Forested Land Use 5 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 9/20 (Marginal)
Epifaunal Substrate 10/20 (Marginal)
Velocity/Depth Diversity 10/20 (Marginal)
Pool Quality
Pool Extent = 15 meters 		15/20 (Suboptimal)
Riffle Quality
Riffle Extent = 65 meters 		12/20 (Suboptimal)
Shading 40 %
Embeddedness 13 %


Stream Water Quality:
Water temperature 22.3 ° C
Dissolved oxygen (DO) 7.2 mg/L
pH (lab) 7.1
Conductivity 410 µmho/cm
Alkalinity
(acid neutralizing capacity) 		446.8 µeq/L
Dissolved organic carbon (DOC) 2.4 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 8 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Bluntnose Minnow 104
Rosyside Dace 91
Blacknose Dace 78
Blue Ridge Sculpin 45
Creek Chub 40
White Sucker 8
Bluegill 3
Central Stoneroller 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Eastern Snapping Turtle
Northern Red Salamander
Northern Two-Lined Salamander
Northern Watersnake

Crayfish:
No crayfish noted.

Exotic Plants:
Canada Thistle
Mile-A-Minute
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Conchapelopia Non-Biting Midges 17
Cheumatopsyche Net-Spinning Caddisfly 15
Microtendipes Non-Biting Midges 12
Lumbriculidae Worm 6
Dicrotendipes Non-Biting Midges 4
Thienemanniella Non-Biting Midges 4
Cricotopus/Orthocladius Midge 4
Naididae Aquatic Worm 4
Hexatoma Crane Fly 4
Tubificidae Aquatic Worm 3
Hemerodromia Tiny Fly 3
Tanytarsus Non-Biting Midges 3
Neophylax Caddisfly 1
Antocha Crane Fly 1
Chrysops Deerfly 1
Cura Flatworm 1
Glyptotendipes 1
Chelifera Aquatic Dance Fly 1
Orthocladiinae Midge 1
Hydropsyche Net-Spinning Caddisfly 1
Brillia Non-Biting Midges 1
Parametriocnemus Non-Biting Midges 1
Rheosmittia Non-Biting Midges 1
Cryptochironomus Non-Biting Midges 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
