MBSS Site Summary for: LIBE-105-C-2000

Site Photos

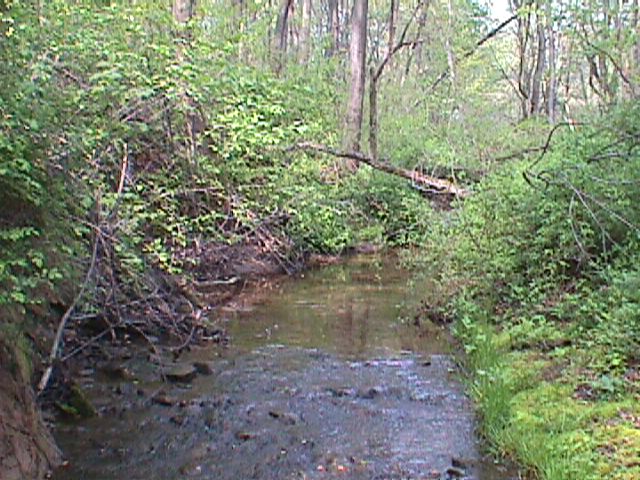

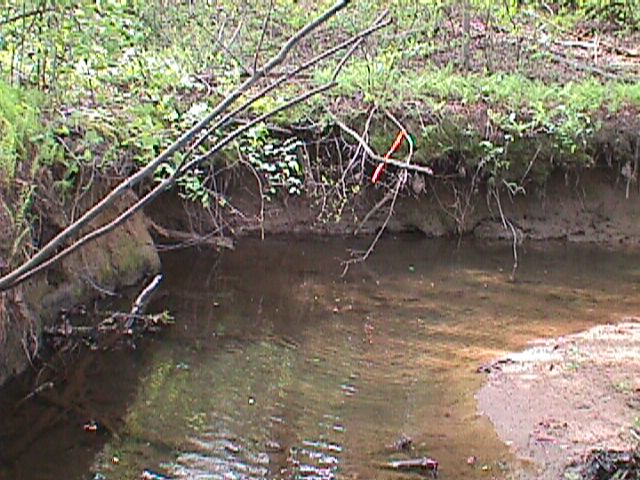

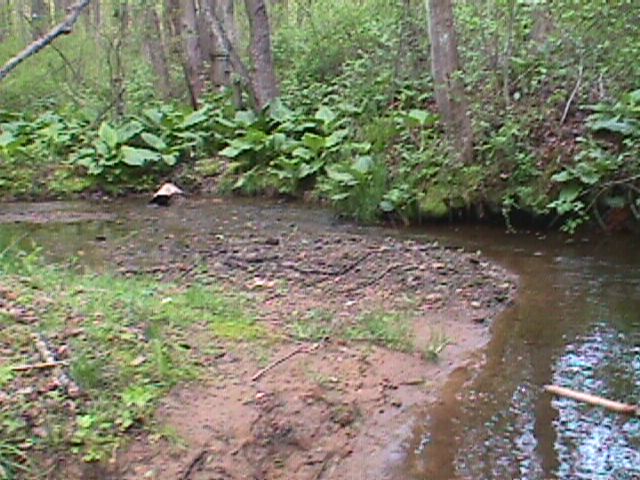

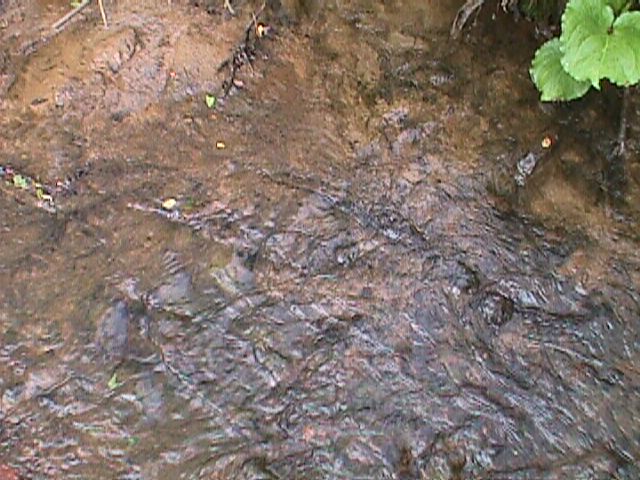

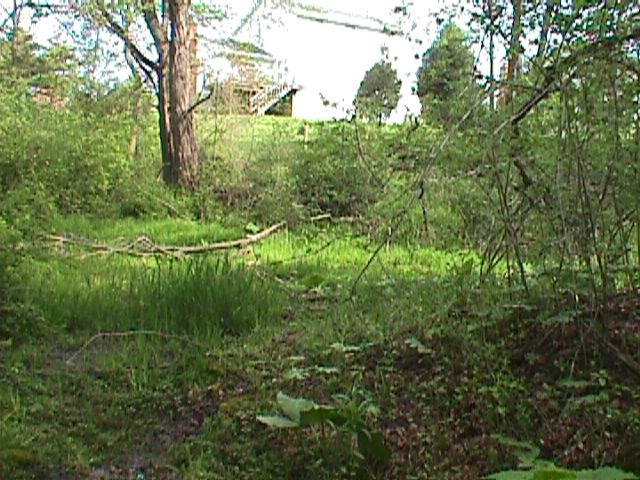

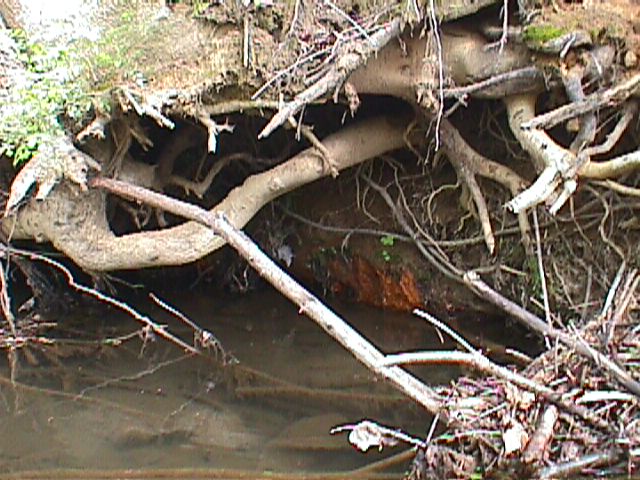

Field photo showing stream conditions at site LIBE-105-C-2000-16_01 (Opens in a new window) Field photo showing stream conditions at site LIBE-105-C-2000-16_02 (Opens in a new window) Field photo showing stream conditions at site LIBE-105-C-2000-16_03 (Opens in a new window) Field photo showing stream conditions at site LIBE-105-C-2000-16_04 (Opens in a new window) Field photo showing stream conditions at site LIBE-105-C-2000-16_05 (Opens in a new window) Field photo showing stream conditions at site LIBE-105-C-2000-16_06 (Opens in a new window)

Located on STILLWATER CR in the Liberty Reservoir watershed, 8-digit code: 02130907.
This stream was visited in the spring on 5/2/2000 and again in the summer on 7/21/2000.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Fair - 3.3 / 5.0
Benthic IBI Poor - 2.3 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 257 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 10.9 %
Agricultural Land Use 73.1 %
Forested Land Use 15.8 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 17/20 (Optimal)
Epifaunal Substrate 18/20 (Optimal)
Velocity/Depth Diversity 14/20 (Suboptimal)
Pool Quality
Pool Extent = 60 meters 		14/20 (Suboptimal)
Riffle Quality
Riffle Extent = 40 meters 		14/20 (Suboptimal)
Shading 95 %
Embeddedness 25 %


Stream Water Quality:
Water temperature 14.7 ° C
Dissolved oxygen (DO) 9.1 mg/L
pH (lab) 6.86
Conductivity 270 µmho/cm
Alkalinity
(acid neutralizing capacity) 		587.7 µeq/L
Dissolved organic carbon (DOC) 0.9 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 2 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 116
Blue Ridge Sculpin 76
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Red Salamander
Northern Two-Lined Salamander
Pickerel Frog

Crayfish:
No crayfish noted.

Exotic Plants:
Japanese Honeysuckle
Japanese Stiltgrass
Mile-A-Minute
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Pagastia 29
Conchapelopia Non-Biting Midges 23
Cricotopus/Orthocladius Midge 14
Micropsectra Non-Biting Midges 8
Ephemerella Sulphur Mayfly 6
Parametriocnemus Non-Biting Midges 4
Eurylophella Mayfly 2
Hydropsyche Net-Spinning Caddisfly 2
Thienemanniella Non-Biting Midges 2
Pisidiidae Pill Clam 1
Dytiscidae Predaceous Diving Beetle 1
Optioservus Riffle Beetle 1
Oulimnius Riffle Beetle 1
Chironomus Non-Biting Midges 1
Hydroptila Microcaddisfly 1
Cheumatopsyche Net-Spinning Caddisfly 1
Polypedilum Non-Biting Midges 1
Cnephia Black Fly 1
Hexatoma Crane Fly 1
Tipulidae Cranefly 1
Empididae Dance Fly 1
Parakiefferiella European Non-Biting Midge 1
Smittia European Non-Biting Midge 1
Girardia Freshwater Flatworm 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
