MBSS Site Summary for: LIBE-110-R-2003

Site Photos

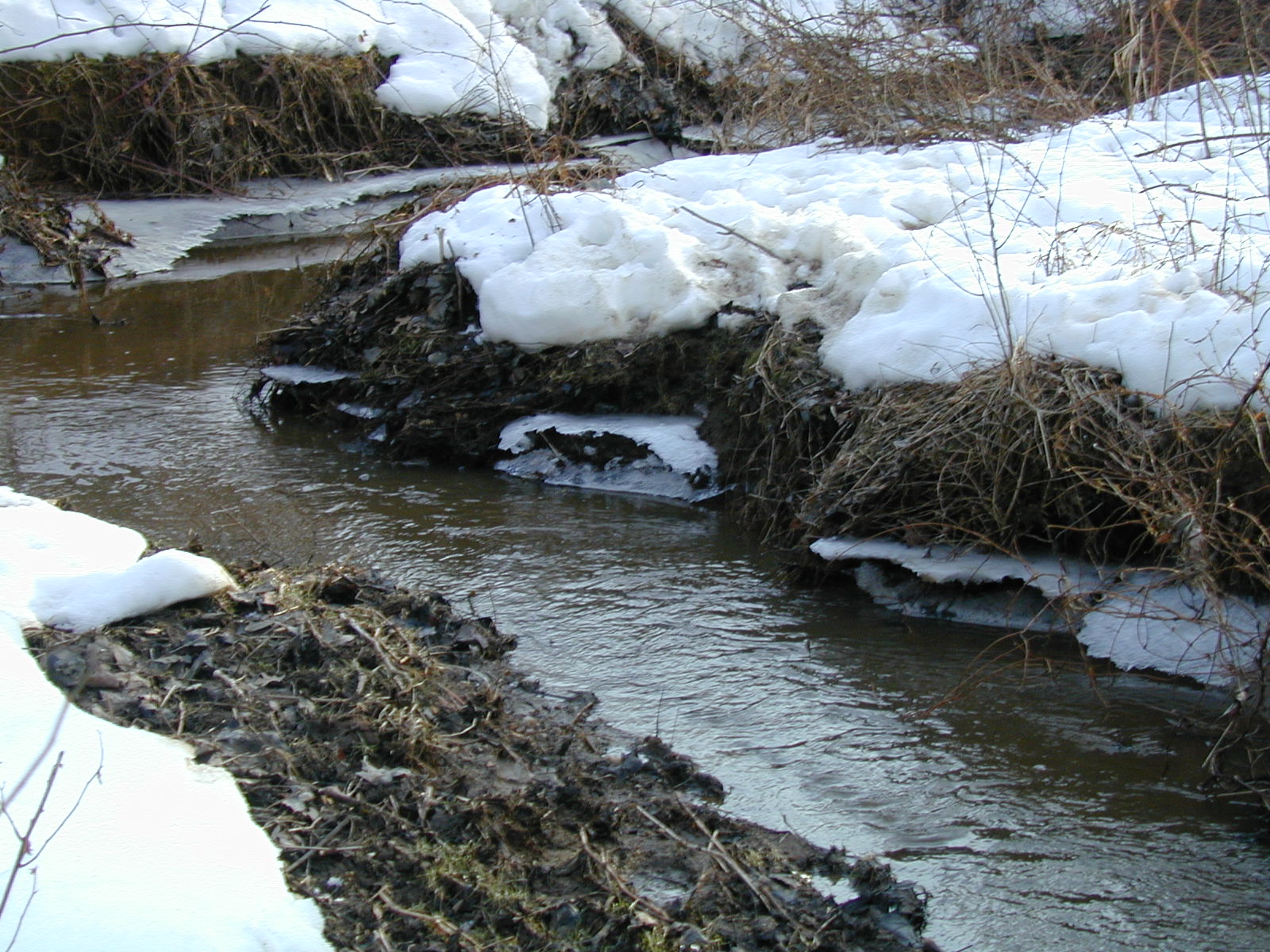

Field photo showing stream conditions at site LIBE-110-R-2003-627 (Opens in a new window)

Located on CRANBERRY BR in the Liberty Reservoir watershed, 8-digit code: 02130907.
This stream was visited in the spring on 3/4/2003 and again in the summer on 6/23/2003.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 2.3 / 5.0
Benthic IBI Fair - 3.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 365 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 0 %
Agricultural Land Use 85 %
Forested Land Use 13 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 8/20 (Marginal)
Epifaunal Substrate 12/20 (Suboptimal)
Velocity/Depth Diversity 6/20 (Marginal)
Pool Quality
Pool Extent = 16 meters 		6/20 (Marginal)
Riffle Quality
Riffle Extent = 68 meters 		7/20 (Marginal)
Shading 98 %
Embeddedness 35 %


Stream Water Quality:
Water temperature 18.2 ° C
Dissolved oxygen (DO) 7.1 mg/L
pH (lab) 7.34
Conductivity 250 µmho/cm
Alkalinity
(acid neutralizing capacity) 		978.9 µeq/L
Dissolved organic carbon (DOC) 4.9 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 3 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 88
Creek Chub 13
Blue Ridge Sculpin 9
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Red Salamander
Northern Two-Lined Salamander

Crayfish:
No crayfish noted.

Exotic Plants:
Canada Thistle
Japanese Honeysuckle
Japanese Stiltgrass
Mile-A-Minute
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Thienemannimyia group Non-Biting Midges 16
Allocapnia Small Winter Stonefly 13
Parametriocnemus Non-Biting Midges 11
Microtendipes Non-Biting Midges 10
Pseudolimnophila Crane Fly 7
Prosimulium Black Fly 6
Trissopelopia Non-Biting Midges 6
Zavrelimyia Non-Biting Midges 6
Stictochironomus Non-Biting Midge 5
Micropsectra Non-Biting Midges 4
Chimarra Fingernet Caddisfly 4
Natarsia Non-Biting Midges 4
Leptophlebiidae Pronggilled Mayfly 4
Optioservus Riffle Beetle 2
Limnodrilus Worm 2
Lumbriculidae Worm 2
Cheumatopsyche Net-Spinning Caddisfly 2
Probezzia Biting Midges 2
Stegopterna Black Fly 2
Tipula Crane Fly 2
Sialis Alderfly 1
Ceratopogon Biting Midge 1
Diamesa Bloodworm 1
Antocha Crane Fly 1
Chironomus Non-Biting Midges 1
Hydropsyche Net-Spinning Caddisfly 1
Dicranota Hairy-Eyed Cranefly 1
Tabanidae Horse Fly 1
Hydroporus Water Beetle 1
Corixidae Water Boatman 1
Pisidiidae Pill Clam 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
