MBSS Site Summary for: LIBE-111-R-2000

Site Photos

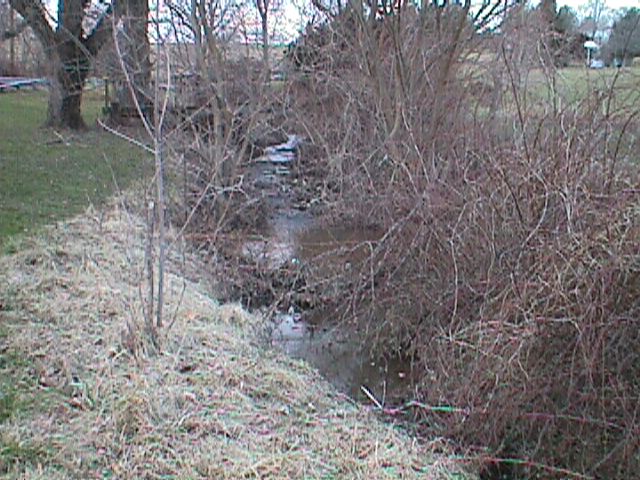

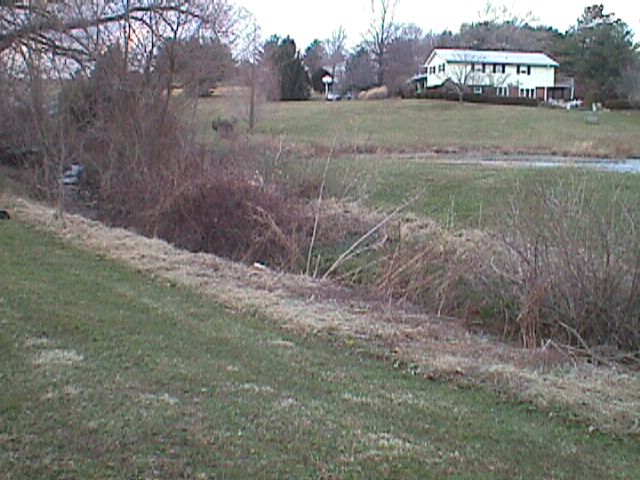

Field photo showing stream conditions at site LIBE-111-R-2000-02_07 (Opens in a new window) Field photo showing stream conditions at site LIBE-111-R-2000-02_08 (Opens in a new window)

Located on MIDDLE RUN UT2 in the Liberty Reservoir watershed, 8-digit code: 02130907.
This stream was visited in the spring on 3/2/2000 and again in the summer on 6/13/2000.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 4.3 / 5.0
Benthic IBI Poor - 1.7 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 471 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 0.1 %
Agricultural Land Use 95.3 %
Forested Land Use 3.8 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 15/20 (Suboptimal)
Epifaunal Substrate 17/20 (Optimal)
Velocity/Depth Diversity 11/20 (Suboptimal)
Pool Quality
Pool Extent = 30 meters 		10/20 (Marginal)
Riffle Quality
Riffle Extent = 60 meters 		11/20 (Suboptimal)
Shading 98 %
Embeddedness 20 %


Stream Water Quality:
Water temperature 16.6 ° C
Dissolved oxygen (DO) 8.1 mg/L
pH (lab) 7.05
Conductivity 140 µmho/cm
Alkalinity
(acid neutralizing capacity) 		301.4 µeq/L
Dissolved organic carbon (DOC) 1.1 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 4 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 106
Blue Ridge Sculpin 86
Creek Chub 24
Longnose Dace 7
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Red Salamander
Northern Two-Lined Salamander

Crayfish:
No crayfish noted.

Exotic Plants:
Canada Thistle
Japanese Honeysuckle
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Micropsectra Non-Biting Midges 47
Cricotopus/Orthocladius Midge 16
Simulium Black Fly 11
Conchapelopia Non-Biting Midges 11
Parametriocnemus Non-Biting Midges 8
Diamesa Bloodworm 4
Physa Air-Breathing Freshwater Snail 3
Hydropsyche Net-Spinning Caddisfly 3
Thienemanniella Non-Biting Midges 2
Antocha Crane Fly 2
Pisidiidae Pill Clam 2
Dubiraphia Riffle Beetle 1
Optioservus Riffle Beetle 1
Oulimnius Riffle Beetle 1
Polypedilum Non-Biting Midges 1
Cryptochironomus Non-Biting Midges 1
Eukiefferiella Non-Biting Midges 1
Hexatoma Crane Fly 1
Anchytarsus Beetle 1
Prosimulium Black Fly 1
Cheumatopsyche Net-Spinning Caddisfly 1
Tvetenia Non-Biting Midges 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
