MBSS Site Summary for: LIBE-111-R-2003

Site Photos

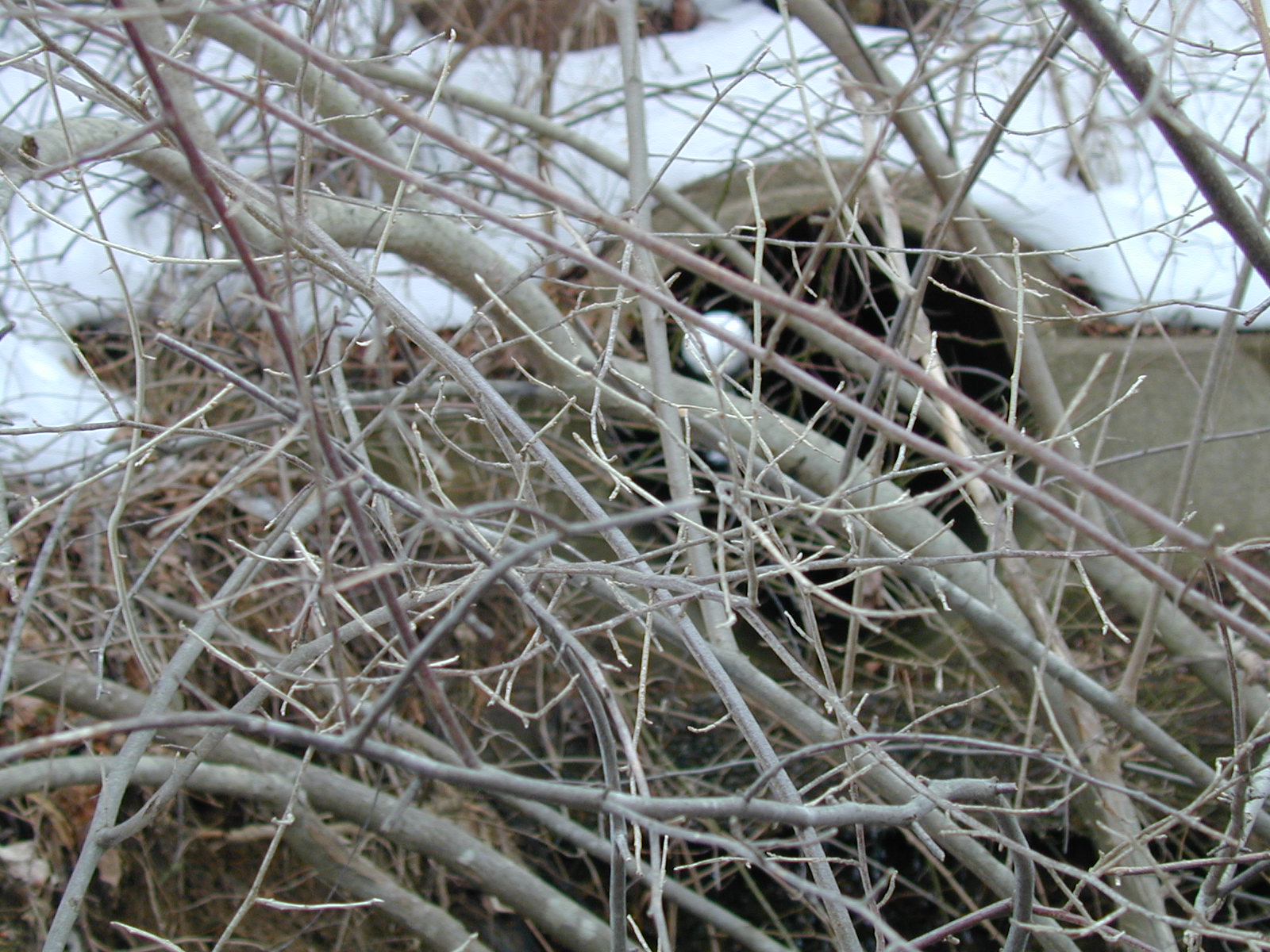

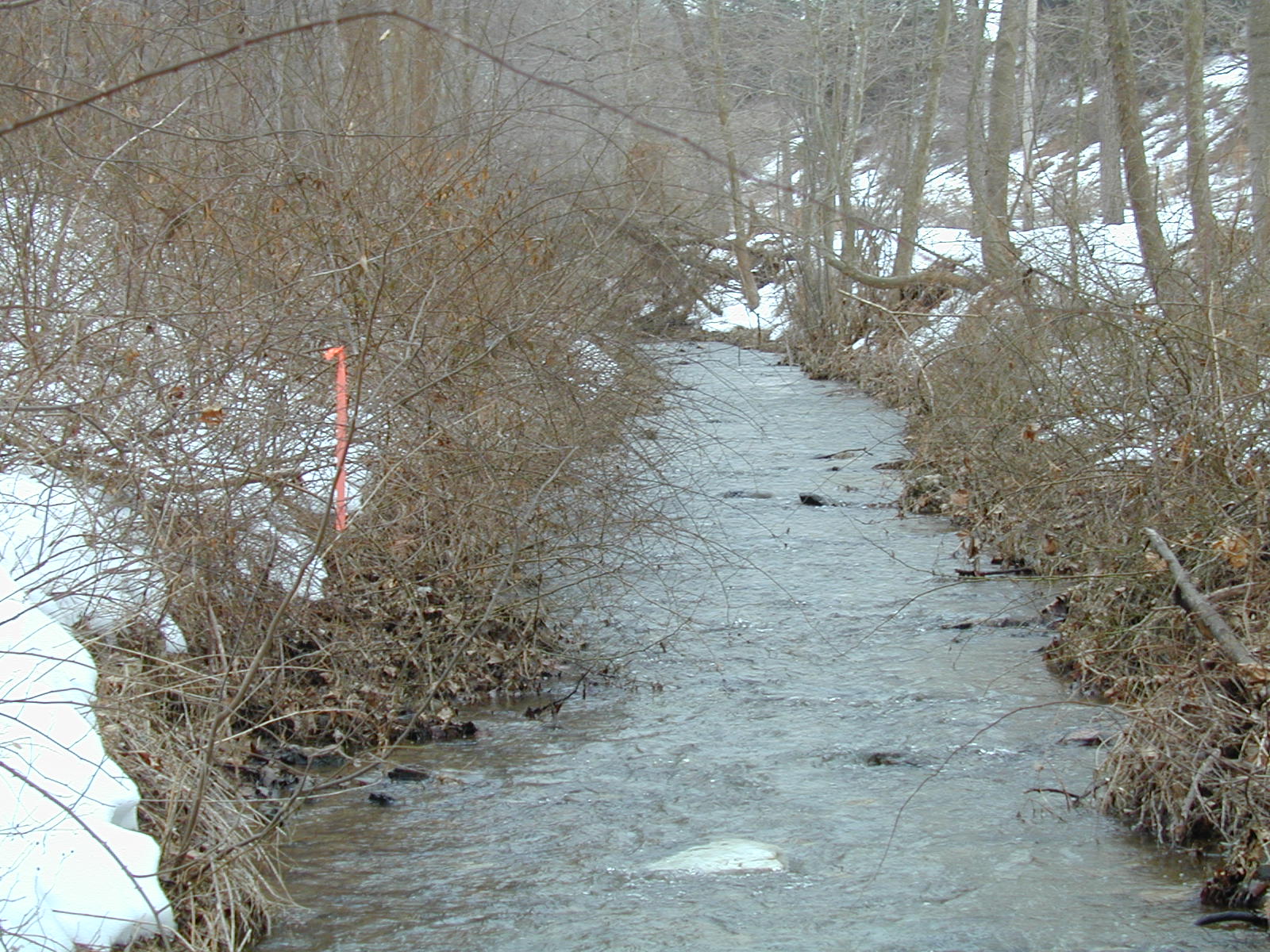

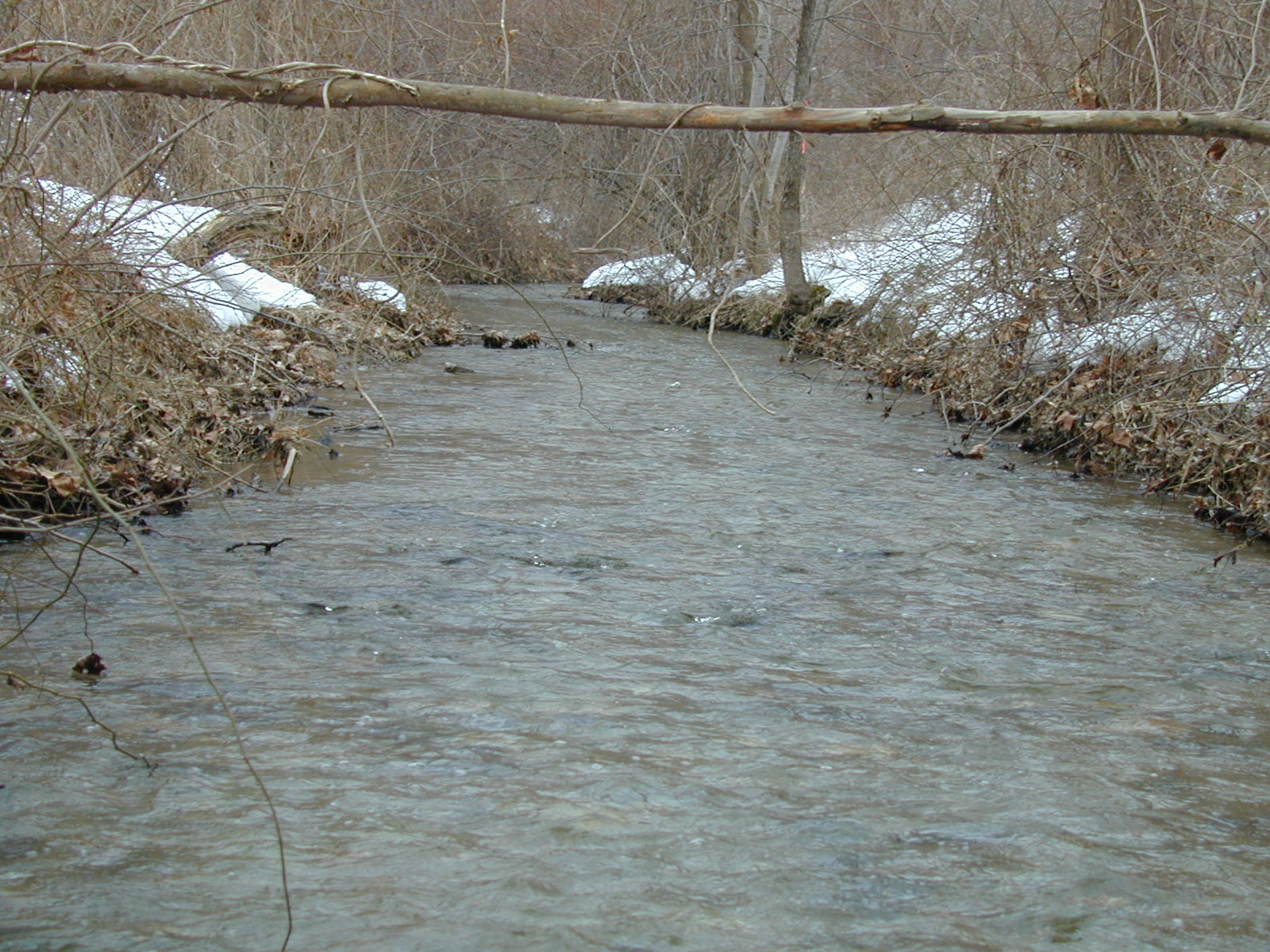

Field photo showing stream conditions at site LIBE-111-R-2003-636 (Opens in a new window) Field photo showing stream conditions at site LIBE-111-R-2003-637 (Opens in a new window) Field photo showing stream conditions at site LIBE-111-R-2003-638 (Opens in a new window)

Located on MORGAN RUN UT3 in the Liberty Reservoir watershed, 8-digit code: 02130907.
This stream was visited in the spring on 3/5/2003 and again in the summer on 6/18/2003.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 4.0 / 5.0
Benthic IBI Fair - 3.7 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)

Catchment area 1,425 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 2 %
Agricultural Land Use 67 %
Forested Land Use 30 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat

Instream Habitat 11/20 (Suboptimal)
Epifaunal Substrate 16/20 (Optimal)
Velocity/Depth Diversity 7/20 (Marginal)
Pool Quality
Pool Extent = 10 meters
5/20 (Poor)
Riffle Quality
Riffle Extent = 75 meters
15/20 (Suboptimal)
Shading 92 %
Embeddedness 35 %


Stream Water Quality:

Water temperature 14 ° C
Dissolved oxygen (DO) 8.6 mg/L
pH (lab) 7.25
Conductivity 151 µmho/cm
Alkalinity
(acid neutralizing capacity)
323.8 µeq/L
Dissolved organic carbon (DOC) 0.8 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health.
Close-up of a mayfly indicator species.

Fish Survey Results:

The following 3 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blue Ridge Sculpin 133
Blacknose Dace 30
Longnose Dace 9
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:

Northern Two-Lined Salamander

Crayfish:

No crayfish noted.

Exotic Plants:

Canada Thistle
Japanese Honeysuckle
Japanese Stiltgrass
Mile-A-Minute
Multiflora Rose


Benthic Macroinvertebrates:

Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Sympotthastia Non-Biting Midges 28
Prosimulium Black Fly 15
Parametriocnemus Non-Biting Midges 10
Neophylax Caddisfly 7
Stenonema Flatheaded Mayfly 6
Prostoia Spring Stonefly 5
Orthocladius Non-Biting Midges 4
Capniidae Small Winter Stonefly 3
Acroneuria Golden Stoneflies 3
Tipula Crane Fly 3
Rhyacophila Free-Living Caddisfly 2
Nemouridae Nemourid Stonefly 2
Diplectrona Net-Spinning Caddisfly 2
Conchapelopia Non-Biting Midges 2
Enchytraeidae Aquatic Worm 2
Micropsectra Non-Biting Midges 2
Optioservus Riffle Beetle 2
Allocapnia Small Winter Stonefly 2
Sweltsa Stonefly 2
Polycentropus Tube Maker Caddisfly 1
Plecoptera Stonefly 1
Amphinemura Spring Stonefly 1
Microtendipes Non-Biting Midges 1
Nigronia Megaloptera (Dark Fishfly) 1
Rheosmittia Non-Biting Midges 1
Thienemanniella Non-Biting Midges 1
Leptophlebiidae Pronggilled Mayfly 1
Anchytarsus Beetle 1
Mystacides 1
Gammarus Amphipod 1
Chelifera Aquatic Dance Fly 1
Ameletus Combmouthed Minnow Mayfly 1
Stegopterna Black Fly 1
Eukiefferiella Non-Biting Midges 1
Pteronarcys Giant Stonefly 1
Strophopteryx Early Brown Stonefly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
