MBSS Site Summary for: LIBE-119-R-2000

Site Photos

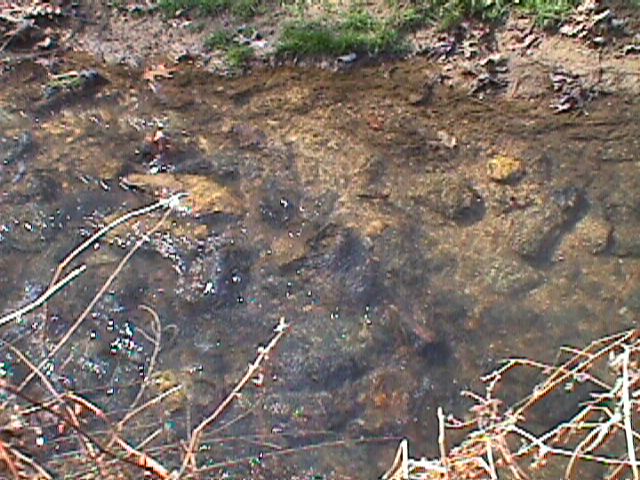

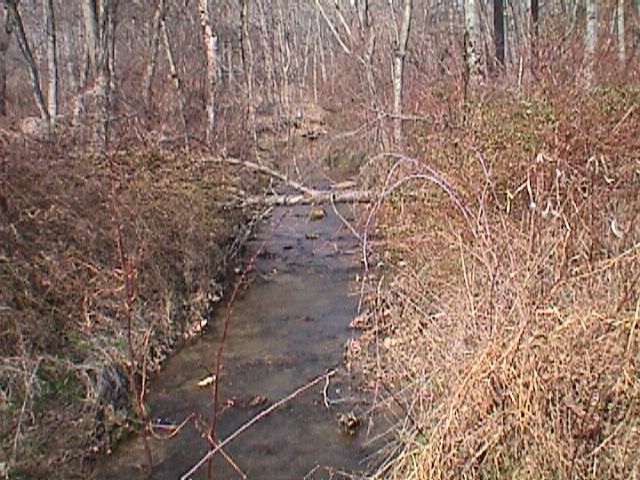

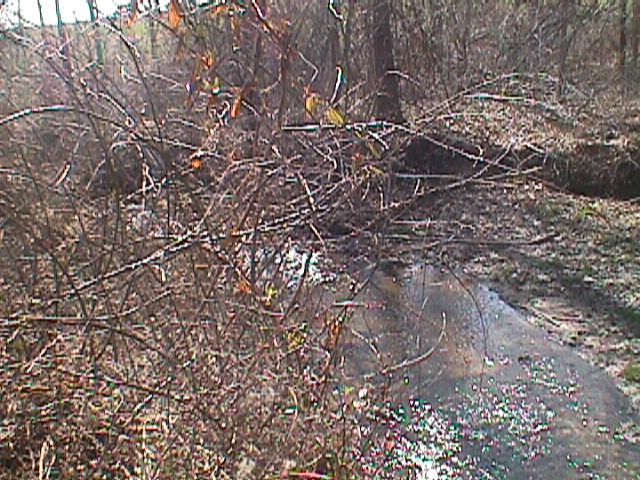

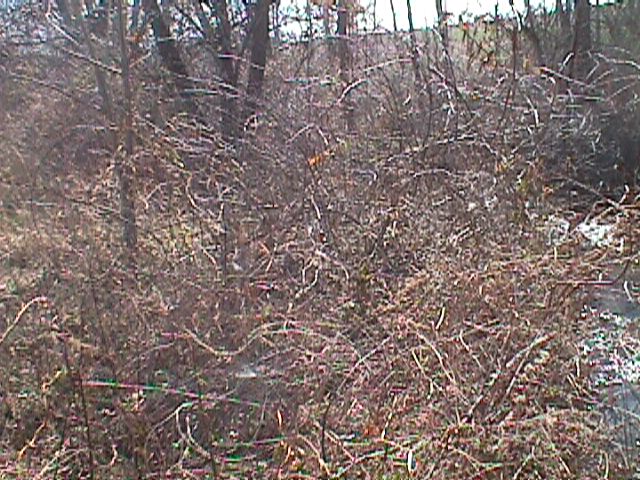

Field photo showing stream conditions at site LIBE-119-R-2000-02_03 (Opens in a new window) Field photo showing stream conditions at site LIBE-119-R-2000-02_04 (Opens in a new window) Field photo showing stream conditions at site LIBE-119-R-2000-02_05 (Opens in a new window) Field photo showing stream conditions at site LIBE-119-R-2000-02_06 (Opens in a new window)

Located on MIDDLE RUN UT1 in the Liberty Reservoir watershed, 8-digit code: 02130907.
This stream was visited in the spring on 3/2/2000 and again in the summer on 6/15/2000.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 4.3 / 5.0
Benthic IBI Poor - 2.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 1,028 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 0.9 %
Agricultural Land Use 87.5 %
Forested Land Use 11.3 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 18/20 (Optimal)
Epifaunal Substrate 18/20 (Optimal)
Velocity/Depth Diversity 10/20 (Marginal)
Pool Quality
Pool Extent = 30 meters 		10/20 (Marginal)
Riffle Quality
Riffle Extent = 45 meters 		11/20 (Suboptimal)
Shading 90 %
Embeddedness 15 %


Stream Water Quality:
Water temperature 18.7 ° C
Dissolved oxygen (DO) 8.5 mg/L
pH (lab) 7.14
Conductivity 180 µmho/cm
Alkalinity
(acid neutralizing capacity) 		318 µeq/L
Dissolved organic carbon (DOC) 1.4 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 10 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 335
Blue Ridge Sculpin 304
Rosyside Dace 175
Creek Chub 129
Longnose Dace 91
Bluntnose Minnow 75
Central Stoneroller 29
Tessellated Darter 25
White Sucker 8
Largemouth Bass 3
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Eastern Snapping Turtle
Northern Two-Lined Salamander

Crayfish:
No crayfish noted.

Exotic Plants:
Japanese Honeysuckle
Mile-A-Minute
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Thienemanniella Non-Biting Midges 21
Cricotopus/Orthocladius Midge 14
Nanocladius Non-Biting Midges 9
Parametriocnemus Non-Biting Midges 6
Orthocladiinae Midge 6
Parakiefferiella European Non-Biting Midge 5
Polypedilum Non-Biting Midges 5
Rheosmittia Non-Biting Midges 5
Chimarra Fingernet Caddisfly 4
Conchapelopia Non-Biting Midges 4
Eukiefferiella Non-Biting Midges 3
Diamesa Bloodworm 3
Neophylax Caddisfly 2
Brillia Non-Biting Midges 2
Corynoneura Non-Biting Midges 2
Cheumatopsyche Net-Spinning Caddisfly 1
Hydropsyche Net-Spinning Caddisfly 1
Prosimulium Black Fly 1
Simulium Black Fly 1
Stenonema Flatheaded Mayfly 1
Eurylophella Mayfly 1
Serratella Mayfly 1
Optioservus Riffle Beetle 1
Oulimnius Riffle Beetle 1
Prostoia Spring Stonefly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
