MBSS Site Summary for: LIBE-122-A-2012

Site Photos

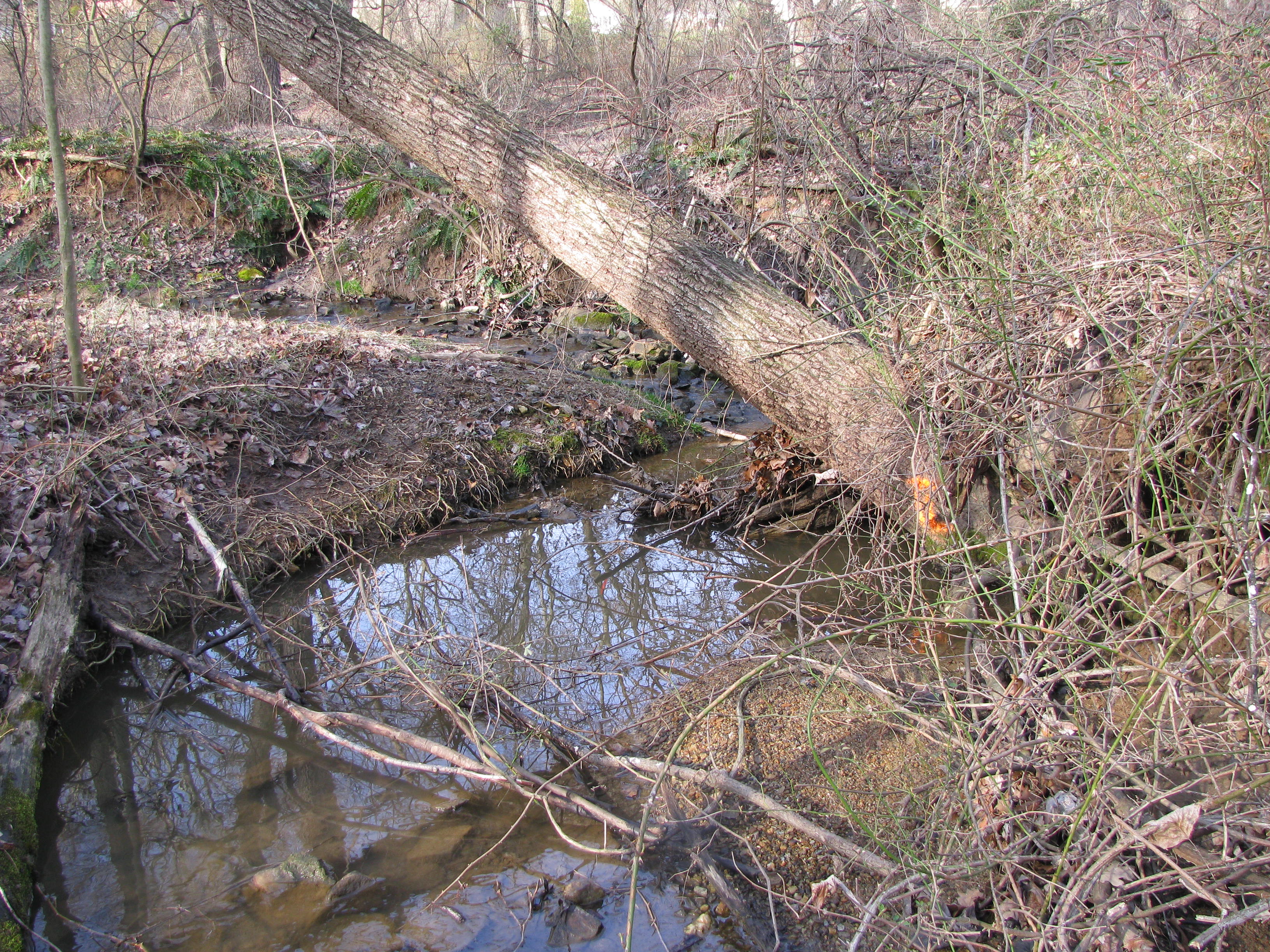

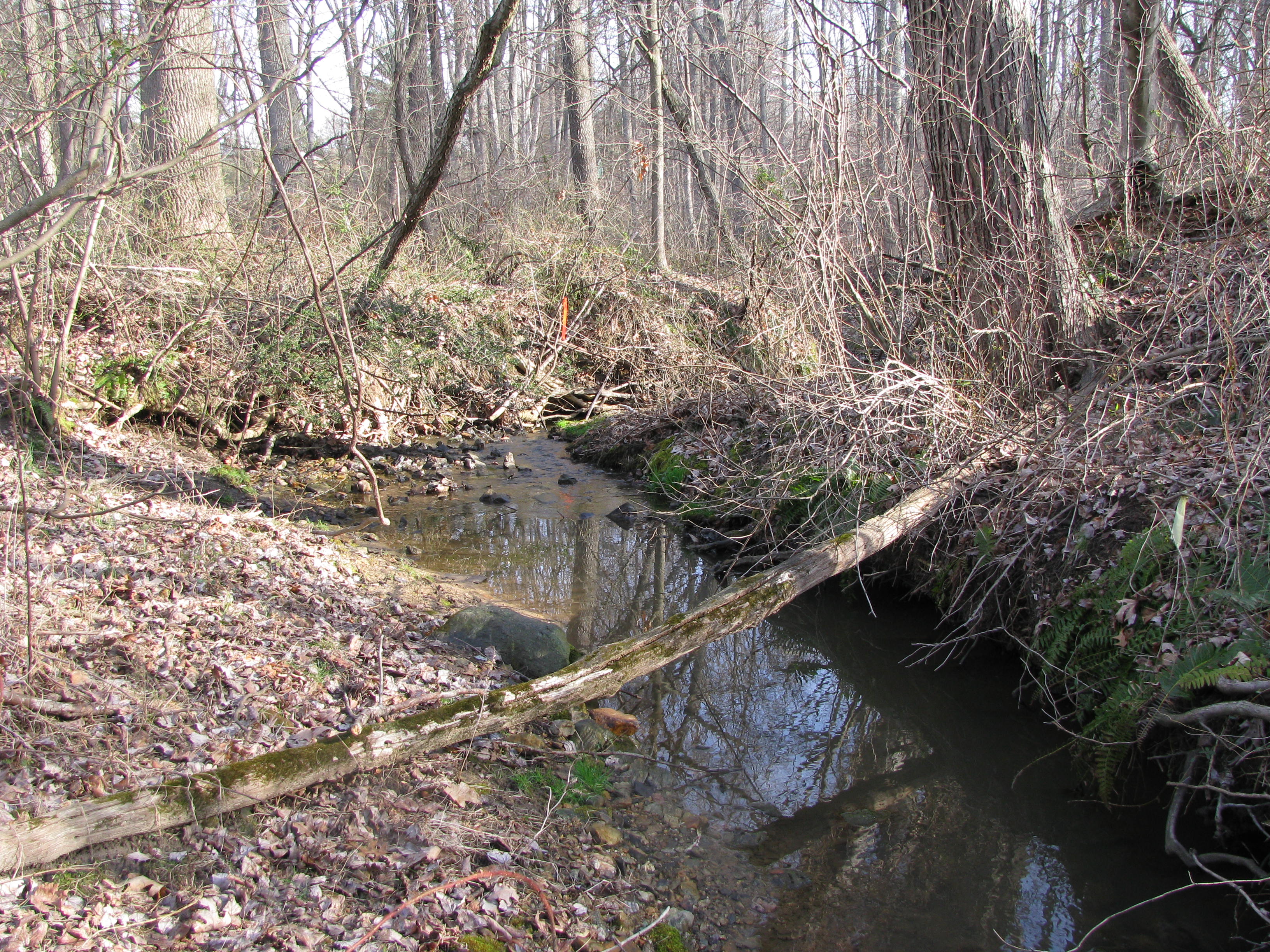

Field photo showing stream conditions at site LIBE-122-A-2012-1 (Opens in a new window) Field photo showing stream conditions at site LIBE-122-A-2012-2 (Opens in a new window)

Located on LIBERTY RESERVOIR UT in the Liberty Reservoir watershed, 8-digit code: 02130907.
This stream was visited in the spring on 3/8/2012 and again in the summer on 6/14/2012.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 4.0 / 5.0
Benthic IBI Poor - 2.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 96 acres A highly channelized urban stream with concrete banks. An example of a highly channelized urban stream.
Urban Land Use 60.8 %
Agricultural Land Use 10 %
Forested Land Use 24.6 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 12/20 (Suboptimal)
Epifaunal Substrate 14/20 (Suboptimal)
Velocity/Depth Diversity 8/20 (Marginal)
Pool Quality
Pool Extent = 50 meters 		8/20 (Marginal)
Riffle Quality
Riffle Extent = 29 meters 		10/20 (Marginal)
Shading 80 %
Embeddedness 50 %


Stream Water Quality:
pH (lab) 7.29
Alkalinity
(acid neutralizing capacity) 		1406.2 µeq/L
Dissolved organic carbon (DOC) 0.192 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 3 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 175
Blue Ridge Sculpin 117
Creek Chub 3
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Two-Lined Salamander

Crayfish:
Cambarus bartonii bartonii
Orconectes virilis

Exotic Plants:
Autumn Olive
Callery Pear
Garlic Mustard
Japanese Barberry
Japanese Honeysuckle
Japanese Stiltgrass
Mimosa
Multiflora Rose
Oriental Bittersweet
Paulownia
Shrub Honeysuckle
Tree Of Heaven
Wavyleaf Basketgrass
Wineberry


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Orthocladius Non-Biting Midges 27
Diplectrona Net-Spinning Caddisfly 19
Diamesa Bloodworm 16
Thienemannimyia Group Non-Biting Midges 6
Parametriocnemus Non-Biting Midges 4
Sympotthastia Non-Biting Midges 4
Stegopterna Black Fly 3
Cheumatopsyche Net-Spinning Caddisfly 3
Micropsectra Non-Biting Midges 3
Thienemanniella Non-Biting Midges 3
Brillia Non-Biting Midges 2
LEUCTRIDAE Rolledwinged Stonefly 2
Amphinemura Spring Stonefly 2
Orthocladiinae Midge 2
TANYTARSINI Non-Biting Midges 2
Lype Net Tube Caddisfly 1
Tipula Crane Fly 1
Calopteryx Damselfly 1
Chimarra Fingernet Caddisfly 1
Ptilostomis Giant Casemaker Caddisfly 1
Pagastia 1
Pilaria 1
Chelifera Aquatic Dance Fly 1
Simulium Black Fly 1
Tvetenia Non-Biting Midges 1
Oulimnius Riffle Beetle 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
