MBSS Site Summary for: LIBE-122-R-2023

Site Photos

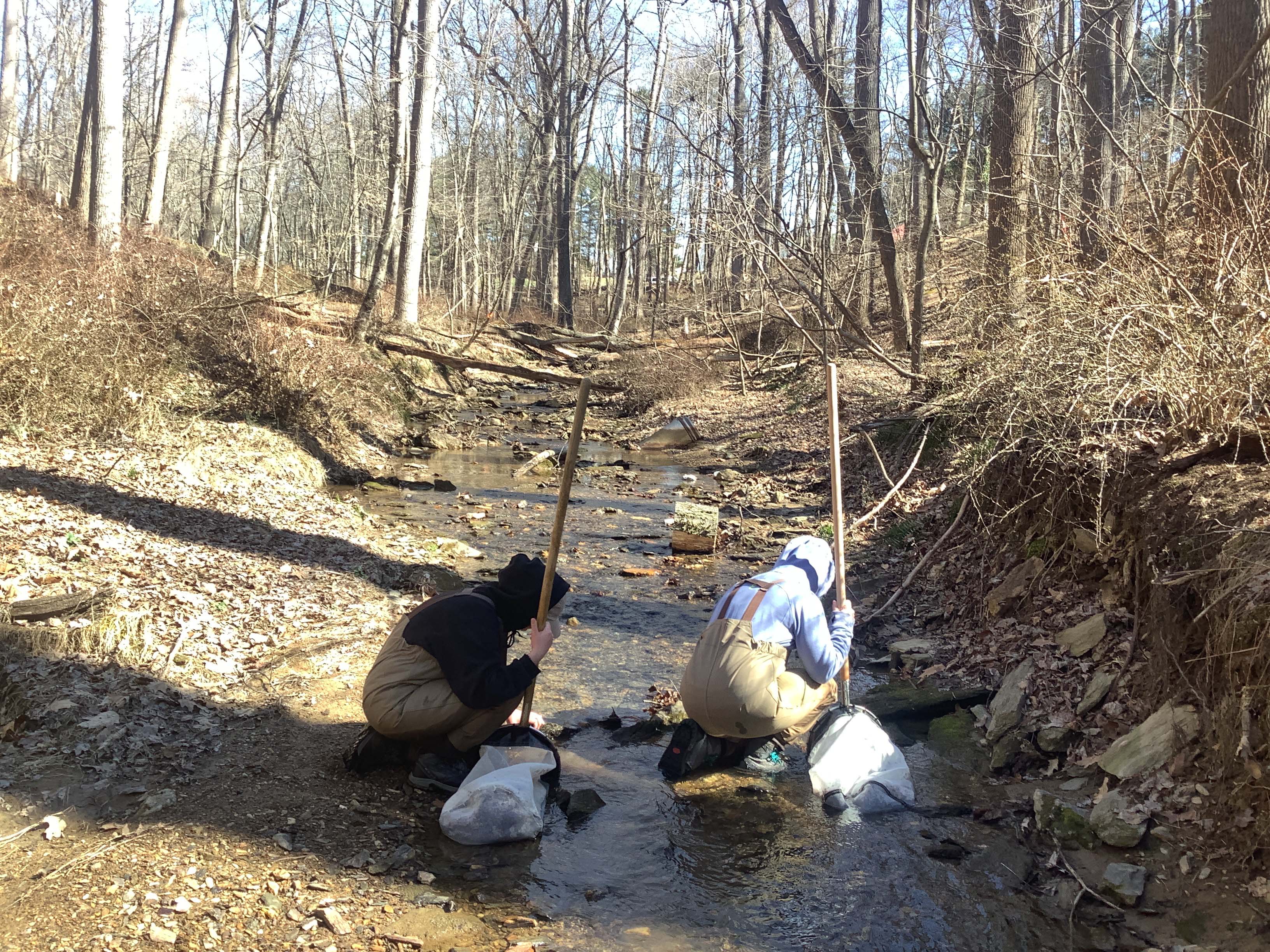

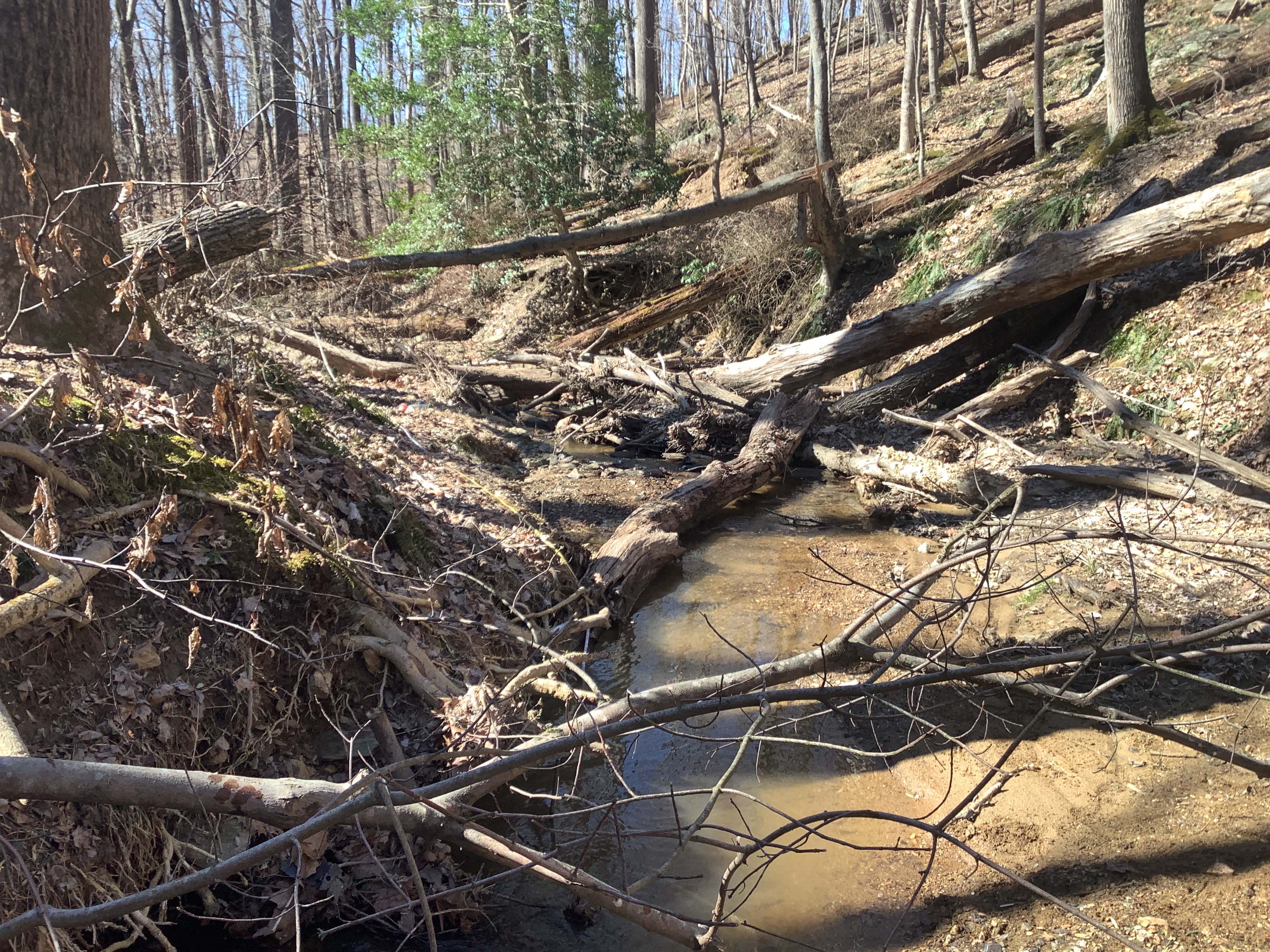

Field photo showing stream conditions at site LIBE-122-R-2023_Midpoint_facing_downstream (Opens in a new window) Field photo showing stream conditions at site LIBE-122-R-2023_Midpoint_facing_upstream (Opens in a new window)

Located on UNNAMED TRIBUTARY TO MORGAN RUN in the Liberty Reservoir watershed, 8-digit code: 02130907.
This stream was visited in the spring on 3/7/2023 and again in the summer on 8/1/2023.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 1.3 / 5.0
Benthic IBI Good - 4.7 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area No data available A highly channelized urban stream with concrete banks. An example of a highly channelized urban stream.
Urban Land Use 60.9 %
Agricultural Land Use 16.1 %
Forested Land Use 22.5 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 13/20 (Suboptimal)
Epifaunal Substrate 16/20 (Optimal)
Velocity/Depth Diversity 5/20 (Poor)
Pool Quality
Pool Extent = 22 meters 		9/20 (Marginal)
Riffle Quality
Riffle Extent = 53 meters 		10/20 (Marginal)
Shading 65 %
Embeddedness 45 %


Stream Water Quality:
Water temperature 18.2 ° C
Dissolved oxygen (DO) 6.45 mg/L
pH (lab) 7.2
Alkalinity
(acid neutralizing capacity) 		525.3 µeq/L
Dissolved organic carbon (DOC) 0.972 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 3 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 84
Rosyside Dace 22
Creek Chub 3
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Two-Lined Salamander

Crayfish:
Cambarus bartonii
Faxonius virilis

Exotic Plants:
Garlic Mustard
Japanese Barberry
Japanese Stiltgrass


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
DIPLECTRONA Net-Spinning Caddisfly 17
NEOPHYLAX Caddisfly 11
CHEUMATOPSYCHE Net-Spinning Caddisfly 10
AMPHINEMURA Spring Stonefly 10
AMELETUS Combmouthed Minnow Mayfly 9
LEUCTRA  Rolled-Winged Stonefly 6
ACRONEURIA Golden Stoneflies 6
CHAETOCLADIUS Non-Biting Midges 4
PARAMETRIOCNEMUS Non-Biting Midges 4
PROSTOIA Spring Stonefly 3
SIMULIUM Black Fly 3
TIPULA Crane Fly 2
BRILLIA Non-Biting Midges 2
EURYLOPHELLA Mayfly 2
DOLOPHILODES Medium Evening Sedge Caddisfly 2
EPHEMERELLA Sulphur Mayfly 2
EUKIEFFERIELLA Non-Biting Midges 2
ZAVRELIMYIA Non-Biting Midges 2
OPTIOSERVUS Riffle Beetle 1
ALLOCAPNIA Small Winter Stonefly 1
RHEOTANYTARSUS Non-Biting Midges 1
THIENEMANNIMYIA GROUP Non-Biting Midges 1
TVETENIA Non-Biting Midges 1
LUMBRICULIDAE Worm 1
HAPLOPERLA Green Stonefly 1
GLOSSOSOMA Little Black Caddisfly 1
CRICOTOPUS Non-Biting Midges 1
STENONEMA Flatheaded Mayfly 1
PERLIDAE Common Stonefly 1
ANTOCHA Crane Fly 1
STYLOGOMPHUS Clubtail Dragonfly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
