MBSS Site Summary for: LIBE-203-R-2000

Site Photos

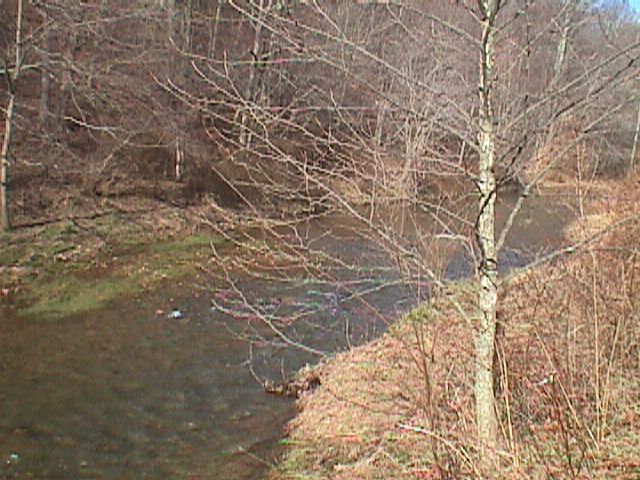

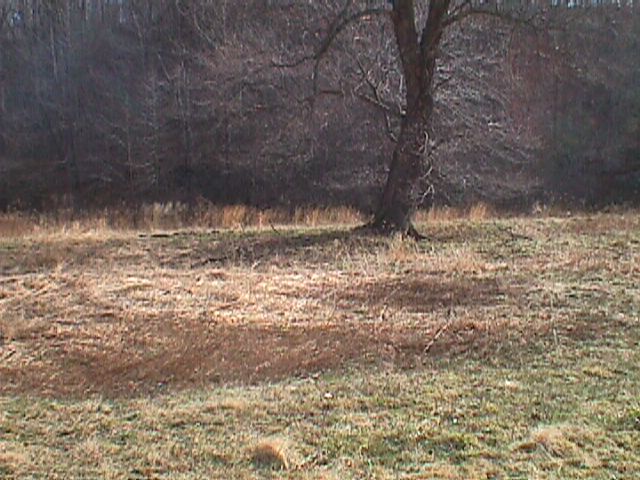

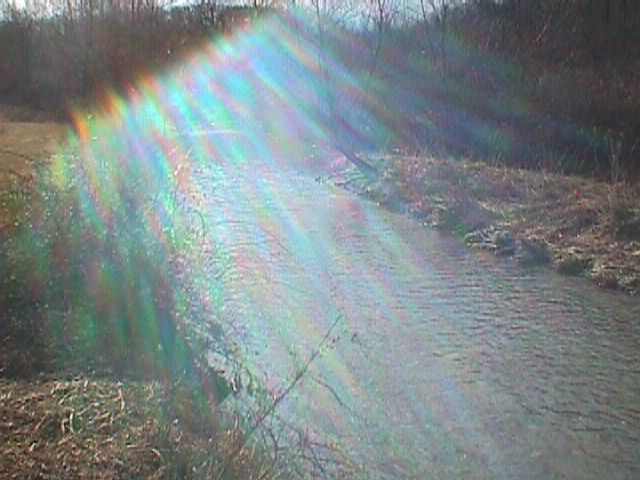

Field photo showing stream conditions at site LIBE-203-R-2000-01_15 (Opens in a new window) Field photo showing stream conditions at site LIBE-203-R-2000-01_16 (Opens in a new window) Field photo showing stream conditions at site LIBE-203-R-2000-01_17 (Opens in a new window)

Located on MORGAN RUN in the Liberty Reservoir watershed, 8-digit code: 02130907.
This stream was visited in the spring on 3/2/2000 and again in the summer on 6/12/2000.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 5.0 / 5.0
Benthic IBI Fair - 3.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 9,686 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 0.6 %
Agricultural Land Use 77 %
Forested Land Use 22 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 15/20 (Suboptimal)
Epifaunal Substrate 16/20 (Optimal)
Velocity/Depth Diversity 9/20 (Marginal)
Pool Quality
Pool Extent = 43 meters 		10/20 (Marginal)
Riffle Quality
Riffle Extent = 55 meters 		17/20 (Optimal)
Shading 36 %
Embeddedness 34 %


Stream Water Quality:
Water temperature 20.7 ° C
Dissolved oxygen (DO) 9.1 mg/L
pH (lab) 7.41
Conductivity 160 µmho/cm
Alkalinity
(acid neutralizing capacity) 		451.2 µeq/L
Dissolved organic carbon (DOC) 1.3 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 13 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blue Ridge Sculpin 1374
Blacknose Dace 711
Rosyside Dace 557
Bluntnose Minnow 379
Longnose Dace 127
White Sucker 103
Central Stoneroller 74
Creek Chub 38
Cutlip Minnow 19
Brown Trout 3
Common Shiner 3
Northern Hogsucker 1
Tessellated Darter 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Eastern Snapping Turtle
Long-Tailed Salamander

Crayfish:
No crayfish noted.

Exotic Plants:
Canada Thistle
Japanese Honeysuckle
Mile-A-Minute
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Cricotopus/Orthocladius Midge 12
Prostoia Spring Stonefly 11
Prosimulium Black Fly 10
Hemerodromia Tiny Fly 8
Amphinemura Spring Stonefly 6
Nemouridae Nemourid Stonefly 6
Parametriocnemus Non-Biting Midges 4
Elmidae Riffle Beetle 4
Orthocladiinae Midge 4
Ephemerella Sulphur Mayfly 4
Optioservus Riffle Beetle 3
Ephemerellidae Spiny Crawler Mayfly 3
Isonychia Slate Drake Mayfly 2
Cheumatopsyche Net-Spinning Caddisfly 2
Diamesa Bloodworm 2
Antocha Crane Fly 2
Tipula Crane Fly 1
Strophopteryx Early Brown Stonefly 1
Stenonema Flatheaded Mayfly 1
Neophylax Caddisfly 1
Brillia Non-Biting Midges 1
Sympotthastia Non-Biting Midges 1
Tvetenia Non-Biting Midges 1
Naididae Aquatic Worm 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
