MBSS Site Summary for: LIBE-204-C-2001

Site Photos

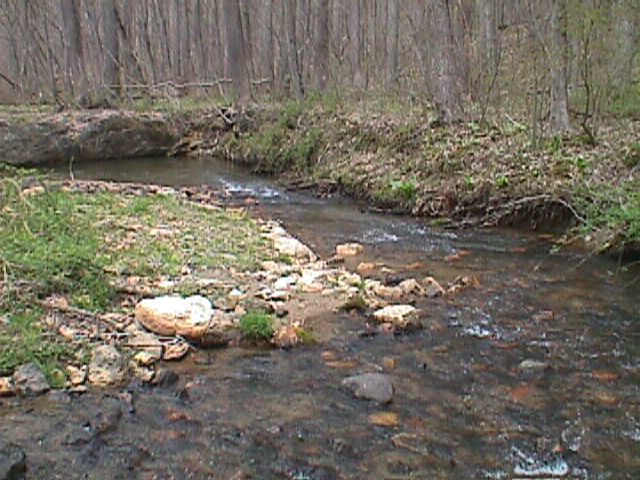

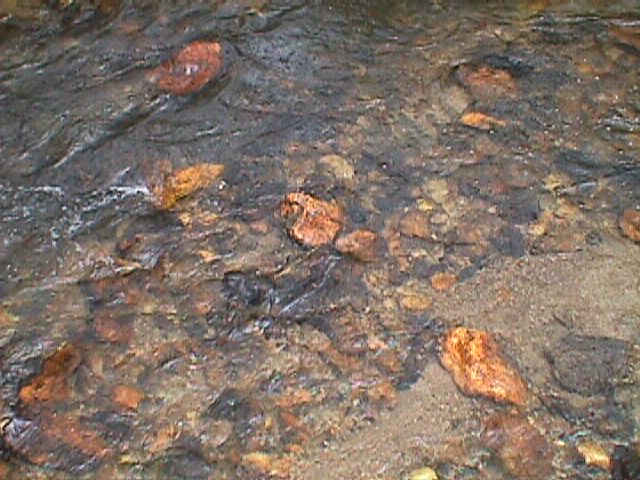

Field photo showing stream conditions at site LIBE-204-C-2000-15_01 (Opens in a new window) Field photo showing stream conditions at site LIBE-204-C-2000-15_02 (Opens in a new window)

Located on COOKS BR in the Liberty Reservoir watershed, 8-digit code: 02130907.
This stream was visited in the spring on 4/11/2001 and again in the summer on 6/13/2001.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 5.0 / 5.0
Benthic IBI Good - 5.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 1,571 acres A stream flowing through a densely forested area. An example of a forested stream.
Urban Land Use 1 %
Agricultural Land Use 31 %
Forested Land Use 67 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 17/20 (Optimal)
Epifaunal Substrate 17/20 (Optimal)
Velocity/Depth Diversity 15/20 (Suboptimal)
Pool Quality
Pool Extent = 25 meters 		16/20 (Optimal)
Riffle Quality
Riffle Extent = 70 meters 		16/20 (Optimal)
Shading 90 %
Embeddedness 15 %
Several measures of instream habitat were considered 'Optimal' at this location.


Stream Water Quality:
Water temperature 16.3 ° C
Dissolved oxygen (DO) 8.7 mg/L
pH (lab) 7.35
Conductivity 130 µmho/cm
Alkalinity
(acid neutralizing capacity) 		511.7 µeq/L
Dissolved organic carbon (DOC) 1 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 12 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blue Ridge Sculpin 486
Rosyside Dace 140
Blacknose Dace 112
Tessellated Darter 67
Longnose Dace 58
Creek Chub 36
Spottail Shiner 23
Yellow Bullhead 4
Central Stoneroller 2
Fathead Minnow 1
Mummichog 1
White Sucker 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Eastern American Toad
Northern Two-Lined Salamander

Crayfish:
No crayfish noted.

Exotic Plants:
Japanese Honeysuckle
Japanese Stiltgrass
Mile-A-Minute
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Serratella Mayfly 22
Prosimulium Black Fly 17
Ephemerella Sulphur Mayfly 16
Rheosmittia Non-Biting Midges 5
Amphinemura Spring Stonefly 5
Clinocera Aquatic Dance Fly 5
Hydropsyche Net-Spinning Caddisfly 5
Tanypodinae Non-Biting Midges 4
Tanytarsini Non-Biting Midges 3
Optioservus Riffle Beetle 3
Cheumatopsyche Net-Spinning Caddisfly 3
Cricotopus/Orthocladius Midge 2
Micropsectra Non-Biting Midges 2
Neophylax Caddisfly 2
Paratanytarsus Non-Biting Midges 2
Tvetenia Non-Biting Midges 2
Acerpenna Tiny Blue-Winged Olive Mayflies 2
Hemerodromia Tiny Fly 1
Perlodidae Perlodid Stonefly 1
Leptophlebiidae Pronggilled Mayfly 1
Oulimnius Riffle Beetle 1
Antocha Crane Fly 1
Empididae Dance Fly 1
Stenonema Flatheaded Mayfly 1
Rhyacophila Free-Living Caddisfly 1
Dicranota Hairy-Eyed Cranefly 1
Anchytarsus Beetle 1
Simulium Black Fly 1
Orthocladius Non-Biting Midges 1
Parametriocnemus Non-Biting Midges 1
Stempellina 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
