MBSS Site Summary for: LIBE-206-X-2023

Site Photos

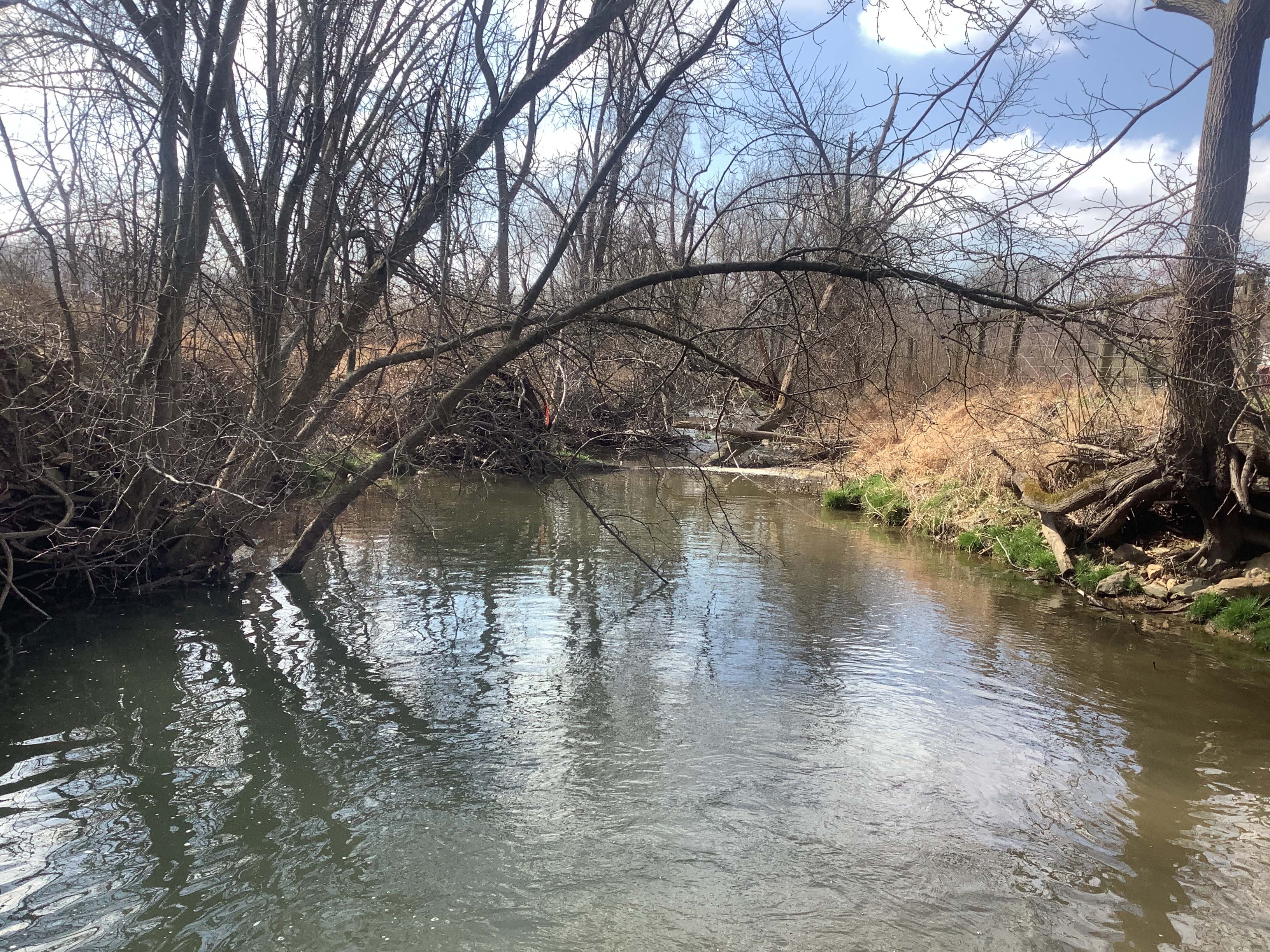

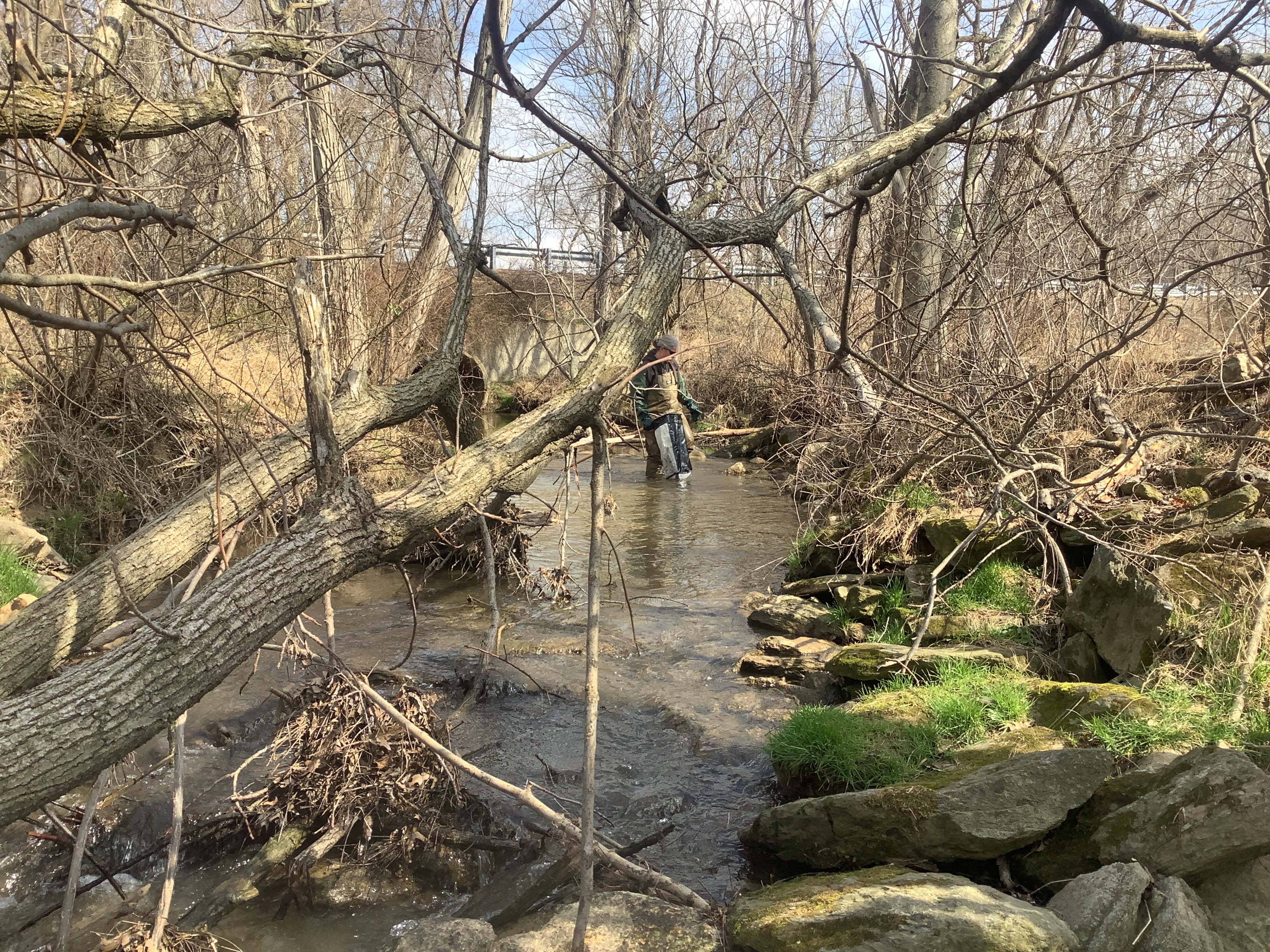

Field photo showing stream conditions at site LIBE-206-X-2023_Midpoint_facing_downstream (Opens in a new window) Field photo showing stream conditions at site LIBE-206-X-2023_Midpoint_facing_upstream (Opens in a new window)

Located on DEEP RUN in the Liberty Reservoir watershed, 8-digit code: 02130907.
This stream was visited in the spring on 3/1/2023 and again in the summer on 6/20/2023.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 4.7 / 5.0
Benthic IBI Poor - 2.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area No data available Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 23.8 %
Agricultural Land Use 56.2 %
Forested Land Use 18.6 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 16/20 (Optimal)
Epifaunal Substrate 16/20 (Optimal)
Velocity/Depth Diversity 12/20 (Suboptimal)
Pool Quality
Pool Extent = 55 meters 		17/20 (Optimal)
Riffle Quality
Riffle Extent = 20 meters 		15/20 (Suboptimal)
Shading 35 %
Embeddedness 25 %
Several measures of instream habitat were considered 'Optimal' at this location.


Stream Water Quality:
Water temperature 18.8 ° C
Dissolved oxygen (DO) 8.06 mg/L
pH (lab) 7.77
Alkalinity
(acid neutralizing capacity) 		719.1 µeq/L
Dissolved organic carbon (DOC) 1.197 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 14 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blue Ridge Sculpin 164
Creek Chub 61
Blacknose Dace 35
Central Stoneroller 28
White Sucker 26
Bluegill 18
Brown Trout 14
Longnose Dace 13
Tessellated Darter 12
Rosyside Dace 10
Common Shiner 6
Cutlip Minnow 6
Green Sunfish 3
Largemouth Bass 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Green Frog

Crayfish:
Cambarus bartonii
Faxonius virilis

Exotic Plants:
Garlic Mustard
Japanese Barberry
Multiflora Rose
Oriental Bittersweet


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
CHEUMATOPSYCHE Net-Spinning Caddisfly 31
ORTHOCLADIUS Non-Biting Midges 27
RHEOTANYTARSUS Non-Biting Midges 26
NAIDIDAE Aquatic Worm 12
CRICOTOPUS Non-Biting Midges 11
HYDROPSYCHE Net-Spinning Caddisfly 10
PARAMETRIOCNEMUS Non-Biting Midges 7
RHEOCRICOTOPUS Non-Biting Midges 5
ANTOCHA Crane Fly 4
PARAKIEFFERIELLA European Non-Biting Midge 4
TVETENIA Non-Biting Midges 4
POLYPEDILUM Non-Biting Midges 3
THIENEMANNIELLA Non-Biting Midges 3
CARDIOCLADIUS Non-Biting Midge 2
MICROTENDIPES Non-Biting Midges 2
ORTHOCLADIINAE Midge 1
DIAMESA Bloodworm 1
THIENEMANNIMYIA GROUP Non-Biting Midges 1
TRISSOPELOPIA Non-Biting Midges 1
LEUCOTRICHIA 1
OPTIOSERVUS Riffle Beetle 1
HEMERODROMIA Tiny Fly 1
LUMBRICULIDAE Worm 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
