MBSS Site Summary for: LIBE-209-R-2000

Site Photos

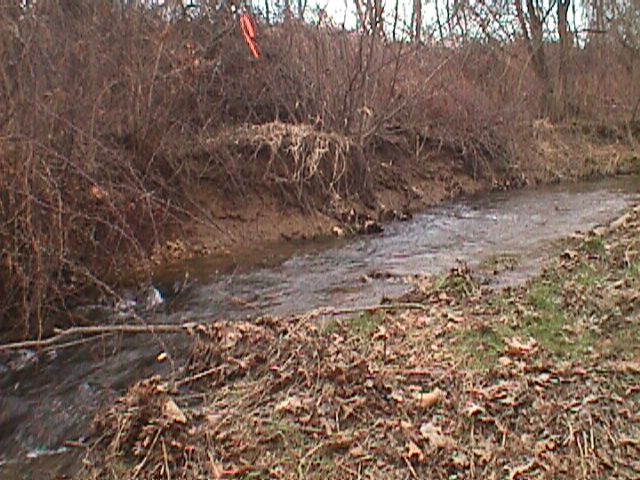

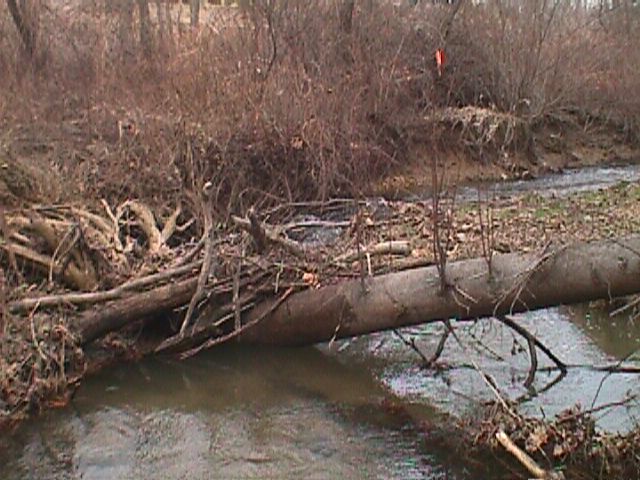

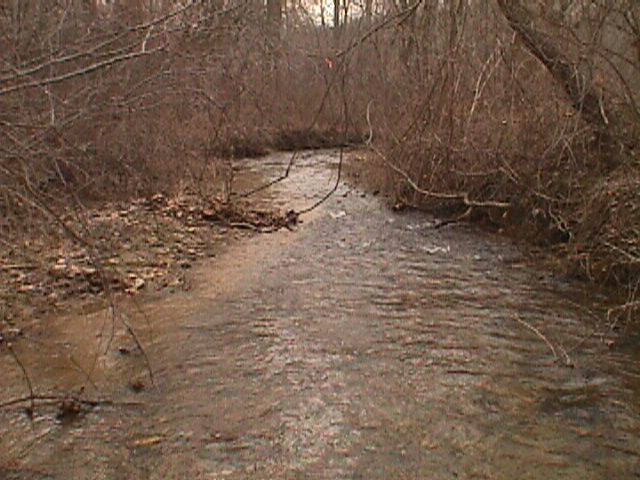

Field photo showing stream conditions at site LIBE-209-R-2000-01_06 (Opens in a new window) Field photo showing stream conditions at site LIBE-209-R-2000-01_07 (Opens in a new window) Field photo showing stream conditions at site LIBE-209-R-2000-01_08 (Opens in a new window)

Located on JOE BR in the Liberty Reservoir watershed, 8-digit code: 02130907.
This stream was visited in the spring on 3/1/2000 and again in the summer on 6/21/2000.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 5.0 / 5.0
Benthic IBI Good - 4.3 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 1,675 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 0.1 %
Agricultural Land Use 64.2 %
Forested Land Use 35.7 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 15/20 (Suboptimal)
Epifaunal Substrate 17/20 (Optimal)
Velocity/Depth Diversity 11/20 (Suboptimal)
Pool Quality
Pool Extent = 35 meters 		12/20 (Suboptimal)
Riffle Quality
Riffle Extent = 45 meters 		13/20 (Suboptimal)
Shading 85 %
Embeddedness 22 %


Stream Water Quality:
Water temperature 16.5 ° C
Dissolved oxygen (DO) 9 mg/L
pH (lab) 7.2
Conductivity 230 µmho/cm
Alkalinity
(acid neutralizing capacity) 		290.8 µeq/L
Dissolved organic carbon (DOC) 1.3 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 8 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Rosyside Dace 227
Blacknose Dace 177
Blue Ridge Sculpin 173
Creek Chub 62
White Sucker 35
Longnose Dace 9
Bluegill 1
Central Stoneroller 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
American Bullfrog
Northern Two-Lined Salamander

Crayfish:
No crayfish noted.

Exotic Plants:
Japanese Honeysuckle
Mile-A-Minute
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Prosimulium Black Fly 62
Ephemerellidae Spiny Crawler Mayfly 15
Amphinemura Spring Stonefly 11
Baetis Blue-Winged Olive Mayfly 6
Naididae Aquatic Worm 4
Cheumatopsyche Net-Spinning Caddisfly 4
Parachaetocladius Non-Biting Midge 3
Elmidae Riffle Beetle 3
Optioservus Riffle Beetle 2
Prostoia Spring Stonefly 2
Corynoneura Non-Biting Midges 2
Tanytarsini Non-Biting Midges 2
Chimarra Fingernet Caddisfly 2
Chloroperlidae Green Stonefly 1
Cricotopus/Orthocladius Midge 1
Orthocladiinae Midge 1
Stilocladius Midge 1
Tubificidae Aquatic Worm 1
Stegopterna Black Fly 1
Diamesa Bloodworm 1
Neophylax Caddisfly 1
Ameletus Combmouthed Minnow Mayfly 1
Antocha Crane Fly 1
Hemerodromia Tiny Fly 1
Baetidae Small Minnow Mayfly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
