MBSS Site Summary for: LWIN-108-X-2012

Site Photos

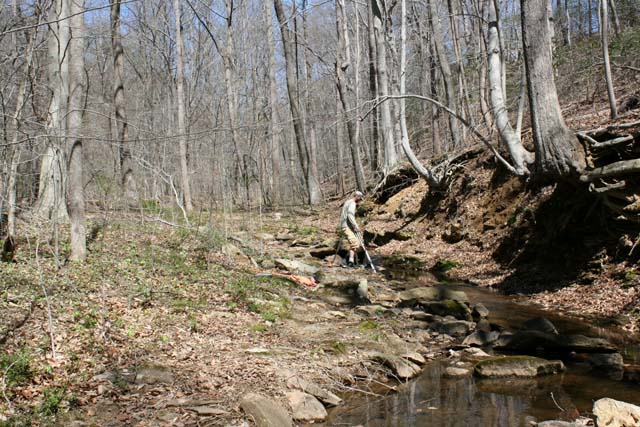

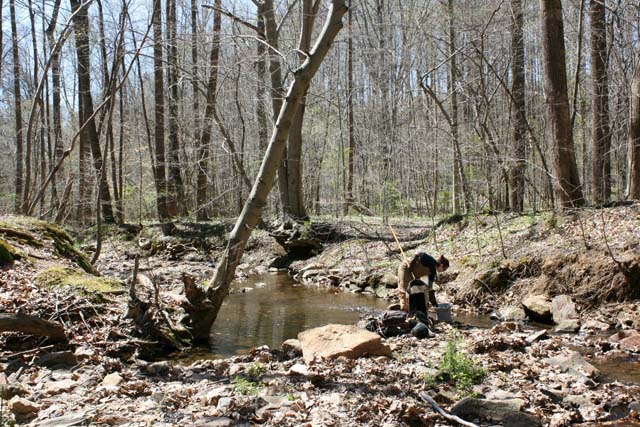

Field photo showing stream conditions at site LWIN-108-X-2012_Mid-point_Downstream (Opens in a new window) Field photo showing stream conditions at site LWIN-108-X-2012_Mid-point_Upstream (Opens in a new window)

Located on LOWER WINTERS RUN UT in the Lower Winters Run watershed, 8-digit code: 02130702.
This stream was visited in the spring on 4/3/2012 and again in the summer on 6/14/2012.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 4.3 / 5.0
Benthic IBI Fair - 3.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 412 acres A highly channelized urban stream with concrete banks. An example of a highly channelized urban stream.
Urban Land Use 50.5 %
Agricultural Land Use 26.1 %
Forested Land Use 23.4 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 16/20 (Optimal)
Epifaunal Substrate 11/20 (Suboptimal)
Velocity/Depth Diversity 15/20 (Suboptimal)
Pool Quality
Pool Extent = 43 meters 		16/20 (Optimal)
Riffle Quality
Riffle Extent = 52 meters 		14/20 (Suboptimal)
Shading 90 %
Embeddedness 55 %
The embeddedness, a measure of silt on the stream bottom, was 55%. This is relatively high, and may exclude some biota.


Stream Water Quality:
No water quality measurements available for this site.

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 12 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blue Ridge Sculpin 102
Creek Chub 55
Blacknose Dace 52
Rosyside Dace 28
Margined Madtom 10
Bluntnose Minnow 9
American Eel 8
Longnose Dace 8
Pumpkinseed 1
Redbreast Sunfish 1
River Chub 1
White Sucker 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Water Snake

Crayfish:
Cambarus bartonii bartonii
Orconectes limosus
Orconectes virilis

Exotic Plants:
Garlic Mustard
Japanese Honeysuckle
Japanese Stiltgrass
Multiflora Rose
Oriental Bittersweet


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Dolophilodes Medium Evening Sedge Caddisfly 25
Orthocladius Non-Biting Midges 24
EMPIDIDAE Dance Fly 14
Polypedilum Non-Biting Midges 7
Eukiefferiella Non-Biting Midges 6
Simulium Black Fly 6
Orthocladiinae Midge 4
Tvetenia Non-Biting Midges 4
Acentrella Tiny Blue-Winged Olive Mayflies 4
Cheumatopsyche Net-Spinning Caddisfly 3
Clinocera Aquatic Dance Fly 2
Ferrissia Small Air-Breathing Freshwater Limpets 2
Potthastia Non-Biting Midges 2
Micropsectra Non-Biting Midges 2
Eurylophella Mayfly 2
Amphinemura Spring Stonefly 1
Prosimulium Black Fly 1
Antocha Crane Fly 1
Tipula Crane Fly 1
Hydropsyche Net-Spinning Caddisfly 1
Ablabesmyia Non-Biting Midge 1
Brillia Non-Biting Midges 1
Corynoneura Non-Biting Midges 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
