MBSS Site Summary for: LWIN-108-X-2015

Site Photos

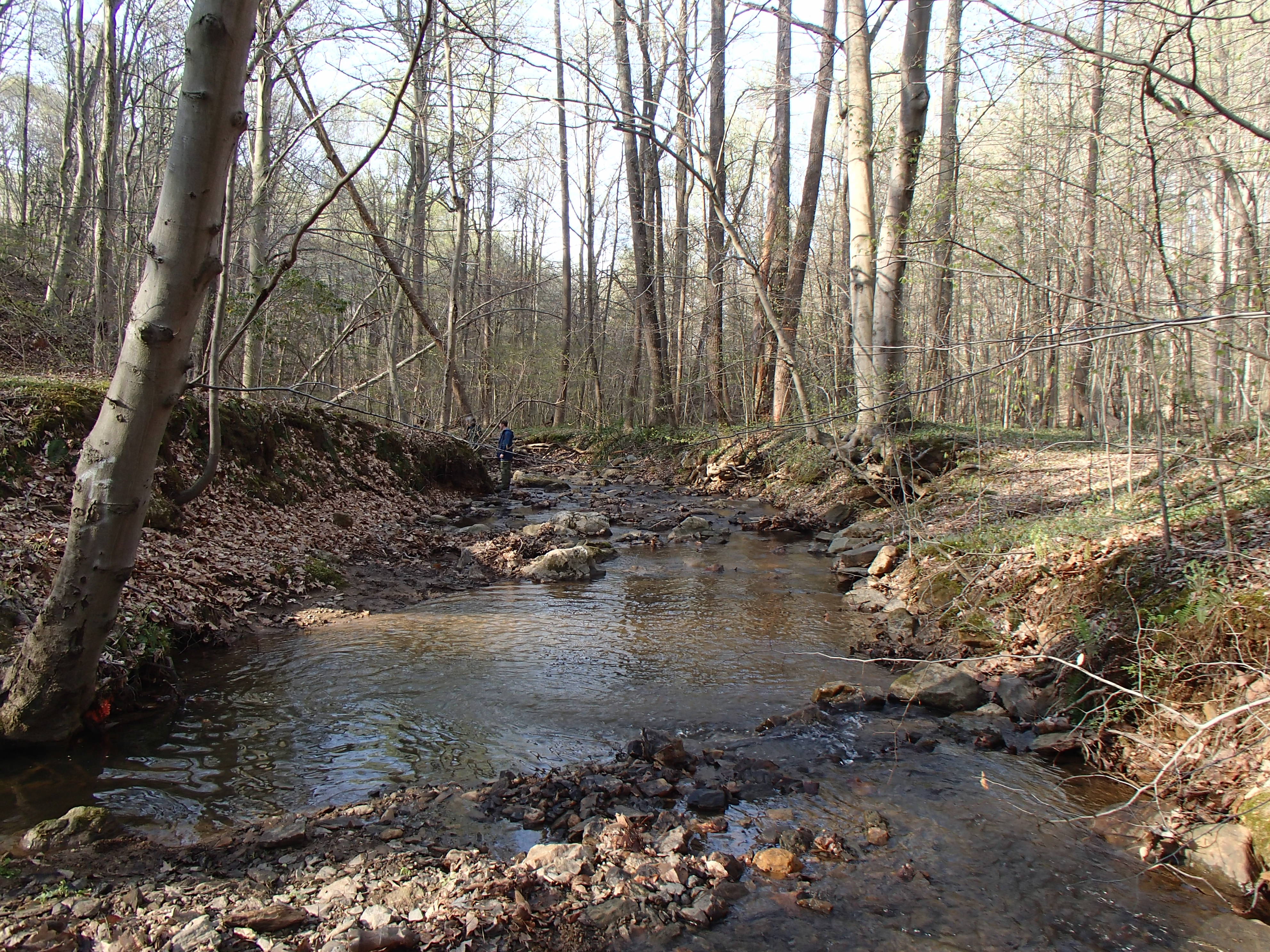

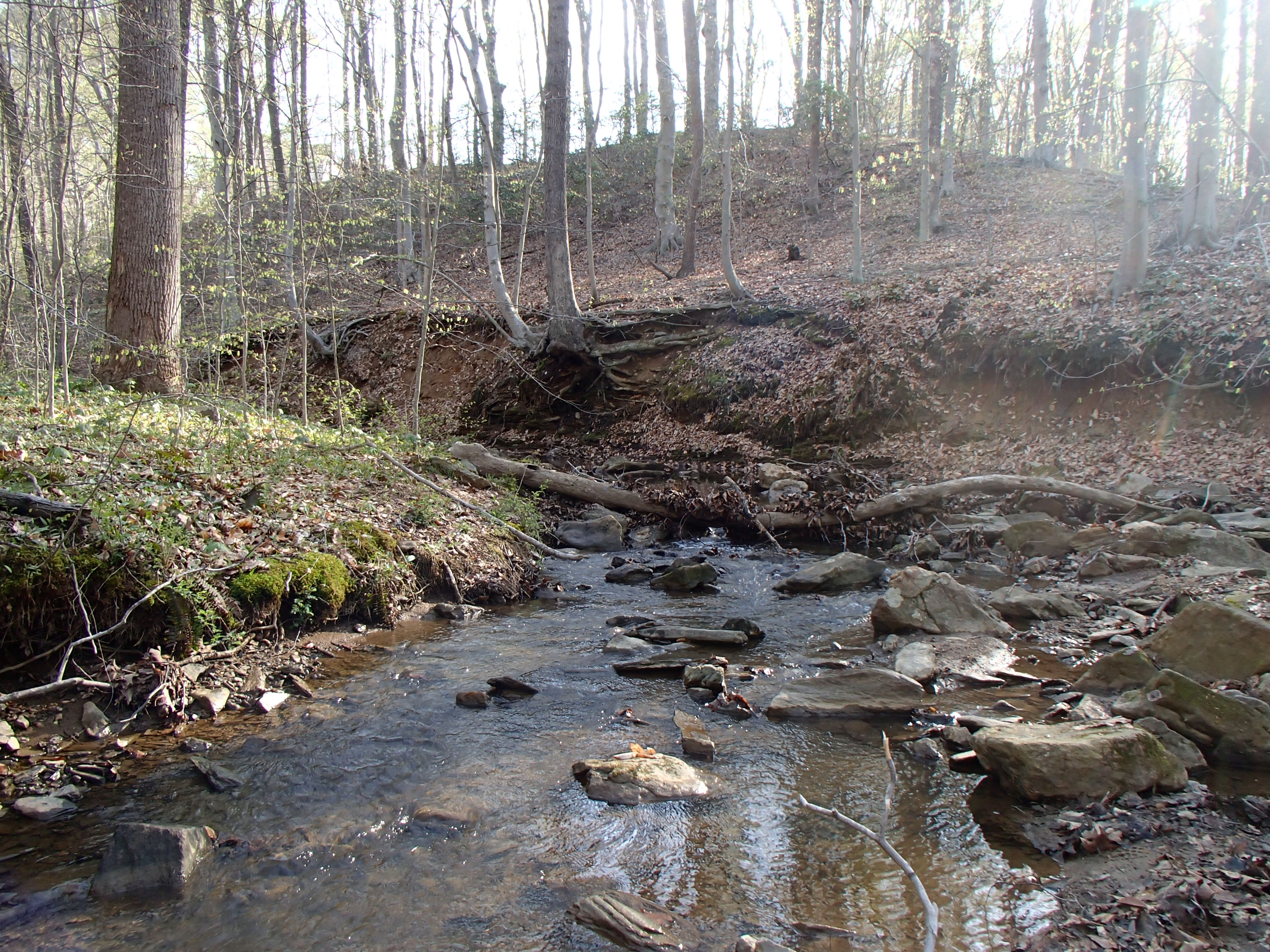

Field photo showing stream conditions at site LWIN-108-X-2015_Midpoint-downstream (Opens in a new window) Field photo showing stream conditions at site LWIN-108-X-2015_Midpoint-upstream (Opens in a new window)

Located on WINTERS RUN UT in the Lower Winters Run watershed, 8-digit code: 02130702.
This stream was visited in the spring on 4/22/2015 and again in the summer on 6/22/2015.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 4.3 / 5.0
Benthic IBI Poor - 2.3 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 412 acres A highly channelized urban stream with concrete banks. An example of a highly channelized urban stream.
Urban Land Use 73 %
Agricultural Land Use 2.6 %
Forested Land Use 23.9 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 15/20 (Suboptimal)
Epifaunal Substrate 15/20 (Suboptimal)
Velocity/Depth Diversity 12/20 (Suboptimal)
Pool Quality
Pool Extent = 38 meters 		12/20 (Suboptimal)
Riffle Quality
Riffle Extent = 49 meters 		16/20 (Optimal)
Shading 85 %
Embeddedness 20 %


Stream Water Quality:
pH (lab) 7.67
Alkalinity
(acid neutralizing capacity) 		1136.1 µeq/L
Dissolved organic carbon (DOC) 2.1679 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 11 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blue Ridge Sculpin 77
Blacknose Dace 45
Creek Chub 36
Rosyside Dace 36
Margined Madtom 15
American Eel 8
Longnose Dace 8
Bluntnose Minnow 2
Tessellated Darter 2
Fallfish 1
Redbreast Sunfish 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Eastern Snapping Turtle
Northern Green Frog
Wood Frog

Crayfish:
Cambarus bartonii bartonii
Orconectes limosus
Orconectes virilis

Exotic Plants:
Japanese Stiltgrass
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Orthocladius Non-Biting Midges 52
Amphinemura Spring Stonefly 13
Polypedilum Non-Biting Midges 7
Antocha Crane Fly 5
Diamesa Bloodworm 4
Cheumatopsyche Net-Spinning Caddisfly 4
Orthocladiinae Midge 3
Tipula Crane Fly 2
Chimarra Fingernet Caddisfly 2
Philopotamidae Fingernet Caddisfly 2
Chironomini Non-Biting Midge 2
Tanytarsini Non-Biting Midges 2
Ironoquia Northern Caddisfly 1
Heptageniidae Flathead Mayfly 1
Maccaffertium March Brown And Cahill Mayfly 1
Empididae Dance Fly 1
Clinocera Aquatic Dance Fly 1
Simulium Black Fly 1
Diplectrona Net-Spinning Caddisfly 1
Ablabesmyia Non-Biting Midge 1
Tanypodinae Non-Biting Midges 1
Parametriocnemus Non-Biting Midges 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
