MBSS Site Summary for: LWIN-115-R-2004

Site Photos

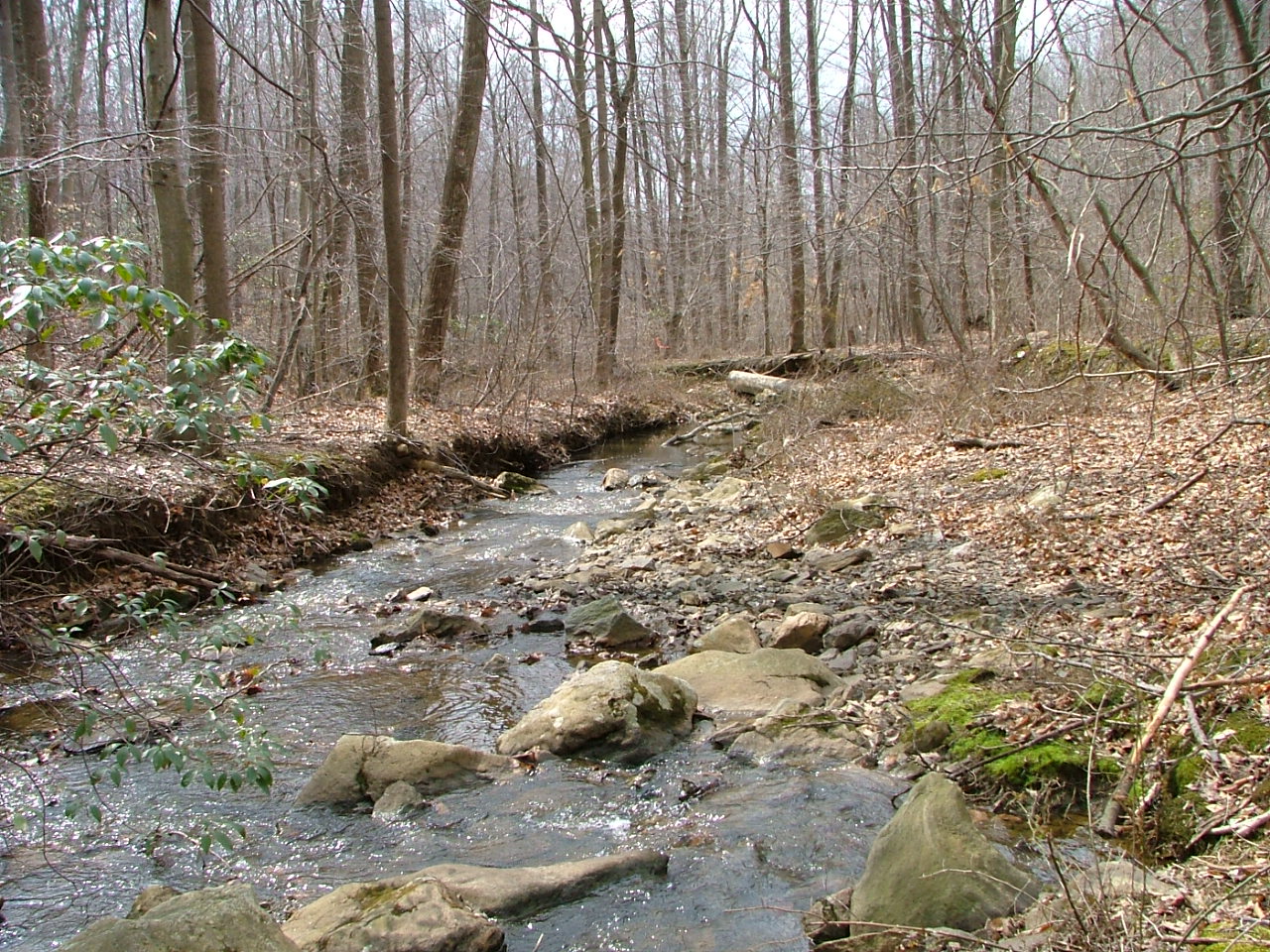

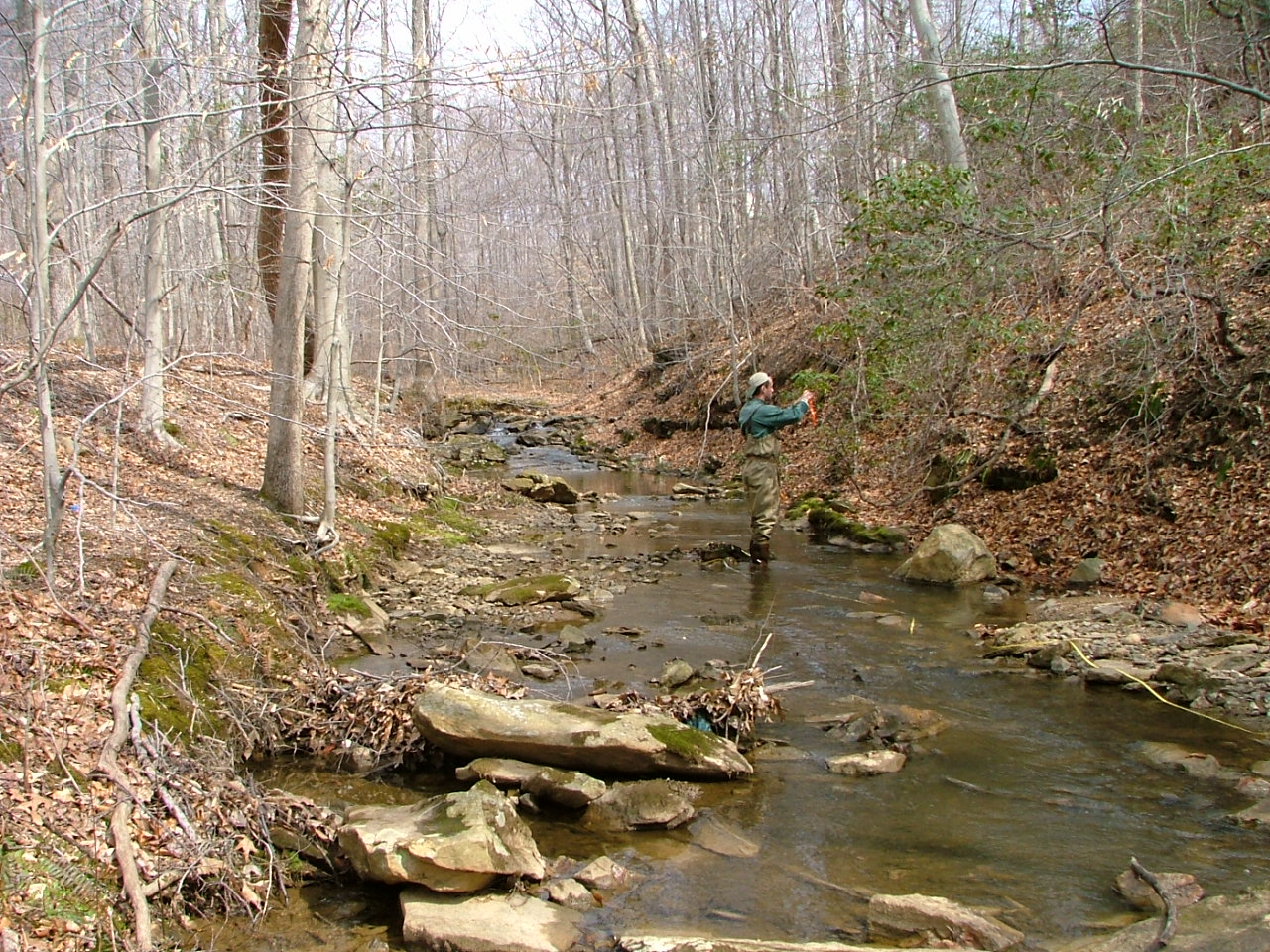

Field photo showing stream conditions at site LWIN-115-R-2004-1 (Opens in a new window) Field photo showing stream conditions at site LWIN-115-R-2004-2 (Opens in a new window)

Located on WINTERS RUN UT 2 in the Lower Winters Run watershed, 8-digit code: 02130702.
This stream was visited in the spring on 3/18/2004 and again in the summer on 7/15/2004.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 4.3 / 5.0
Benthic IBI Poor - 1.0 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 426 acres A highly channelized urban stream with concrete banks. An example of a highly channelized urban stream.
Urban Land Use 50 %
Agricultural Land Use 26 %
Forested Land Use 23 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 16/20 (Optimal)
Epifaunal Substrate 14/20 (Suboptimal)
Velocity/Depth Diversity 13/20 (Suboptimal)
Pool Quality
Pool Extent = 28 meters 		13/20 (Suboptimal)
Riffle Quality
Riffle Extent = 51 meters 		15/20 (Suboptimal)
Shading 95 %
Embeddedness 30 %


Stream Water Quality:
Water temperature 20.6 ° C
Dissolved oxygen (DO) 7.7 mg/L
pH (lab) 7.69
Conductivity 130 µmho/cm
Alkalinity
(acid neutralizing capacity) 		799.5 µeq/L
Dissolved organic carbon (DOC) 1.8 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 12 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 216
Blue Ridge Sculpin 185
Creek Chub 108
White Sucker 58
Rosyside Dace 46
Longnose Dace 37
Fallfish 20
Bluntnose Minnow 19
American Eel 7
Common Shiner 2
Margined Madtom 2
Largemouth Bass 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
American Bullfrog
Eastern American Toad
Northern Two-Lined Salamander

Crayfish:
No crayfish noted.

Exotic Plants:
Japanese Honeysuckle
Japanese Stiltgrass
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Orthocladius Non-Biting Midges 51
Diamesa Bloodworm 31
Hydrobaenus Midge 5
Prosimulium Black Fly 4
Sympotthastia Non-Biting Midges 2
Tvetenia Non-Biting Midges 1
Orthocladiinae Midge 1
Hydropsyche Net-Spinning Caddisfly 1
Micropsectra Non-Biting Midges 1
Prostoma Freshwater Nemertean (Ribbon Worm) 1
Rheosmittia Non-Biting Midges 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
