MBSS Site Summary for: LWIN-120-R-2004

Site Photos

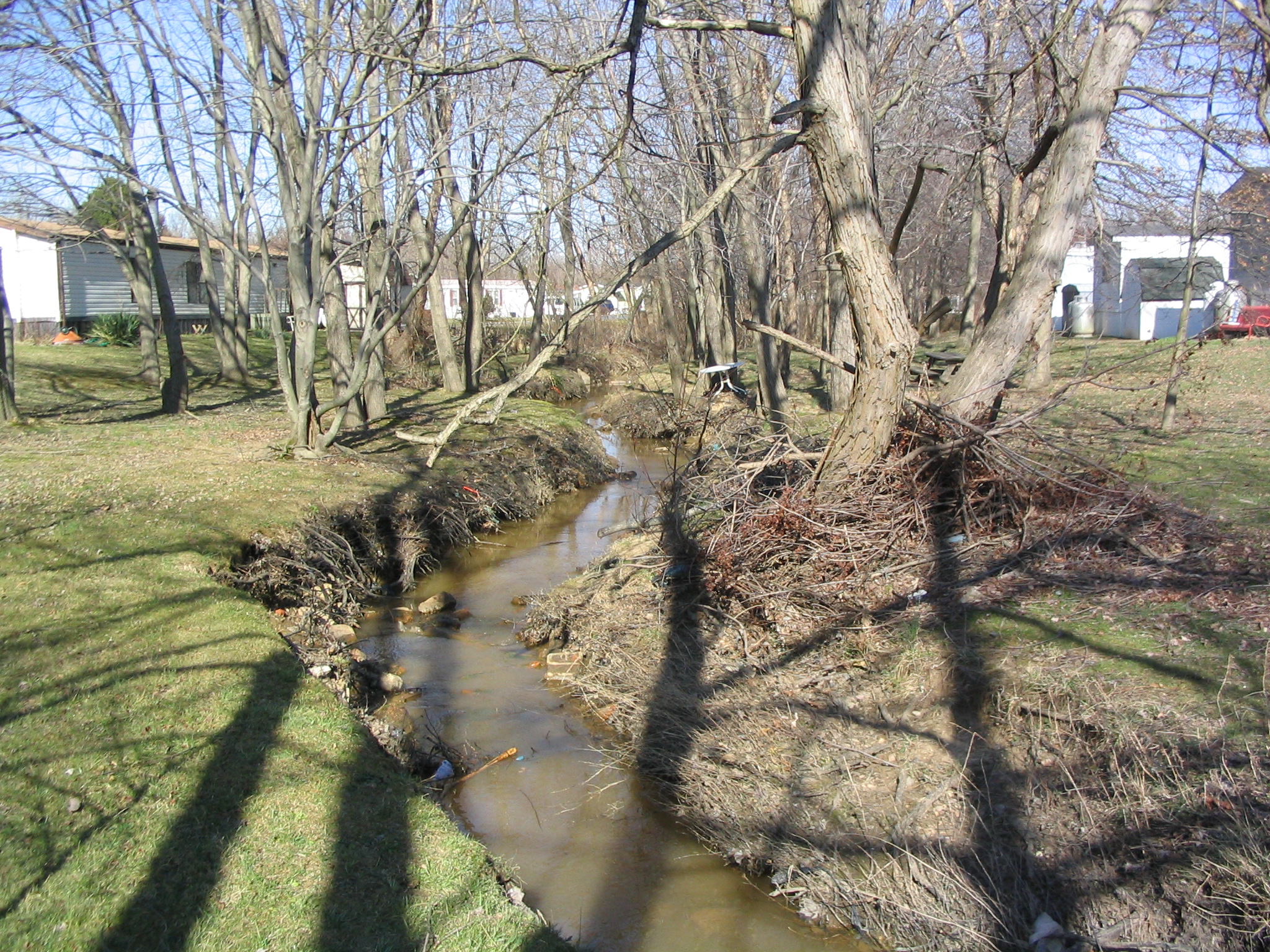

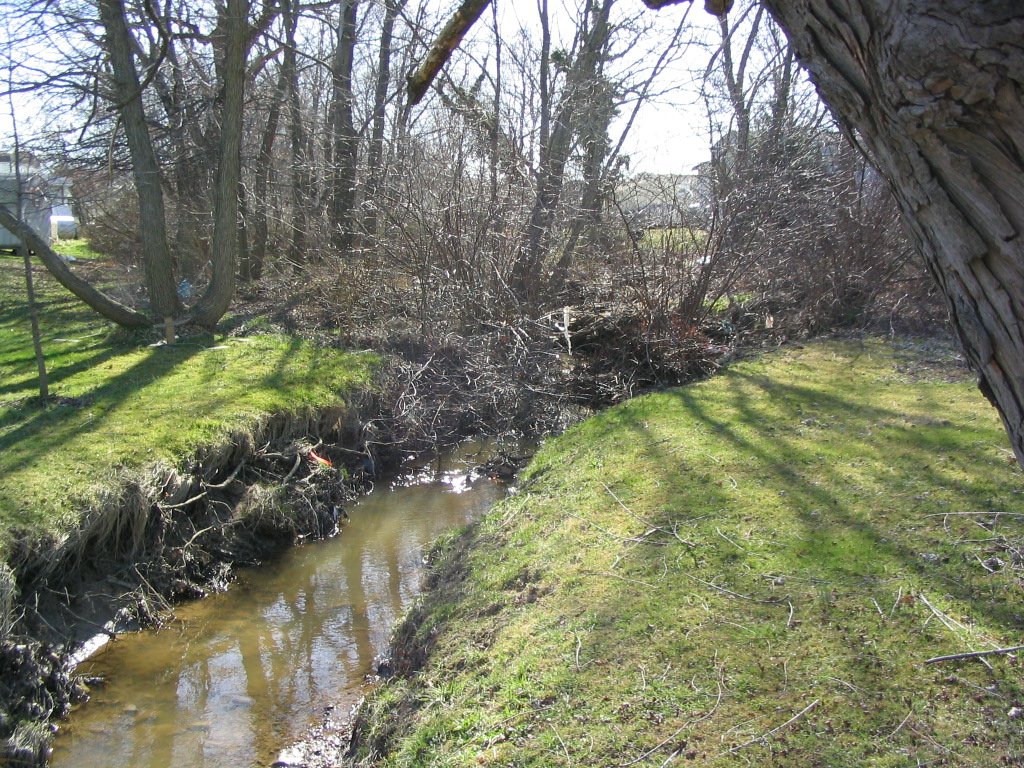

Field photo showing stream conditions at site LWIN-120-R-2004-6 (Opens in a new window) Field photo showing stream conditions at site LWIN-120-R-2004-7 (Opens in a new window)

Located on WINTERS RUN UT 4 in the Lower Winters Run watershed, 8-digit code: 02130702.
This stream was visited in the spring on 3/15/2004 and again in the summer on 6/22/2004.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Fair - 3.0 / 5.0
Benthic IBI Poor - 2.4 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 558 acres A highly channelized urban stream with concrete banks. An example of a highly channelized urban stream.
Urban Land Use 59 %
Agricultural Land Use 15 %
Forested Land Use 25 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 9/20 (Marginal)
Epifaunal Substrate 8/20 (Marginal)
Velocity/Depth Diversity 11/20 (Suboptimal)
Pool Quality
Pool Extent = 67 meters 		12/20 (Suboptimal)
Riffle Quality
Riffle Extent = 8 meters 		6/20 (Marginal)
Shading 80 %
Embeddedness 50 %


Stream Water Quality:
Water temperature 21.4 ° C
Dissolved oxygen (DO) 6.2 mg/L
pH (lab) 7.26
Conductivity 376 µmho/cm
Alkalinity
(acid neutralizing capacity) 		627.2 µeq/L
Dissolved organic carbon (DOC) 2.9 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 6 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Creek Chub 92
Redbreast Sunfish 27
Creek Chubsucker 8
Rosyside Dace 4
Fathead Minnow 2
Blacknose Dace 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
American Bullfrog
Northern Green Frog
Northern Two-Lined Salamander
Northern Watersnake

Crayfish:
Orconectes
Procambarus

Exotic Plants:
Japanese Honeysuckle
Japanese Stiltgrass
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Thienemannimyia group Non-Biting Midges 39
Limnodrilus Worm 19
Orthocladius Non-Biting Midges 19
Tubificidae Aquatic Worm 12
Cheumatopsyche Net-Spinning Caddisfly 10
Natarsia Non-Biting Midges 10
Antocha Crane Fly 6
Tipula Crane Fly 6
Hydropsyche Net-Spinning Caddisfly 5
Cryptochironomus Non-Biting Midges 2
Lumbriculidae Worm 2
Stenochironomus European Non-Biting Midge 2
Xylotopus Midge 2
Enallagma Narrow-Winged Damselfly 1
Stenelmis Beetle 1
Gordiidae Horsehair Worm 1
Caecidotea Isopod 1
Tribelos Non-Biting Midges 1
Boyeria Spotted Darner Dragonfly 1
Parametriocnemus Non-Biting Midges 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
