MBSS Site Summary for: MAGO-104-R-2017

Site Photos

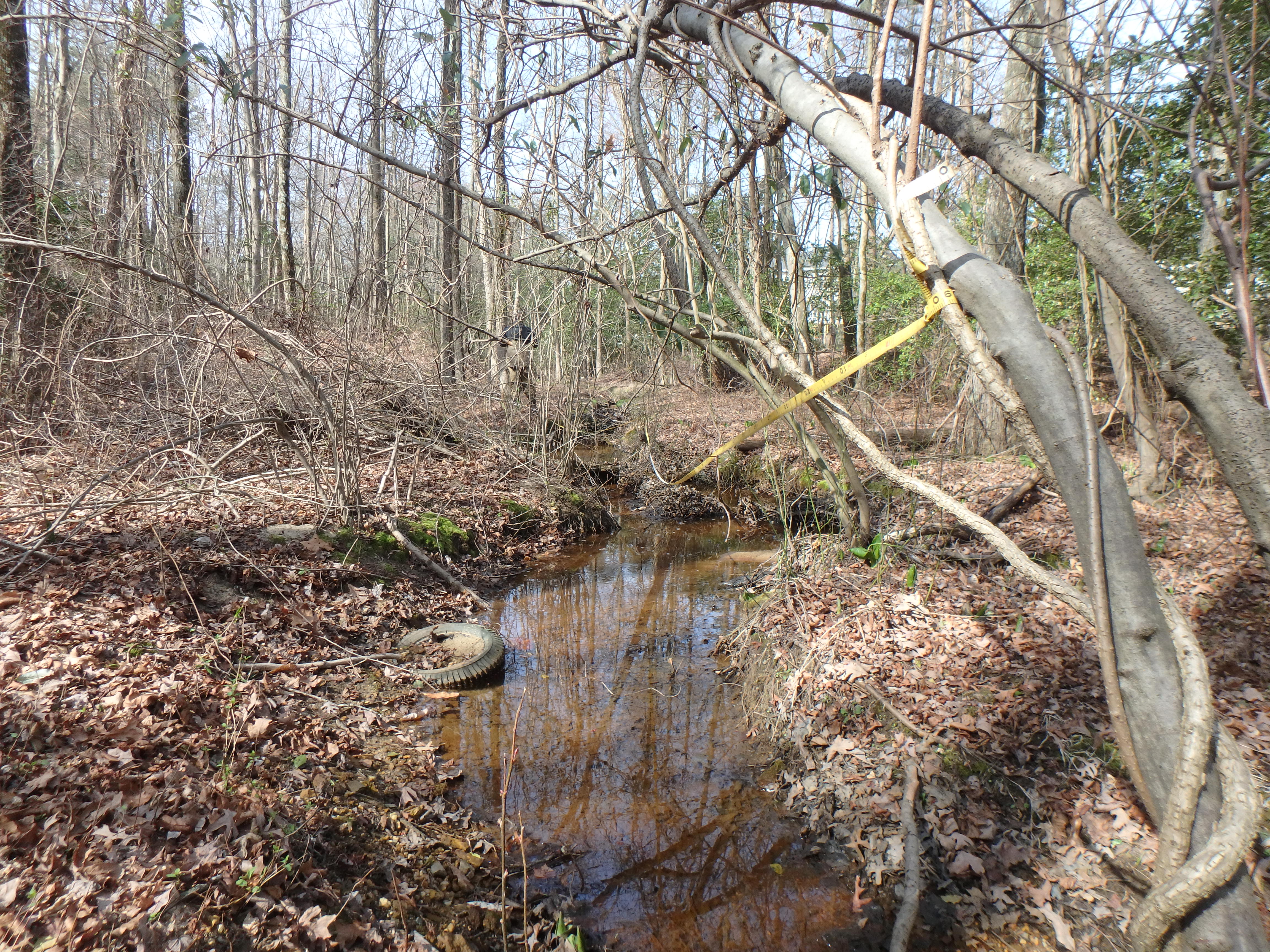

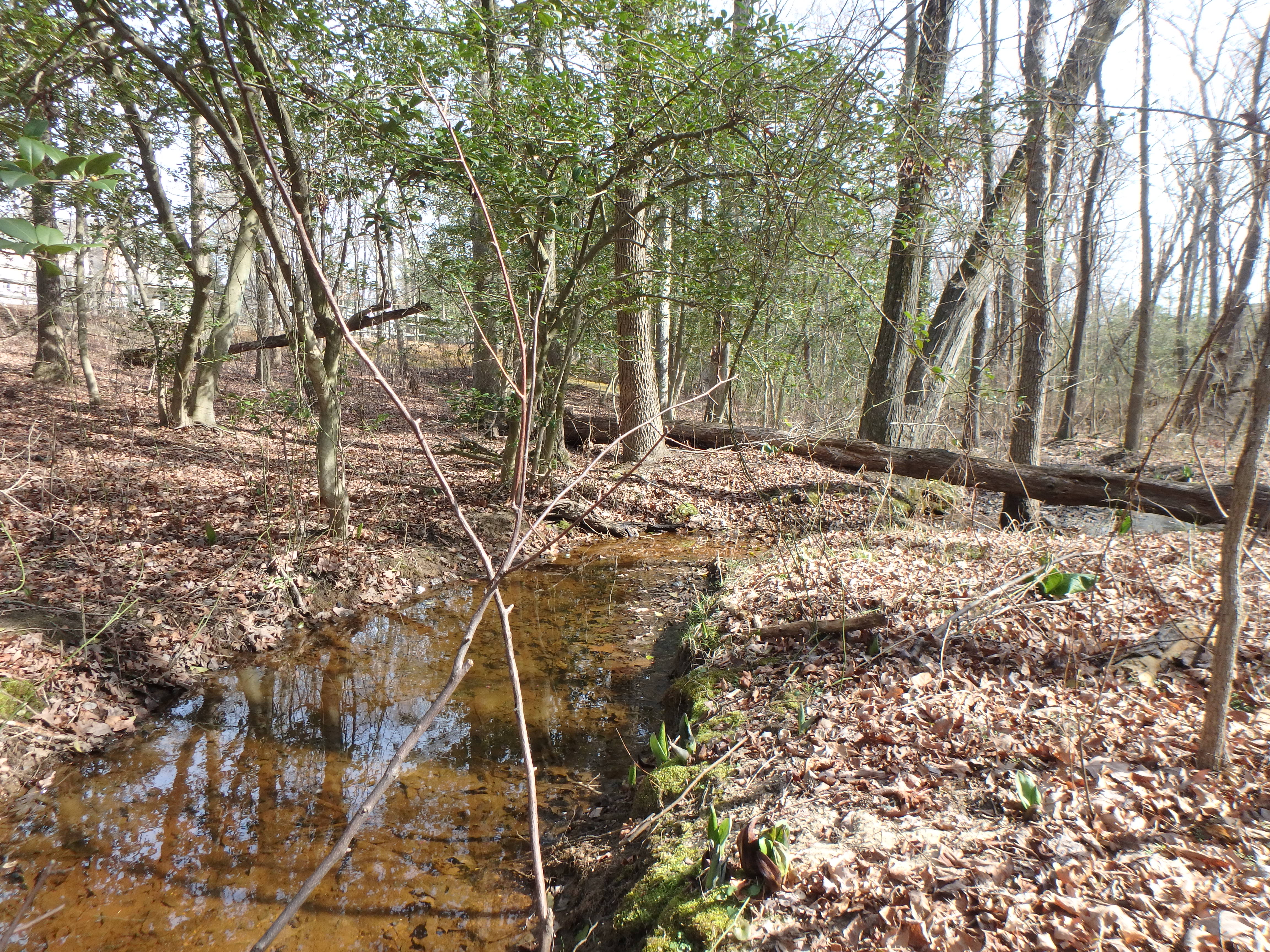

Field photo showing stream conditions at site MAGO-104-R-2017-MidpointLookingDownstream (Opens in a new window) Field photo showing stream conditions at site MAGO-104-R-2017-MidpointLookingUpstream (Opens in a new window)

Located on UT Magothy River in the Magothy River watershed, 8-digit code: 02131001.
This stream was visited in the spring on 3/13/2017 and again in the summer on 6/6/2017.

Located on UT Magothy River in the Magothy River watershed, 8-digit code: 02131001.
This stream was visited in the spring on 3/13/2017 and again in the summer on 6/6/2017.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 1.71.7 / 5.0
Benthic IBI Poor - 1.61.6 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 225 acres A highly channelized urban stream with concrete banks. An example of a highly channelized urban stream.
Urban Land Use 88.4 %
Agricultural Land Use 0 %
Forested Land Use 11.2 %
Catchment area 225 acres A highly channelized urban stream with concrete banks. An example of a highly channelized urban stream.
Urban Land Use 88.4 %
Agricultural Land Use 0 %
Forested Land Use 11.2 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 66/20 (Marginal)
Epifaunal Substrate 33/20 (Poor)
Velocity/Depth Diversity 44/20 (Poor)
Pool Quality
Pool Extent = 6969 meters 		77/20 (Marginal)
Riffle Quality
Riffle Extent = 66 meters 		66/20 (Marginal)
Shading 90 %
Embeddedness 40 %
Shading 90 %
Embeddedness 40 %


Stream Water Quality:
pH (lab) 6.65
Alkalinity
(acid neutralizing capacity) 		1197.3 µeq/L
Dissolved organic carbon (DOC) 4.9188 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 1 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Eastern Mosquitofish 13
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Northern Green Frog

Crayfish:
No crayfish noted.

Exotic Plants:
English Ivy
Japanese Barberry
Japanese Stiltgrass
Multiflora Rose
Phragmites


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
RHEOCRICOTOPUS Non-Biting Midges 73
HYDROBAENUS Midge 12
ORTHOCLADIUS Non-Biting Midges 8
TUBIFICIDAE Aquatic Worm 7
STEGOPTERNA Black Fly 6
LUMBRICULIDAE Worm 6
NEOPOROUS Predaceous Diving Beetle 3
MUSCULIUM Fingernail Clam 2
ORTHOCLADIINAE Midge 2
NEMATODA Nematode 1
DIPLOCLADIUS Non-Biting Midges 1
PTILOSTOMIS Giant Casemaker Caddisfly 1
BEZZIA Biting Midge 1
PISIDIIDAE Pill Clam 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
