MBSS Site Summary for: MANO-117-R-2003

Site Photos

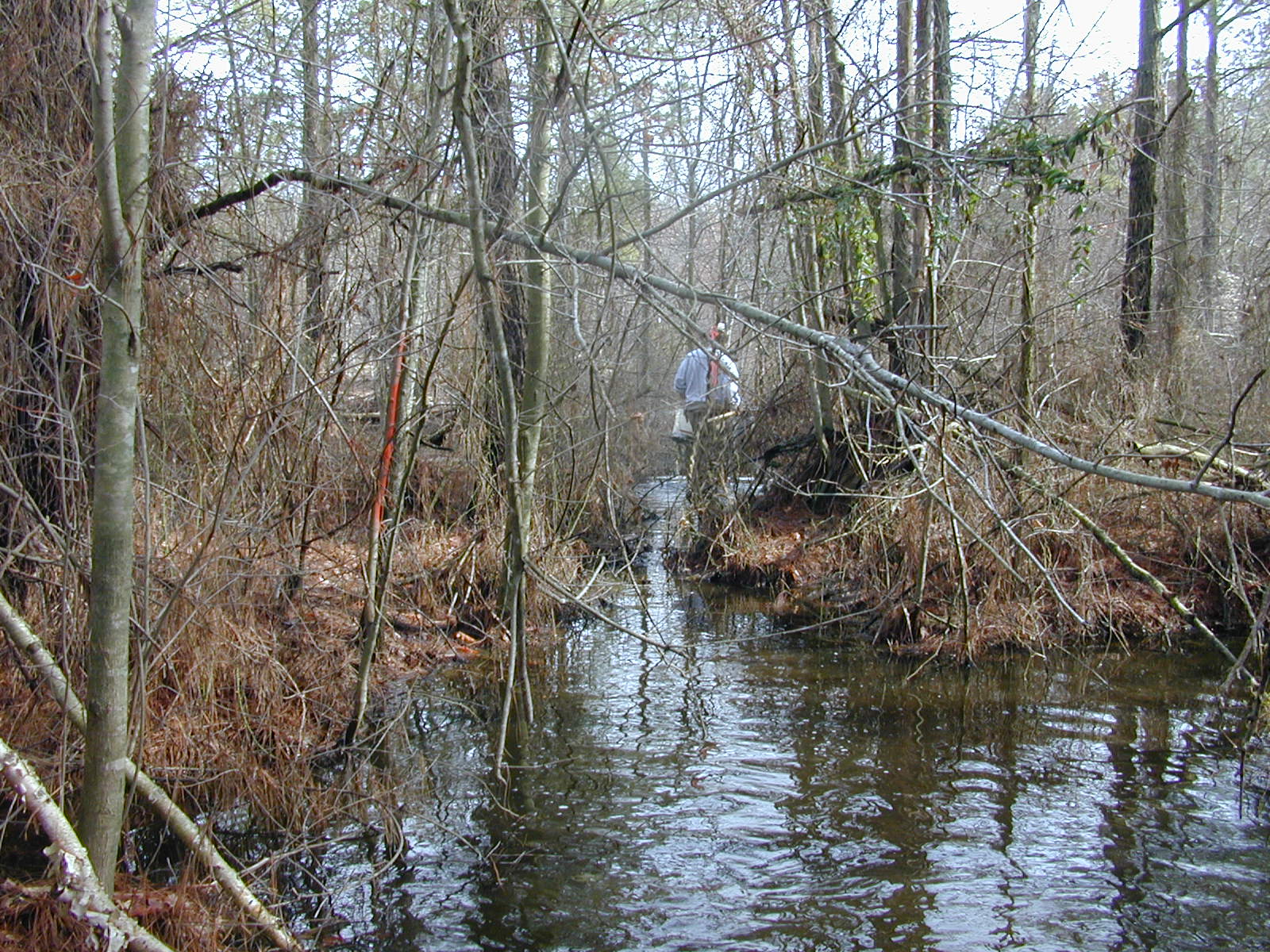

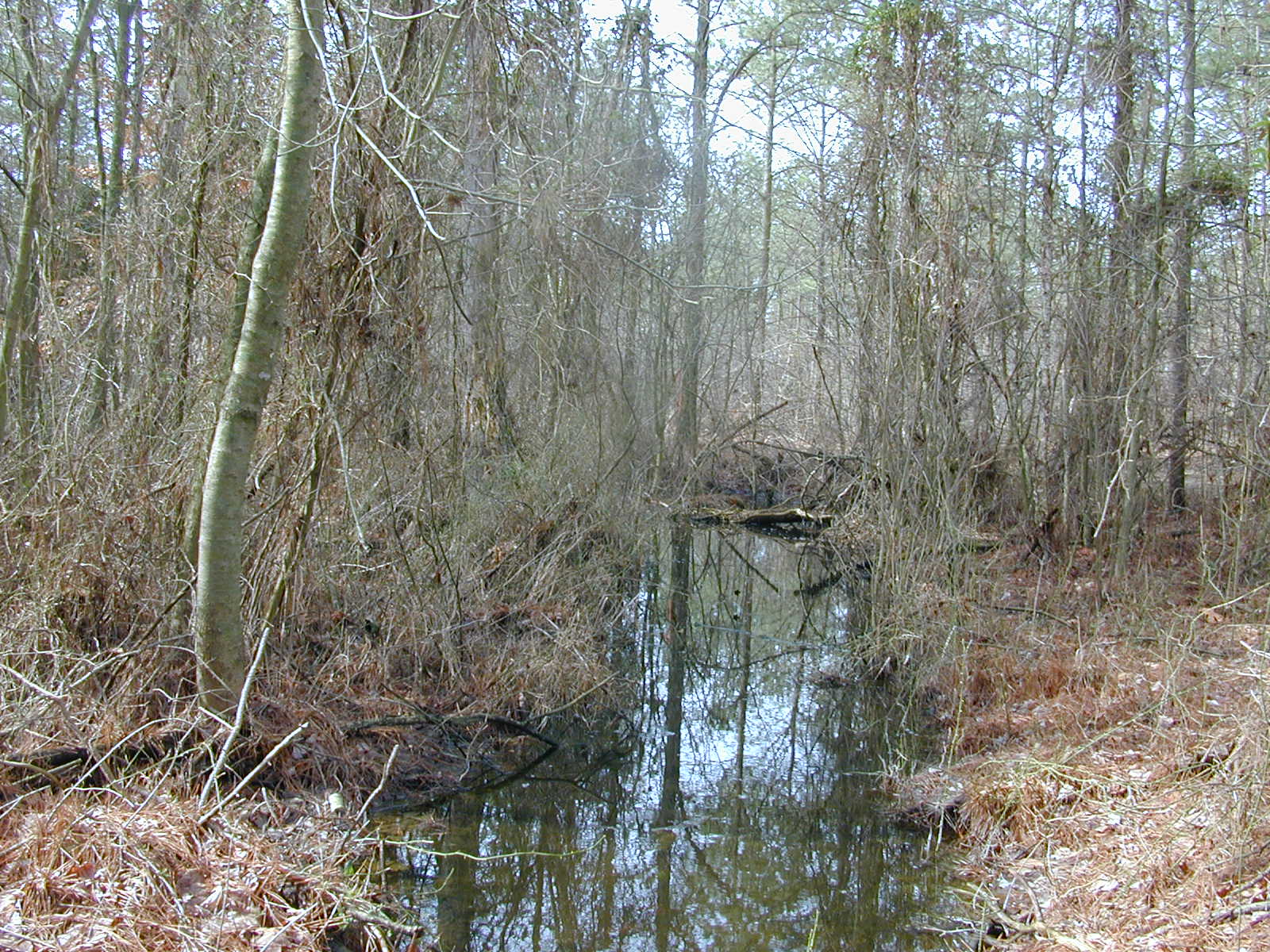

Field photo showing stream conditions at site MANO-117-R-2003-0877 (Opens in a new window) Field photo showing stream conditions at site MANO-117-R-2003-0878 (Opens in a new window)

Located on MOORE BR in the Manokin River watershed, 8-digit code: 02130208.
This stream was visited in the spring on 3/18/2003 and again in the summer on 7/8/2003.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 1.0 / 5.0
Benthic IBI Poor - 1.6 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 858 acres A stream flowing through a densely forested area. An example of a forested stream.
Urban Land Use 0 %
Agricultural Land Use 12 %
Forested Land Use 87 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 2/20 (Poor)
Epifaunal Substrate 2/20 (Poor)
Velocity/Depth Diversity 1/20 (Poor)
Pool Quality
Pool Extent = 32 meters 		6/20 (Marginal)
Riffle Quality
Riffle Extent = 0 meters 		0/20 (Poor)
Shading 96 %
Embeddedness 100 %
The embeddedness, a measure of silt on the stream bottom, was 100%. This is very high, and may adversely affect biotic communities.
Several measures of instream habitat were considered 'Poor' at this location.


Stream Water Quality:
Water temperature 35.2 ° C
Dissolved oxygen (DO) 6.6 mg/L
pH (lab) 5.74
Conductivity 91 µmho/cm
Alkalinity
(acid neutralizing capacity) 		127.4 µeq/L
Dissolved organic carbon (DOC) 21.8 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 1 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Eastern Mudminnow 4
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Fowler's Toad
Southern Leopard Frog

Crayfish:
No crayfish noted.

Exotic Plants:
Japanese Honeysuckle
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Orthocladius Non-Biting Midges 48
Caecidotea Isopod 41
Aedes Mosquito 6
Crangonyx Amphipod 5
Cura Flatworm 2
Lumbriculidae Worm 2
Placobdella 1
Pseudorthocladius Non-Biting Midges 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
