MBSS Site Summary for: NANJ-101-B-2008

Site Photos

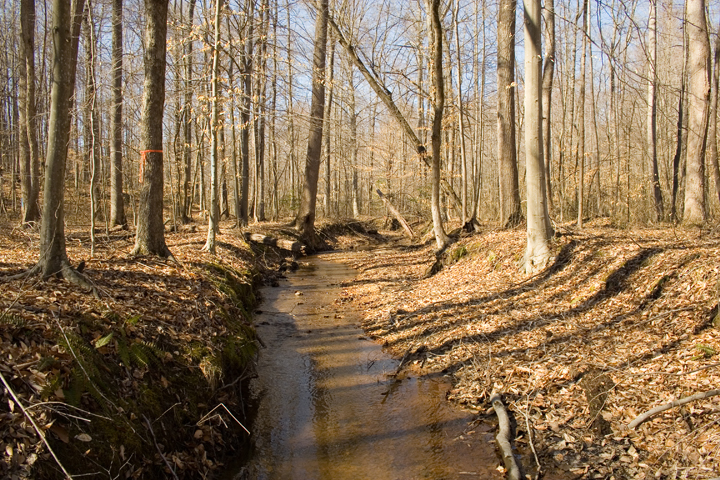

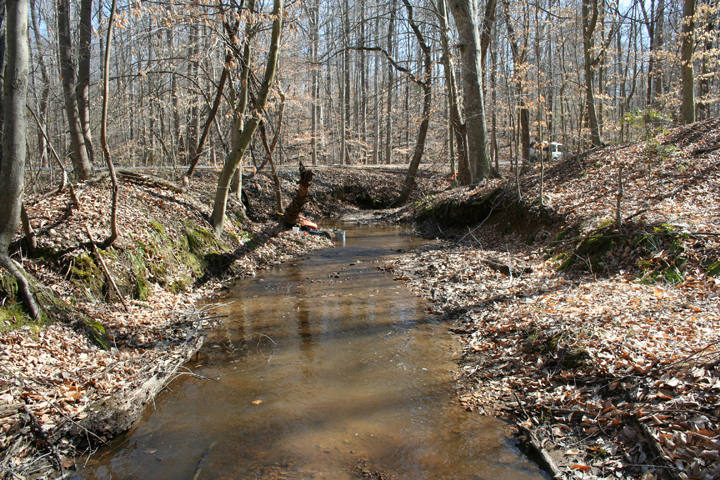

Field photo showing stream conditions at site NANJ-101-B-2008-1 (Opens in a new window) Field photo showing stream conditions at site NANJ-101-B-2008-2 (Opens in a new window)

Located on UT TO WARD'S RUN in the Nanjemoy Creek watershed, 8-digit code: 02140110.
This stream was visited in the spring on 3/12/2008 and again in the summer on 6/10/2008.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Fair - 3.3 / 5.0
Benthic IBI Good - 4.7 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)

Catchment area 428 acres A stream flowing through a densely forested area. An example of a forested stream.
Urban Land Use 0.3 %
Agricultural Land Use 8.2 %
Forested Land Use 90.6 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat

Instream Habitat 9/20 (Marginal)
Epifaunal Substrate 8/20 (Marginal)
Velocity/Depth Diversity 11/20 (Suboptimal)
Pool Quality
Pool Extent = 60 meters
11/20 (Suboptimal)
Riffle Quality
Riffle Extent = 17 meters
8/20 (Marginal)
Shading 70 %
Embeddedness 55 %
The embeddedness, a measure of silt on the stream bottom, was 55%. This is relatively high, and may exclude some biota.


Stream Water Quality:

Water temperature 21.4 ° C
Dissolved oxygen (DO) 8.1 mg/L
pH (lab) 5.85
Conductivity 29 µmho/cm
Alkalinity
(acid neutralizing capacity)
31.1 µeq/L
Dissolved organic carbon (DOC) 4.5318 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health.
Close-up of a mayfly indicator species.

Fish Survey Results:

The following 5 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Blacknose Dace 11
Least Brook Lamprey 6
Eastern Mudminnow 2
Fallfish 2
Rosyside Dace 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:

American Bullfrog
Northern Green Frog
Northern Two-Lined Salamander

Crayfish:

Cambarus bartonii bartonii
Cambarus diogenes

Exotic Plants:

Japanese Stiltgrass


Benthic Macroinvertebrates:

Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Tanytarsus Non-Biting Midges 10
Maccaffertium March Brown And Cahill Mayfly 9
Hexatoma Crane Fly 7
Stegopterna Black Fly 6
Parametriocnemus Non-Biting Midges 6
Lumbriculidae Worm 5
Stempellinella Non-Biting Midges 5
Stenelmis Beetle 4
Psilotreta Mortarjoint Casemaker Caddisfly 3
Thienemannimyia Group Non-Biting Midges 3
Cheumatopsyche Net-Spinning Caddisfly 3
Boyeria Spotted Darner Dragonfly 3
Elmidae Riffle Beetle 2
Ablabesmyia Non-Biting Midge 2
Unniella Non-Biting Midge 2
Eukiefferiella Non-Biting Midges 2
Zavrelimyia Non-Biting Midges 2
Stenochironomus European Non-Biting Midge 2
Lanthus Clubtail Dragonfly 2
Bezzia Biting Midge 1
Crangonyx Amphipod 1
Spirosperma Aquatic Oligochaete Worm 1
Naididae Aquatic Worm 1
Tubificidae Aquatic Worm 1
Triaenodes Long-Horned Caddisfly 1
Pseudolimnophila Crane Fly 1
Nemouridae Nemourid Stonefly 1
Nigronia Megaloptera (Dark Fishfly) 1
Limnephilidae Northern Casemaker Caddisfly 1
Leptophlebiidae Pronggilled Mayfly 1
Rheocricotopus Non-Biting Midges 1
Rheotanytarsus Non-Biting Midges 1
Thienemanniella Non-Biting Midges 1
Labrundinia Non-Biting Midges 1
Orthocladius Non-Biting Midges 1
Alotanypus Non-Biting Midges 1
Procladius Non-Biting Midge 1
Psectrocladius Non-Biting Midge 1
Hydropsyche Net-Spinning Caddisfly 1
Optioservus Riffle Beetle 1
Oulimnius Riffle Beetle 1
Isoperla Stripetail Stonefly 1
Eccoptura Yellow Stone Stonefly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
