MBSS Site Summary for: NANJ-115-R-2014

Site Photos

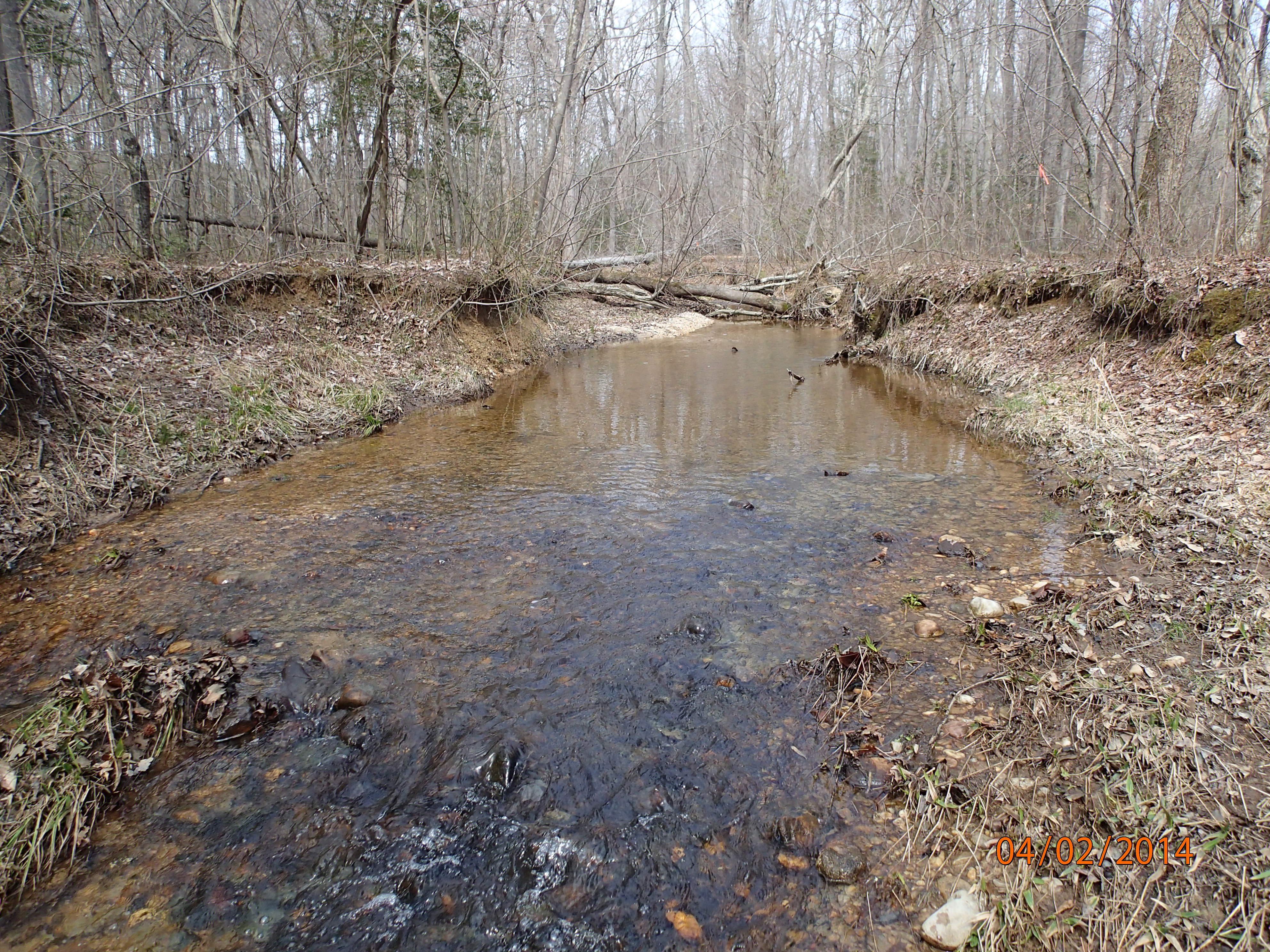

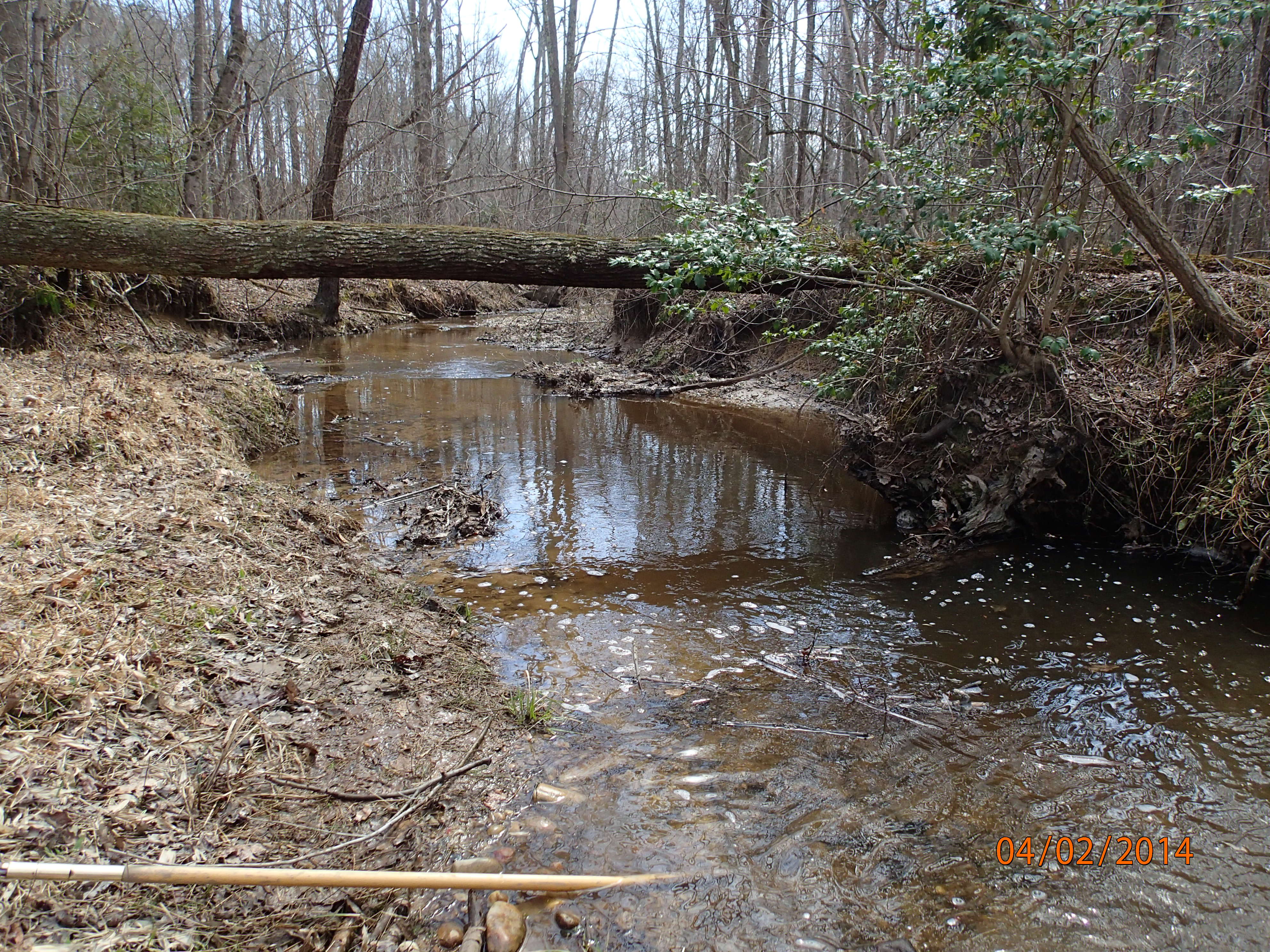

Field photo showing stream conditions at site NANJ-115-R-2014-MidpointDownstream (Opens in a new window) Field photo showing stream conditions at site NANJ-115-R-2014-MidpointUpstream (Opens in a new window)

Located on HILL TOP FORK UT in the Nanjemoy Creek watershed, 8-digit code: 02140110.
This stream was visited in the spring on 4/2/2014 and again in the summer on 6/26/2014.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 5.0 / 5.0
Benthic IBI Good - 4.7 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)

Catchment area 876 acres A highly channelized urban stream with concrete banks. An example of a highly channelized urban stream.
Urban Land Use 8.5 %
Agricultural Land Use 0.8 %
Forested Land Use 74.4 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat

Instream Habitat 16/20 (Optimal)
Epifaunal Substrate 15/20 (Suboptimal)
Velocity/Depth Diversity 15/20 (Suboptimal)
Pool Quality
Pool Extent = 52 meters
16/20 (Optimal)
Riffle Quality
Riffle Extent = 29 meters
9/20 (Marginal)
Shading 75 %
Embeddedness 55 %
The embeddedness, a measure of silt on the stream bottom, was 55%. This is relatively high, and may exclude some biota.


Stream Water Quality:

pH (lab) 6.05
Alkalinity
(acid neutralizing capacity)
47.2 µeq/L
Dissolved organic carbon (DOC) 5.8717 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health.
Close-up of a mayfly indicator species.

Fish Survey Results:

The following 14 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Rosyside Dace 77
Blacknose Dace 63
Redbreast Sunfish 45
Least Brook Lamprey 27
Tessellated Darter 24
Creek Chubsucker 19
Creek Chub 14
Eastern Mudminnow 14
Golden Shiner 14
American Eel 7
Green Sunfish 6
Bluegill 3
Chain Pickerel 2
White Sucker 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:

Eastern American Toad
Eastern Box Turtle
Eastern Cricket Frog
Eastern Red Spotted Newt
Northern Fence Lizard
Northern Green Frog
Northern Spring Peeper
Northern Water Snake

Crayfish:

Orconectes limosus
Procambarus clarkii

Exotic Plants:

Empress Tree
Japanese Honeysuckle
Japanese Stiltgrass
Multiflora Rose
Wineberry


Benthic Macroinvertebrates:

Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Cheumatopsyche Net-Spinning Caddisfly 42
Heptageniidae Flathead Mayfly 9
Maccaffertium March Brown And Cahill Mayfly 7
Hydropsyche Net-Spinning Caddisfly 6
Microtendipes Non-Biting Midges 6
Psephenus Water Penny 5
Stempellina 5
Polypedilum Non-Biting Midges 4
Rheocricotopus Non-Biting Midges 3
Simulium Black Fly 3
Nigronia Megaloptera (Dark Fishfly) 3
Pycnopsyche Great Autumn Brown Sedge Caddisfly 2
Oulimnius Riffle Beetle 2
Eukiefferiella Non-Biting Midges 2
Nyctiophylax 1
Eccoptura Yellow Stone Stonefly 1
Ancyronyx Spider Riffle Beetle 1
Amphinemura Spring Stonefly 1
Acerpenna Tiny Blue-Winged Olive Mayflies 1
Polycentropus Tube Maker Caddisfly 1
Tribelos Non-Biting Midges 1
Tvetenia Non-Biting Midges 1
Eurylophella Mayfly 1
Gomphidae Clubtail Dragonfly 1
Bezzia Biting Midge 1
Prosimulium Black Fly 1
Orthocladiinae Midge 1
Psilotreta Mortarjoint Casemaker Caddisfly 1
Nemouridae Nemourid Stonefly 1
Ablabesmyia Non-Biting Midge 1
Unniella Non-Biting Midge 1
Cricotopus Non-Biting Midges 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
