MBSS Site Summary for: NANJ-301-A-2008

Site Photos

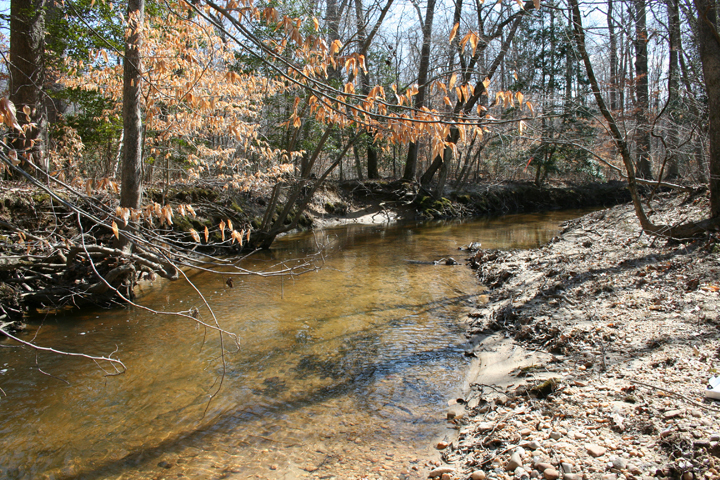

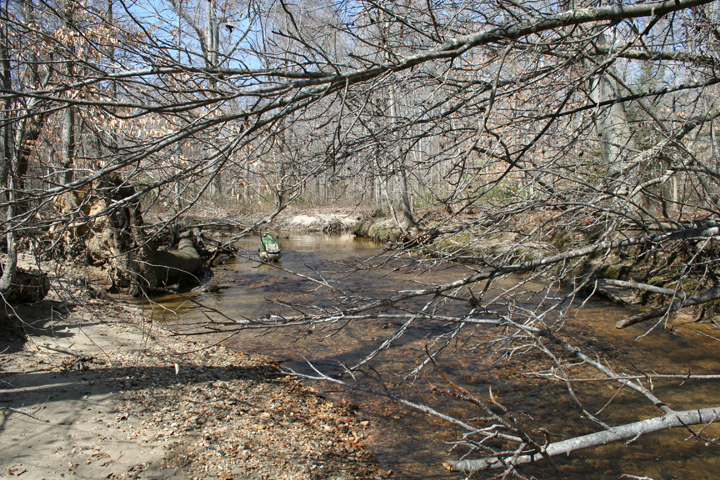

Field photo showing stream conditions at site NANJ-301-A-2008-1 (Opens in a new window) Field photo showing stream conditions at site NANJ-301-A-2008-2 (Opens in a new window)

Located on WARD'S RUN in the Nanjemoy Creek watershed, 8-digit code: 02140110.
This stream was visited in the spring on 3/12/2008 and again in the summer on 7/22/2008.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 4.0 / 5.0
Benthic IBI Good - 4.7 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)

Catchment area 7,438 acres A stream flowing through a densely forested area. An example of a forested stream.
Urban Land Use 2.6 %
Agricultural Land Use 14.2 %
Forested Land Use 79.9 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat

Instream Habitat 16/20 (Optimal)
Epifaunal Substrate 11/20 (Suboptimal)
Velocity/Depth Diversity 14/20 (Suboptimal)
Pool Quality
Pool Extent = 62 meters
16/20 (Optimal)
Riffle Quality
Riffle Extent = 21 meters
12/20 (Suboptimal)
Shading 80 %
Embeddedness 30 %


Stream Water Quality:

Water temperature 23 ° C
Dissolved oxygen (DO) 6 mg/L
pH (lab) 6.38
Conductivity 68 µmho/cm
Alkalinity
(acid neutralizing capacity)
69.5 µeq/L
Dissolved organic carbon (DOC) 4.1382 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health.
Close-up of a mayfly indicator species.

Fish Survey Results:

The following 14 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Rosyside Dace 352
Fallfish 296
Tessellated Darter 28
Redbreast Sunfish 20
Pumpkinseed 14
Bluegill 9
Least Brook Lamprey 9
Margined Madtom 9
American Eel 8
Creek Chubsucker 6
White Sucker 6
Blacknose Dace 5
Sea Lamprey 5
Eastern Mudminnow 4
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:

American Bullfrog
Eastern American Toad
Eastern Box Turtle
Eastern Cricket Frog
Fowler's Toad
Northern Green Frog
Northern Two-Lined Salamander
Stinkpot
Upland Chorus Frog

Crayfish:

Orconectes limosus

Exotic Plants:

Japanese Honeysuckle
Japanese Stiltgrass
Multiflora Rose


Benthic Macroinvertebrates:

Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Haploperla Green Stonefly 16
Oulimnius Riffle Beetle 13
Cheumatopsyche Net-Spinning Caddisfly 7
Parametriocnemus Non-Biting Midges 6
Isoperla Stripetail Stonefly 6
Maccaffertium March Brown And Cahill Mayfly 6
Hexatoma Crane Fly 6
Stempellina 5
Optioservus Riffle Beetle 5
Paraphaenocladius Non-Biting Midges 5
Tanytarsus Non-Biting Midges 4
Psephenus Water Penny 4
Orthocladiinae Midge 2
Strophopteryx Early Brown Stonefly 2
Chimarra Fingernet Caddisfly 2
Prosimulium Black Fly 2
Simulium Black Fly 1
Neophylax Caddisfly 1
Gomphus Clubtail Dragonfly 1
Perlidae Common Stonefly 1
Antocha Crane Fly 1
Rhyacophila Free-Living Caddisfly 1
Lype Net Tube Caddisfly 1
Spirosperma Aquatic Oligochaete Worm 1
Bezzia Biting Midge 1
Eurylophella Mayfly 1
Stenacron Mayfly 1
Acerpenna Tiny Blue-Winged Olive Mayflies 1
Ancyronyx Spider Riffle Beetle 1
Cordulegaster Spiketail Dragonfly 1
Dubiraphia Riffle Beetle 1
Diplectrona Net-Spinning Caddisfly 1
Hydropsyche Net-Spinning Caddisfly 1
Polypedilum Non-Biting Midges 1
Rheotanytarsus Non-Biting Midges 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
