MBSS Site Summary for: NANT-116-R-2001

Site Photos

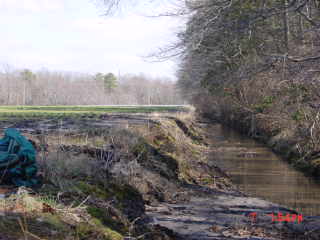

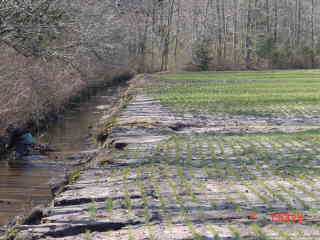

Field photo showing stream conditions at site NANT-116-R-2001-1 (Opens in a new window) Field photo showing stream conditions at site NANT-116-R-2001-2 (Opens in a new window)

Located on CHICONE CR UT1 in the Nanticoke River watershed, 8-digit code: 02130305.
This stream was visited in the spring on 6/7/2001 and again in the summer on 6/5/2001.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 1.0 / 5.0
Benthic IBI Fair - 3.6 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 144 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 0 %
Agricultural Land Use 53 %
Forested Land Use 46 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 2/20 (Poor)
Epifaunal Substrate 3/20 (Poor)
Velocity/Depth Diversity 4/20 (Poor)
Pool Quality
Pool Extent = 75 meters 		4/20 (Poor)
Riffle Quality
Riffle Extent = 0 meters 		0/20 (Poor)
Shading 80 %
Embeddedness 100 %
The embeddedness, a measure of silt on the stream bottom, was 100%. This is very high, and may adversely affect biotic communities.
Several measures of instream habitat were considered 'Poor' at this location.


Stream Water Quality:
Water temperature 18.4 ° C
Dissolved oxygen (DO) 7.5 mg/L
pH (lab) 5.64
Conductivity 240 µmho/cm
Alkalinity
(acid neutralizing capacity) 		47.1 µeq/L
Dissolved organic carbon (DOC) 11.6 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 1 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
No Fish Observed 0
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Fowler's Toad
Southern Leopard Frog

Crayfish:
No crayfish noted.

Exotic Plants:
No exotic plants noted.


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Tipula Crane Fly 6
Conchapelopia Non-Biting Midges 6
Limnephilidae Northern Casemaker Caddisfly 4
Pseudolimnophila Crane Fly 4
Caecidotea Isopod 4
Coenagrionidae Narrowwinged Damselfly 3
Synurella Amphipod 3
Stenonema Flatheaded Mayfly 1
Chironomini Non-Biting Midge 1
Limnophyes Non-Biting Midge 1
Leptoceridae Longhorned Casemaker Caddisfly 1
Cricotopus/Orthocladius Midge 1
Pisidiidae Pill Clam 1
Tanytarsus Non-Biting Midges 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
