MBSS Site Summary for: NEWP-116-R-2001

Site Photos

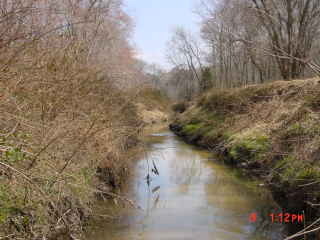

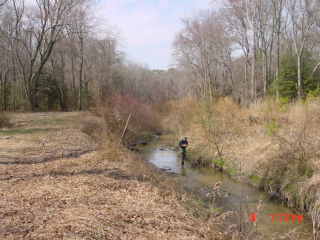

Field photo showing stream conditions at site NEWP-116-R-2001-1 (Opens in a new window) Field photo showing stream conditions at site NEWP-116-R-2001-2 (Opens in a new window)

Located on KITTS BR in the Newport Bay watershed, 8-digit code: 02130105.
This stream was visited in the spring on 3/9/2001 and again in the summer on 6/18/2001.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Fair - 3.0 / 5.0
Benthic IBI Poor - 2.4 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 2,078 acres Cows standing in a stream at a site with high agricultural land use. Cows survey the sampling procedure at this extreme example of a highly agriculturalized site.
Urban Land Use 23 %
Agricultural Land Use 51 %
Forested Land Use 22 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 15/20 (Suboptimal)
Epifaunal Substrate 12/20 (Suboptimal)
Velocity/Depth Diversity 10/20 (Marginal)
Pool Quality
Pool Extent = 40 meters 		10/20 (Marginal)
Riffle Quality
Riffle Extent = 30 meters 		12/20 (Suboptimal)
Shading 20 %
Embeddedness 65 %
The embeddedness, a measure of silt on the stream bottom, was 65%. This is relatively high, and may exclude some biota.


Stream Water Quality:
Water temperature 21.4 ° C
Dissolved oxygen (DO) 7.7 mg/L
pH (lab) 7.75
Conductivity 420 µmho/cm
Alkalinity
(acid neutralizing capacity) 		748.5 µeq/L
Dissolved organic carbon (DOC) 7.1 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 8 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
American Eel 177
Banded Killifish 41
Pumpkinseed 29
Bluegill 28
Eastern Mudminnow 24
Inland Silverside 6
Eastern Mosquitofish 1
Largemouth Bass 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
American Bullfrog

Crayfish:
No crayfish noted.

Exotic Plants:
Japanese Honeysuckle
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Polypedilum Non-Biting Midges 22
Tanytarsus Non-Biting Midges 22
Cricotopus/Orthocladius Midge 14
Tubificidae Aquatic Worm 9
Cricotopus Non-Biting Midges 9
Cryptochironomus Non-Biting Midges 6
Girardia Freshwater Flatworm 3
Glyptotendipes 3
Cheumatopsyche Net-Spinning Caddisfly 3
Conchapelopia Non-Biting Midges 3
Naididae Aquatic Worm 2
Chironomus Non-Biting Midges 2
Phaenopsectra Non-Biting Midges 2
Dubiraphia Riffle Beetle 2
Nyctiophylax 1
Caecidotea Isopod 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
