MBSS Site Summary for: TRAN-106-R-2004

Site Photos

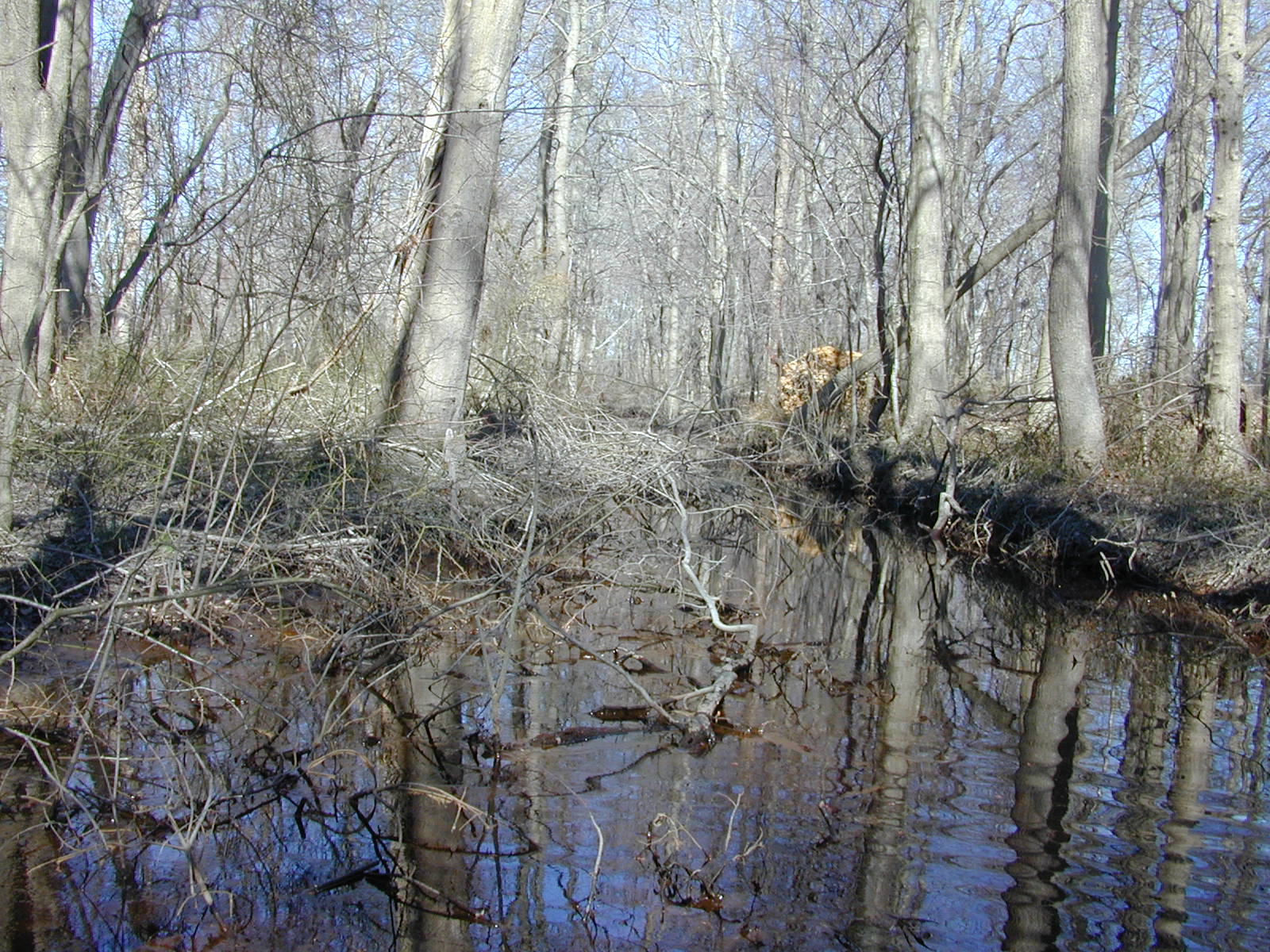

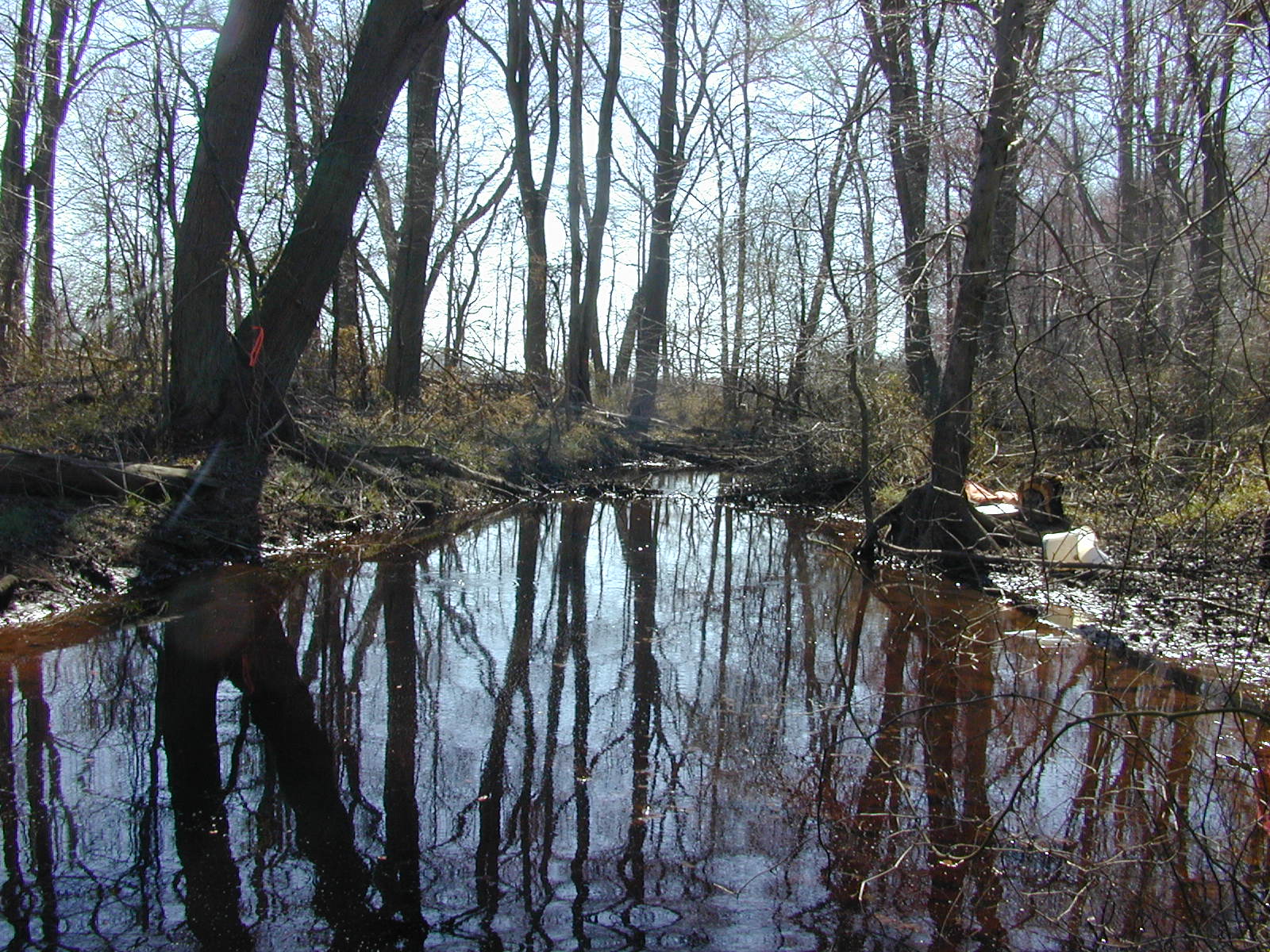

Field photo showing stream conditions at site TRAN-106-R-2004-1 (Opens in a new window) Field photo showing stream conditions at site TRAN-106-R-2004-2 (Opens in a new window)

Located on MIDDLETOWN BR in the Transquaking River watershed, 8-digit code: 02130308.
This stream was visited in the spring on 3/23/2004 and again in the summer on 7/21/2004.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 2.0 / 5.0
Benthic IBI Poor - 1.6 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 420 acres A stream flowing through a densely forested area. An example of a forested stream.
Urban Land Use 0 %
Agricultural Land Use 34 %
Forested Land Use 66 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 5/20 (Poor)
Epifaunal Substrate 4/20 (Poor)
Velocity/Depth Diversity 4/20 (Poor)
Pool Quality
Pool Extent = 75 meters 		9/20 (Marginal)
Riffle Quality
Riffle Extent = 0 meters 		0/20 (Poor)
Shading 97 %
Embeddedness 100 %
The embeddedness, a measure of silt on the stream bottom, was 100%. This is very high, and may adversely affect biotic communities.
Several measures of instream habitat were considered 'Poor' at this location.


Stream Water Quality:
Water temperature 21.5 ° C
Dissolved oxygen (DO) 2.3 mg/L
Dissolved oxygen levels measured in the stream were very low (2.3 mg/L). Many fishes and other aquatic animals cannot tolerate low levels of oxygen in the water.
pH (lab) 5.63
Conductivity 107 µmho/cm
Alkalinity
(acid neutralizing capacity) 		123.2 µeq/L
Dissolved organic carbon (DOC) 15.5 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 5 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Eastern Mudminnow 1104
Brown Bullhead 5
Golden Shiner 2
American Eel 1
Redfin Pickerel 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
Eastern Snapping Turtle
Gray Treefrog
Northern Green Frog
Northern Spring Peeper
Southern Leopard Frog

Crayfish:
Procambarus

Exotic Plants:
Japanese Honeysuckle
Japanese Stiltgrass


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Musculium Fingernail Clam 68
Caecidotea Isopod 29
Hydrobaenus Midge 9
Lumbriculidae Worm 9
Orthocladius Non-Biting Midges 2
Polypedilum Non-Biting Midges 1
Tanypodinae Non-Biting Midges 1
Zavrelimyia Non-Biting Midges 1
Ironoquia Northern Caddisfly 1
Chironomini Non-Biting Midge 1
Chironomus Non-Biting Midges 1
Synurella Amphipod 1
Ceratopogonidae Biting Midge 1
Simuliidae Black Fly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
