MBSS Site Summary for: WEBR-116-R-2001

Site Photos

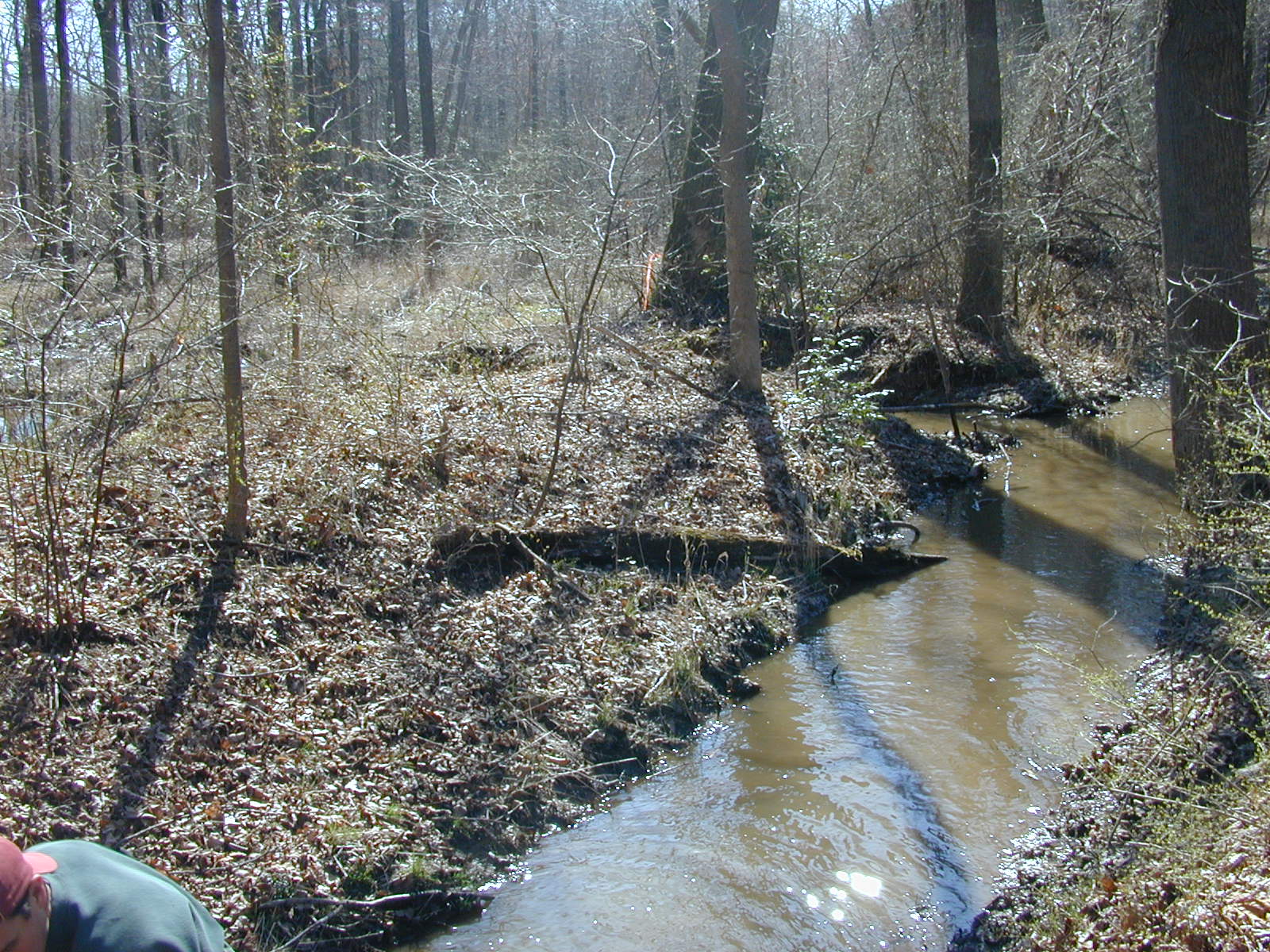

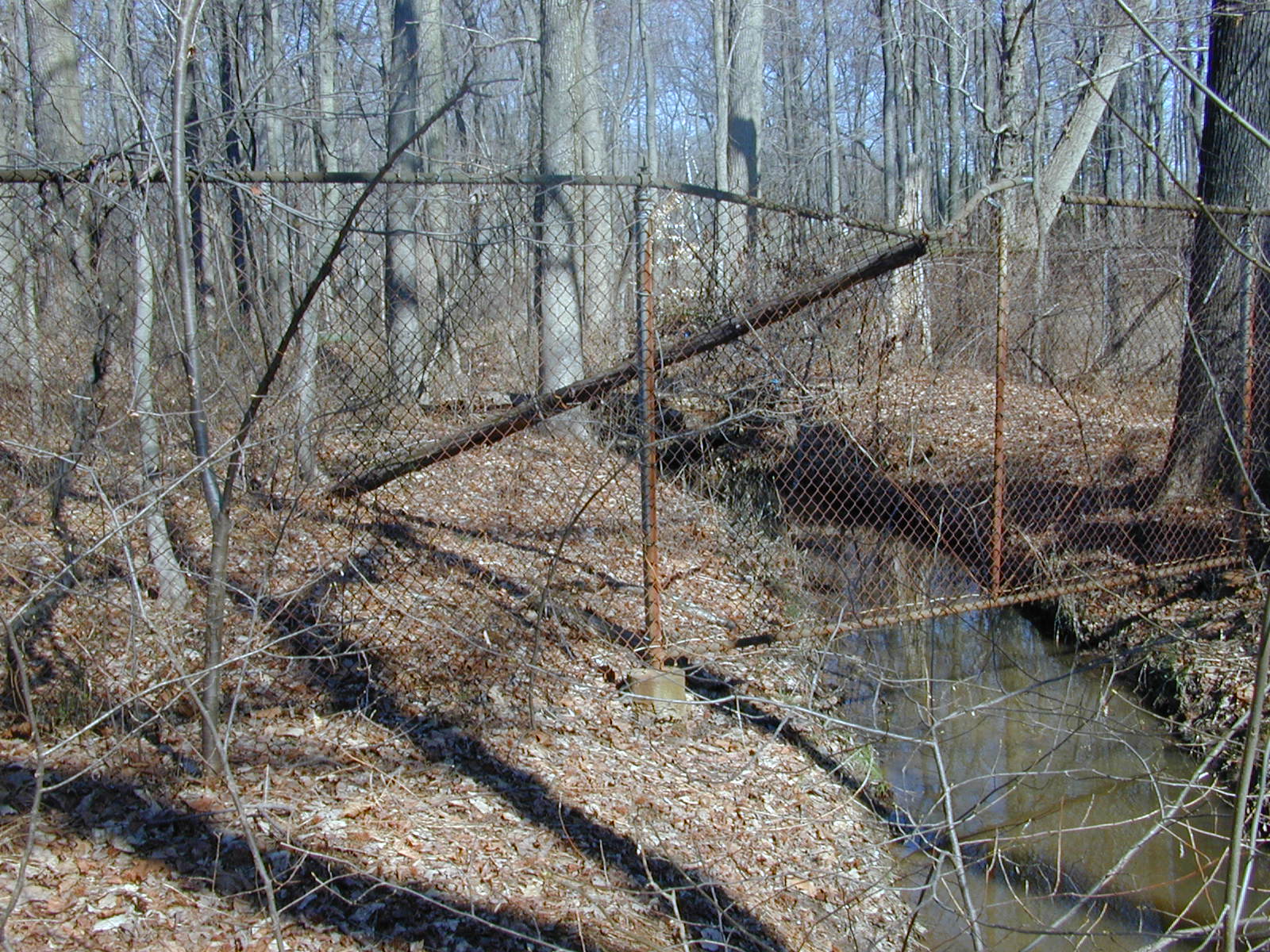

Field photo showing stream conditions at site WEBR-116-R-2001-29 (Opens in a new window) Field photo showing stream conditions at site WEBR-116-R-2001-30 (Opens in a new window) Field photo showing stream conditions at site WEBR-116-R-2001-31 (Opens in a new window) Field photo showing stream conditions at site WEBR-116-R-2001-32 (Opens in a new window) Field photo showing stream conditions at site WEBR-116-R-2001-33 (Opens in a new window) Field photo showing stream conditions at site WEBR-116-R-2001-35 (Opens in a new window) Field photo showing stream conditions at site WEBR-116-R-2001-38 (Opens in a new window) Field photo showing stream conditions at site WEBR-116-R-2001-39 (Opens in a new window) Field photo showing stream conditions at site WEBR-116-R-2001-43 (Opens in a new window) Field photo showing stream conditions at site WEBR-116-R-2001-44 (Opens in a new window)

Located on LOTTSFORD BR in the Western Branch watershed, 8-digit code: 02131103.
This stream was visited in the spring on 3/23/2001 and again in the summer on 6/14/2001.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 4.0 / 5.0
Benthic IBI Poor - 2.4 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 319 acres A highly channelized urban stream with concrete banks. An example of a highly channelized urban stream.
Urban Land Use 32 %
Agricultural Land Use 28 %
Forested Land Use 38 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 13/20 (Suboptimal)
Epifaunal Substrate 10/20 (Marginal)
Velocity/Depth Diversity 12/20 (Suboptimal)
Pool Quality
Pool Extent = 50 meters 		12/20 (Suboptimal)
Riffle Quality
Riffle Extent = 30 meters 		8/20 (Marginal)
Shading 90 %
Embeddedness 100 %
The embeddedness, a measure of silt on the stream bottom, was 100%. This is very high, and may adversely affect biotic communities.


Stream Water Quality:
Water temperature 18.4 ° C
Dissolved oxygen (DO) 7.7 mg/L
pH (lab) 6.28
Conductivity 200 µmho/cm
Alkalinity
(acid neutralizing capacity) 		170.2 µeq/L
Dissolved organic carbon (DOC) 3.6 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 7 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Eastern Mudminnow 86
Redfin Pickerel 10
Tessellated Darter 9
Creek Chubsucker 6
Golden Shiner 5
Pumpkinseed 2
Bluegill 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
American Bullfrog
Eastern American Toad
Eastern Mud Turtle
Northern Green Frog
Northern Two-Lined Salamander
Pickerel Frog

Crayfish:
No crayfish noted.

Exotic Plants:
Japanese Honeysuckle
Mile-A-Minute


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Parametriocnemus Non-Biting Midges 84
Stegopterna Black Fly 23
Polypedilum Non-Biting Midges 12
Rheosmittia Non-Biting Midges 5
Stictochironomus Non-Biting Midge 5
Conchapelopia Non-Biting Midges 4
Tanytarsini Non-Biting Midges 1
Limnephilidae Northern Casemaker Caddisfly 1
Tipula Crane Fly 1
Nigronia Megaloptera (Dark Fishfly) 1
Cheumatopsyche Net-Spinning Caddisfly 1
Ablabesmyia Non-Biting Midge 1
Endochironomus 1
Crangonyx Amphipod 1
Tubificidae Aquatic Worm 1
Simuliidae Black Fly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.
