MBSS Site Summary for: WEBR-201-R-2001

Site Photos

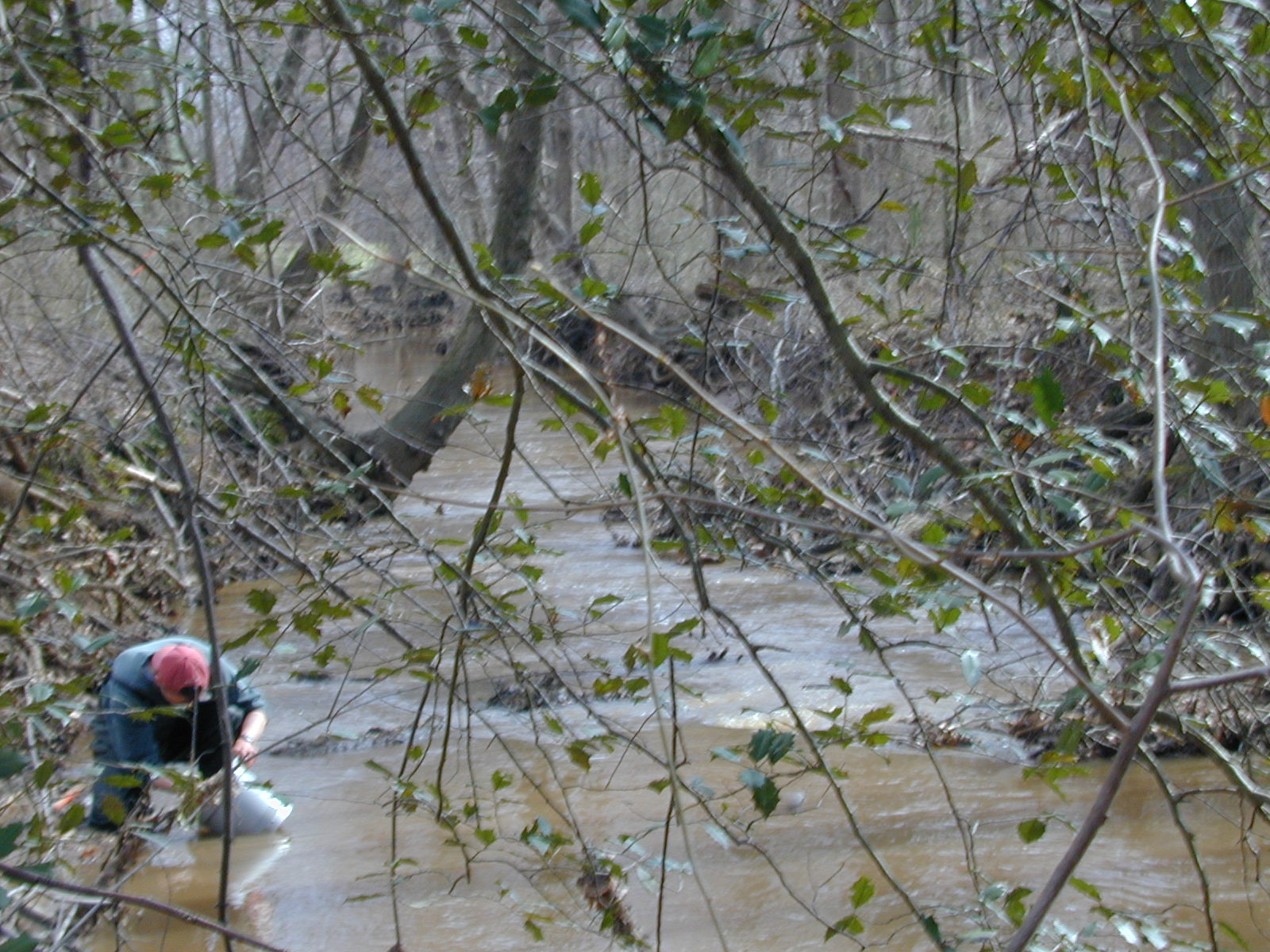

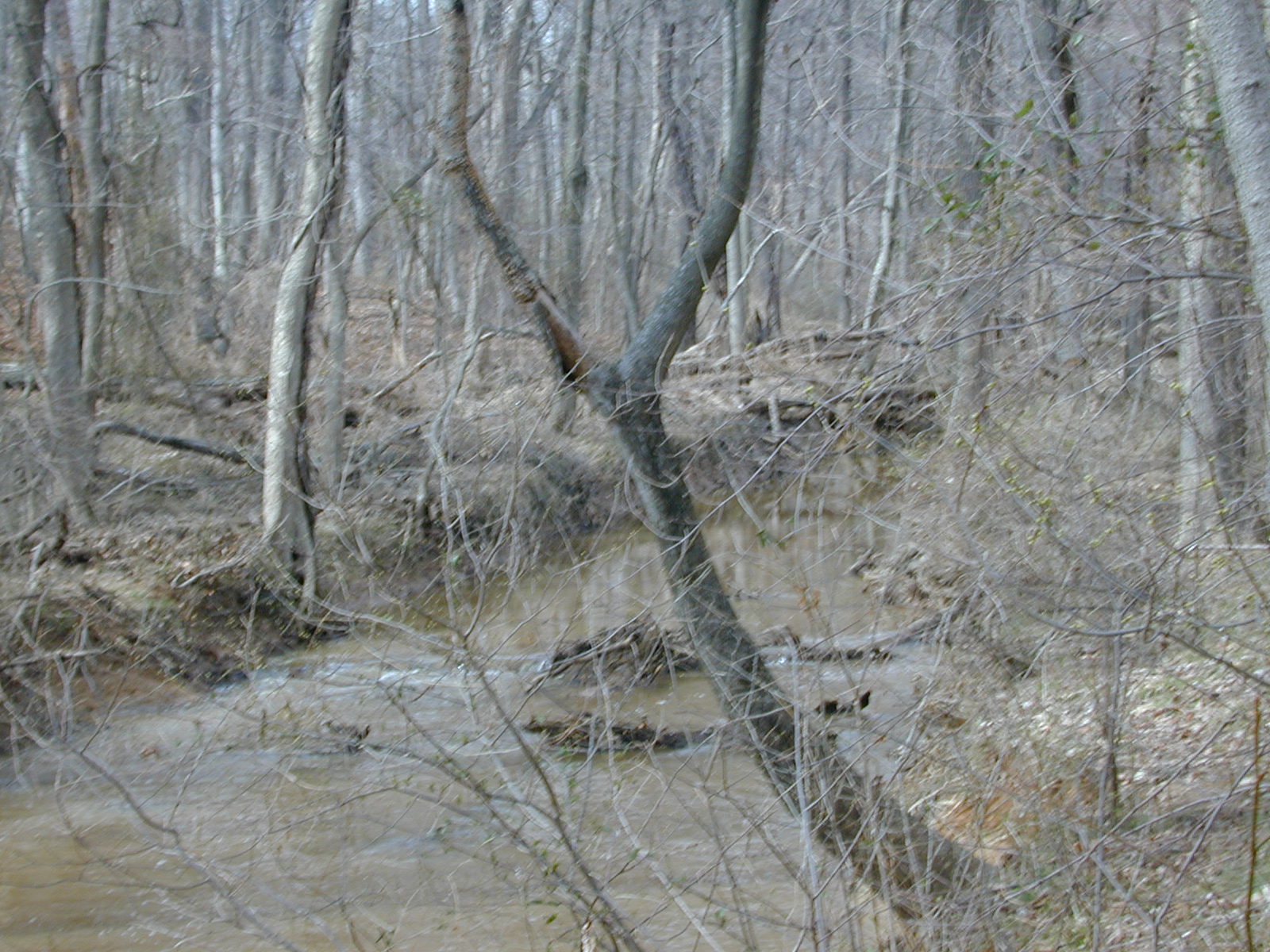

Field photo showing stream conditions at site WEBR-201-R-2001-117 (Opens in a new window) Field photo showing stream conditions at site WEBR-201-R-2001-118 (Opens in a new window)

Located on LOTTSFORD BR in the Western Branch watershed, 8-digit code: 02131103.
This stream was visited in the spring on 3/23/2001 and again in the summer on 7/24/2001.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Good - 5.0 / 5.0
Benthic IBI Fair - 3.6 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)

Catchment area 5,965 acres A highly channelized urban stream with concrete banks. An example of a highly channelized urban stream.
Urban Land Use 53 %
Agricultural Land Use 13 %
Forested Land Use 33 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat

Instream Habitat 11/20 (Suboptimal)
Epifaunal Substrate 9/20 (Marginal)
Velocity/Depth Diversity 7/20 (Marginal)
Pool Quality
Pool Extent = 66 meters
9/20 (Marginal)
Riffle Quality
Riffle Extent = 12 meters
7/20 (Marginal)
Shading 95 %
Embeddedness 35 %


Stream Water Quality:

Water temperature 23.1 ° C
Dissolved oxygen (DO) 3.9 mg/L
Dissolved oxygen levels measured in the stream were very low (3.9 mg/L). Many fishes and other aquatic animals cannot tolerate low levels of oxygen in the water.
pH (lab) 7.05
Conductivity 250 µmho/cm
Alkalinity
(acid neutralizing capacity)
513.7 µeq/L
Dissolved organic carbon (DOC) 8.5 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health.
Close-up of a mayfly indicator species.

Fish Survey Results:

The following 17 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Tessellated Darter 104
Least Brook Lamprey 29
Fallfish 24
Satinfin Shiner 24
Rosyside Dace 14
Swallowtail Shiner 14
Redbreast Sunfish 7
American Eel 6
Creek Chubsucker 6
Sea Lamprey 6
Eastern Mudminnow 5
Bluegill 4
Margined Madtom 4
Chain Pickerel 1
Pumpkinseed 1
Redfin Pickerel 1
White Sucker 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:

Northern Green Frog
Northern Spring Peeper
Wood Frog

Crayfish:

No crayfish noted.

Exotic Plants:

Japanese Honeysuckle
Japanese Stiltgrass
Mile-A-Minute
Multiflora Rose


Benthic Macroinvertebrates:

Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Tubificidae Aquatic Worm 11
Polypedilum Non-Biting Midges 10
Stictochironomus Non-Biting Midge 9
Sphaerium Fingernail Clam 9
Cheumatopsyche Net-Spinning Caddisfly 6
Ablabesmyia Non-Biting Midge 5
Cryptochironomus Non-Biting Midges 4
Limnodrilus Worm 4
Orthocladiinae A Non-Biting Midges 3
Conchapelopia Non-Biting Midges 3
Cricotopus/Orthocladius Midge 3
Tipula Crane Fly 2
Stagnicola Air Breathing Freshwater Snail 2
Stenochironomus European Non-Biting Midge 2
Rheosmittia Non-Biting Midges 2
Tanytarsus Non-Biting Midges 2
Dubiraphia Riffle Beetle 1
Ancyronyx Spider Riffle Beetle 1
Lumbriculidae Worm 1
Tanypodinae Non-Biting Midges 1
Brillia Non-Biting Midges 1
Naididae Aquatic Worm 1
Notonecta 1
Viviparus 1
Tipulidae Cranefly 1
Calopteryx Damselfly 1
Stenelmis Beetle 1
Coenagrionidae Narrowwinged Damselfly 1
Stenonema Flatheaded Mayfly 1
Gordiidae Horsehair Worm 1
Caecidotea Isopod 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
