MBSS Site Summary for: WEBR-359-T-2007

Site Photos

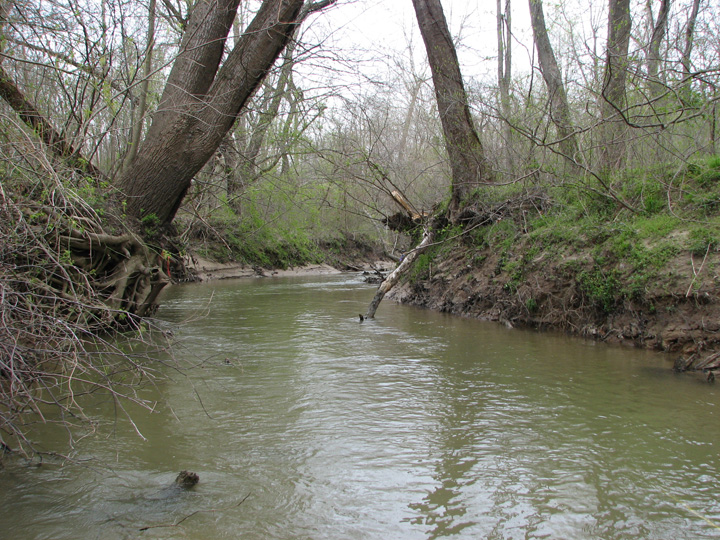

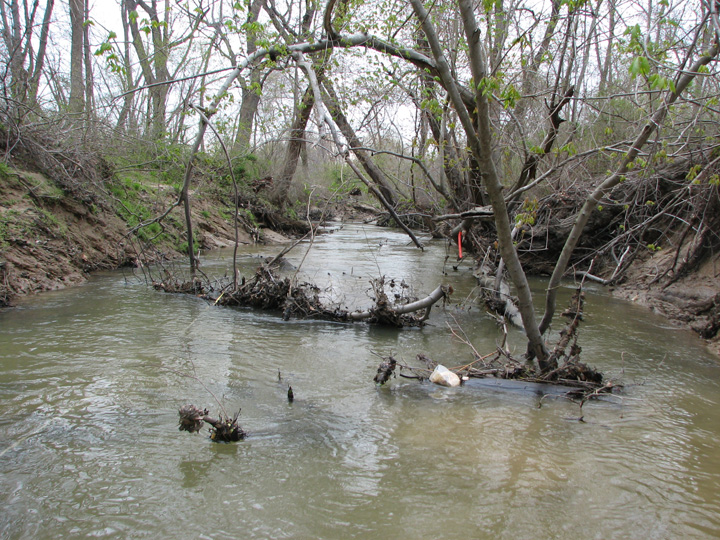

Field photo showing stream conditions at site WEBR-359-T-2007-1 (Opens in a new window) Field photo showing stream conditions at site WEBR-359-T-2007-2 (Opens in a new window)

Located on Charles Branch in the Western Branch watershed, 8-digit code: 02131103.
This stream was visited in the spring on 4/19/2007 and again in the summer on 7/27/2007.

Index of Biotic Integrity (IBI) Results:

An Index of Biotic Integrity (IBI) is a scientific tool used to identify and classify stream health. An IBI associates anthropogenic influences on a stream or with biological condition in the stream, and is formulated using data developed from biosurveys.
Details on the development and application of MBSS IBIs are in this document.
Fish IBI Poor - 2.3 / 5.0
Benthic IBI Poor - 2.7 / 5.0

Land Use

Land use can provide important information for determining stream health.
(Hint: Screen readers will announce definitions; mouse users can hover over dotted text.)
Catchment area 6,293 acres A stream flowing through a densely forested area. An example of a forested stream.
Urban Land Use 16.2 %
Agricultural Land Use 30.2 %
Forested Land Use 52.9 %


Stream showing woody debris, logs, and rocky substrate.
An example of woody debris in a stream.

Physical Stream Habitat
Instream Habitat 7/20 (Marginal)
Epifaunal Substrate 4/20 (Poor)
Velocity/Depth Diversity 2/20 (Poor)
Pool Quality
Pool Extent = 75 meters 		6/20 (Marginal)
Riffle Quality
Riffle Extent = 0 meters 		0/20 (Poor)
Shading 85 %
Embeddedness 100 %
The embeddedness, a measure of silt on the stream bottom, was 100%. This is very high, and may adversely affect biotic communities.
Several measures of instream habitat were considered 'Poor' at this location.


Stream Water Quality:
Water temperature 16.1 ° C
Dissolved oxygen (DO) 0.4 mg/L
Dissolved oxygen levels measured in the stream were very low (0.4 mg/L). Many fishes and other aquatic animals cannot tolerate low levels of oxygen in the water.
pH (lab) 6.83
Conductivity 362 µmho/cm
Alkalinity
(acid neutralizing capacity) 		244.4 µeq/L
Dissolved organic carbon (DOC) 2.6038 mg/L

Biological Stream Condition:

Surveys of the organisms living within a stream can give indications of stream health. Species richness, or the number of different species present, as well as indicator species (species whose presence, absence or abundance can serve as a measure of environmental conditions) are informative for stream health. 		Close-up of a mayfly indicator species.

Fish Survey Results:
The following 5 fish species were collected.
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Common name Count
Tessellated Darter 13
Eastern Mudminnow 5
White Sucker 3
American Eel 2
Blacknose Dace 1
Biologists sampling fish communities.
Electrofishing to sample fish communities.

Amphibians and Reptiles:
American Bullfrog
Eastern American Toad
Eastern Cricket Frog
Fowler's Toad
Northern Green Frog
Northern Spring Peeper
Northern Two-Lined Salamander
Southern Leopard Frog

Crayfish:
No crayfish noted.

Exotic Plants:
Japanese Honeysuckle
Japanese Stiltgrass
Multiflora Rose


Benthic Macroinvertebrates:
Sensitive taxa: Green, Tolerant: Red, Intermediate: Gold.
Genus/Family Common Name Count
Hydrobaenus Midge 47
Polypedilum Non-Biting Midges 24
Orthocladiinae Midge 5
Orthocladius Non-Biting Midges 5
Simulium Black Fly 3
Acerpenna Tiny Blue-Winged Olive Mayflies 2
Limnodrilus Worm 1
Tipula Crane Fly 1
Haploperla Green Stonefly 1
Gammarus Amphipod 1
Chelifera Aquatic Dance Fly 1
Tubificidae Aquatic Worm 1
Cheumatopsyche Net-Spinning Caddisfly 1
Dytiscidae Predaceous Diving Beetle 1
Isoperla Stripetail Stonefly 1
Kick net sampling for macroinvertebrates.
Sampling with a kick net.

Information disclaimer: The information and data on this page is for guidance and general planning purposes only. It should not be used to make decisions on specific matters.
